Description

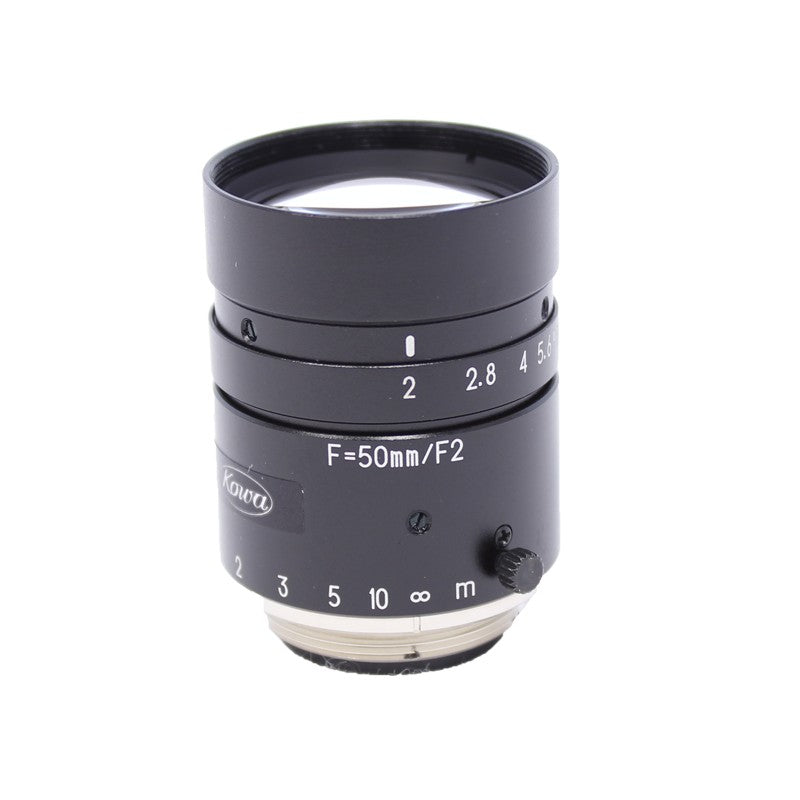

Kowa LM50JC
The 2/3″ JC lens series has a longstanding tradition of providing support to a wide range of vision systems. These lenses have low excellent resolution, and with focal lengths ranging from 6mm to 100mm, the JC lenses can be used in a wide variety of applications.
LM50JC Technical Specifications:
Product Line / Series | JC |
Lens Type | Fixed Focal Length |
IP Rating | Not Specified |
Focal Length | 50 mm |
ƒ/N | ƒ/2 - ƒ/22 |
Image Circle Diameter | 11 mm |
Image Size Dimensions | 8.8 mm x 6.6 mm |
Imager Format | 2/3″ |
Light Spectrum | Visible |
Resolution (MP) | 2 |
Resolution (Pixel Size) | 5 μm |
Resolution (Line Pairs per mm @ Center) | 100 |
Resolution (Line Pairs per mm @ Corner) | 60 |
Weight | 90 Grams |
Mount | C-Mount |
Filter Thread | M30.5-0.5 |
Minimum Object Distance | 5400 mm |
Magnification | 0.1× |
Minimum Object Distance with 1mm Ring | 422 mm |
Minimum Object Distance with 5mm Ring | 264 mm |
Minimum Object Distance with 10mm Ring | 183 mm |
Minimum Object Distance with 20mm Ring | 117 mm |
Magnification with 1mm Ring | 0.12× |
Magnification with 5mm Ring | 20× |
Magnification with 10mm Ring | 0.3× |
Magnification with 20mm Ring | 0.5× |
Front Diameter | 24.6 mm |
Rear Effective Diameter | 15.4 mm |
Focus Control | Manual |
Iris Control | Manual |
Focus Range | 0.5 m - ∞ |
Back Focal Length | 17.2 mm in air |
Operating Temperature Range | -10 to +50 °C |
Storage Temperature Range | -20 to +60 °C |
Dimensions | 32 × 32 × 39.5 mm |
Shooting Range at MOD | 85.0(H)×63.6(V) |
TV Distortion (%) | −0.1 |
Angle of View @ 1/1.8″ | 8.2° × 6.2° |
Angle of View @ 1/2″ | 7.3° × 5.5° |
Angle of View @ 2/3″ | 10.1° × 7.6° |
