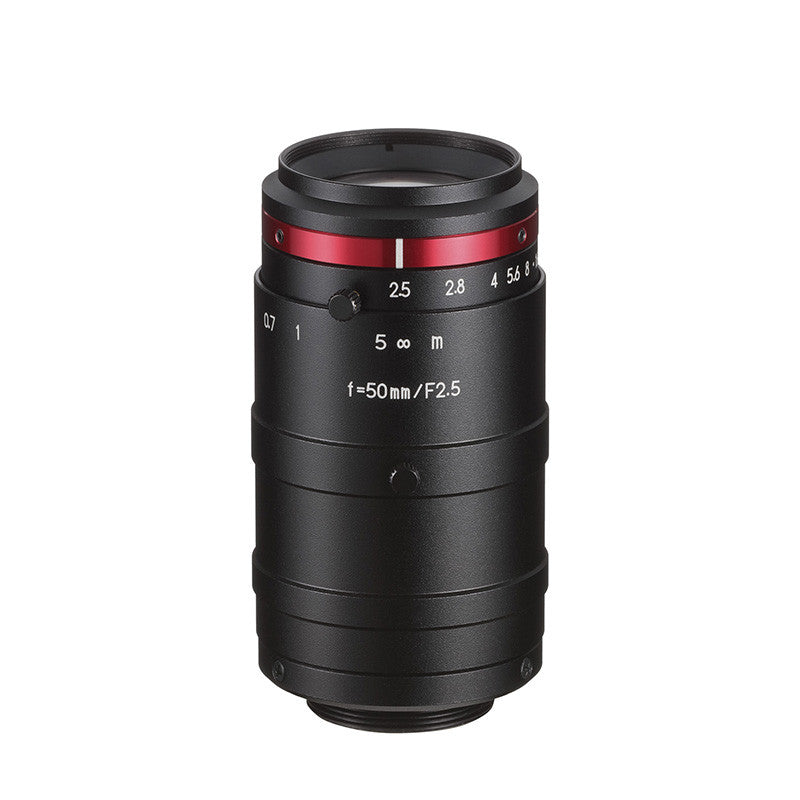

Kowa LM50HC-VIS-SW 50 mm 1″ f/2.5 - f/16 C-Mount Fixed Focal Length Lens

Save $1,331.00
KowaSKU: LM50HC-VIS-SW
Lead Time: Not Specified

Price:
Sale price$3,509.00 USD Regular price$4,840.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us.

Description

This price includes tariffs, based on the applicable tariff charges. Updated 05/30/25, 06/04/25, 6/24/25, and 10/23/25. Pricing is subject to change and may fluctuate.

Kowa LM50HC-VIS-SW

Kowa's 1″ C-Mount HC-VIS-SW lens series maximizes high-resolution imaging from the visible to SWIR wavelength range. With IR-correction and the ability to perform well at 450nm to 2,000nm, these lenses are ideal for various applications such as high-end surveillance, machine vision inspection, pro+uce sorting, quality control, anti-counterfeiting, and more.

LM50HC-VIS-SW Technical Specifications:

Product Line / Series HC-VIS-SW
Lens Type Fixed Focal Length
IP Rating Not Specified
Focal Length 50 mm
ƒ/N ƒ/2.5 - ƒ/16
Image Circle Diameter 16 mm
Image Size Dimensions 12.8 mm x 9.6 mm
Imager Format 1″
Light Spectrum Visible, SWIR
Resolution (MP) 12
Resolution (Pixel Size) 3.1 μm
Resolution (Line Pairs per mm @ Center) 160
Resolution (Line Pairs per mm @ Corner) 100
Weight 155 Grams
Mount C-Mount
Filter Thread M30.5-0.5
Minimum Object Distance 500 mm
Magnification 0.101×
Minimum Object Distance with 1mm Ring 418 mm
Minimum Object Distance with 5mm Ring 252 mm
Minimum Object Distance with 10mm Ring 168 mm
Minimum Object Distance with 20mm Ring 102 mm
Magnification with 1mm Ring 0.121×
Magnification with 5mm Ring 0.2×
Magnification with 10mm Ring 0.301×
Magnification with 20mm Ring 0.497×
Front Diameter 23.1 mm
Rear Effective Diameter 17.7 mm
Focus Control Manual
Iris Control Manual
Focus Range 0.5 m - ∞
Back Focal Length 34.9 mm in air
Operating Temperature Range -10 to +50 °C
Storage Temperature Range -20 to +60 °C
Dimensions 39 × 39 × 5×71 mm
Shooting Range at MOD 127.0(H)×95.0(V)
TV Distortion (%) -0.11
Angle of View @ 1/1.8″ 8.2° × 6.2°
Angle of View @ 2/3″ 10.0° × 7.6°
Angle of View @ 1″ 14.6° × 11.0°
