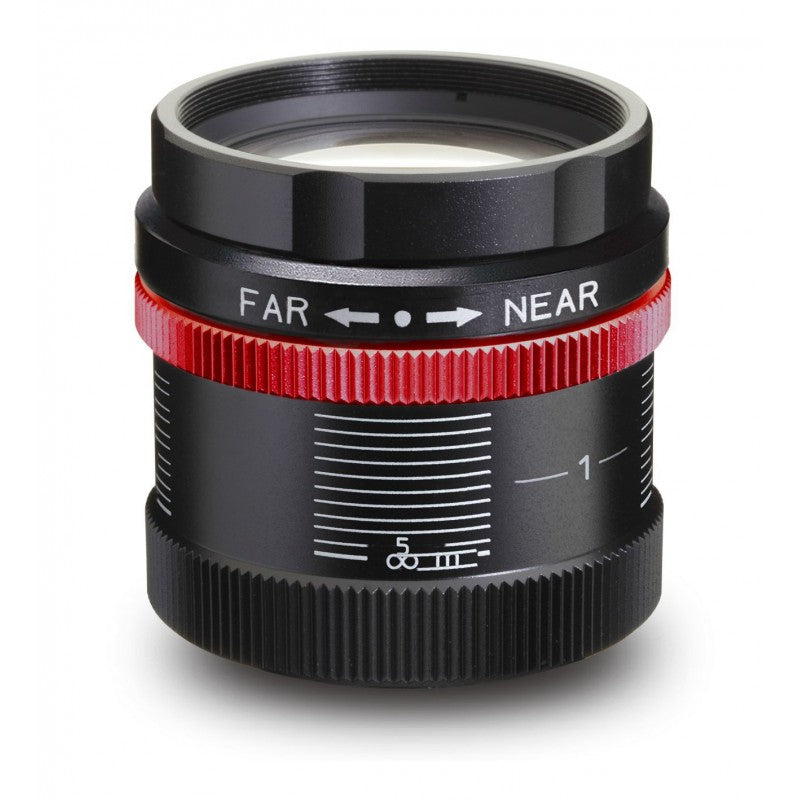

Kowa LM50HC-V 50 mm 1″ f/1.4 f/2.8 f/4 f/8 C-Mount Fixed Focal Length Lens

Save $169.00
KowaSKU: LM50HC-V
Lead Time: Not Specified

Price:
Sale price$447.00 USD Regular price$616.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us.

Description

This price includes tariffs, based on the applicable tariff charges. Updated 05/30/25, 06/04/25, 6/24/25, and 10/23/25. Pricing is subject to change and may fluctuate.

Kowa LM50HC-V

Kowa's HC-V series is made for use in high-vibration and high-shock environments. With a design based on Kowa's standard 1-inch HC lenses, this ruggedized megapixel lens series is ideal for applications that require increased durability and high optical performance. All internal glass elements of this series are glued. A two-way reversible nut is utilized to tightly lock the focus adjustment ring. Interchangeable iris plates, which can be glued, are used to select the F-stop.

LM50HC-V Technical Specifications:

Product Line / Series HC-V
Lens Type Fixed Focal Length
IP Rating Not Specified
Focal Length 50 mm
ƒ/N ƒ/1.4 ƒ/2.8 ƒ/4 ƒ/8
Image Circle Diameter 16 mm
Image Size Dimensions 12.8 mm x 9.6 mm
Imager Format 1″
Light Spectrum Visible
Resolution (MP) 5
Resolution (Pixel Size) 5 μm
Resolution (Line Pairs per mm @ Center) 120
Resolution (Line Pairs per mm @ Corner) 80
Weight 170 Grams
Mount C-Mount
Filter Thread M40.5-0.5
Minimum Object Distance 500 mm
Magnification Not Specified
Front Diameter 35 mm
Rear Effective Diameter 15.5 mm
Focus Control Manual
Iris Control Manual
Focus Range 0.5 m - ∞
Back Focal Length 14.8 mm in air
Operating Temperature Range -10 to +50 °C
Storage Temperature Range -20 to +60 °C
Dimensions 50 × 50 × 48 mm
Shooting Range at MOD 121.8(H)×91.3(V)
TV Distortion (%) 0.05
Angle of View @ 1/1.8″ 8.2° × 6.2°
Angle of View @ 2/3″ 10.0° × 7.5°
Angle of View @ 1″ 14.5° × 10.8°
