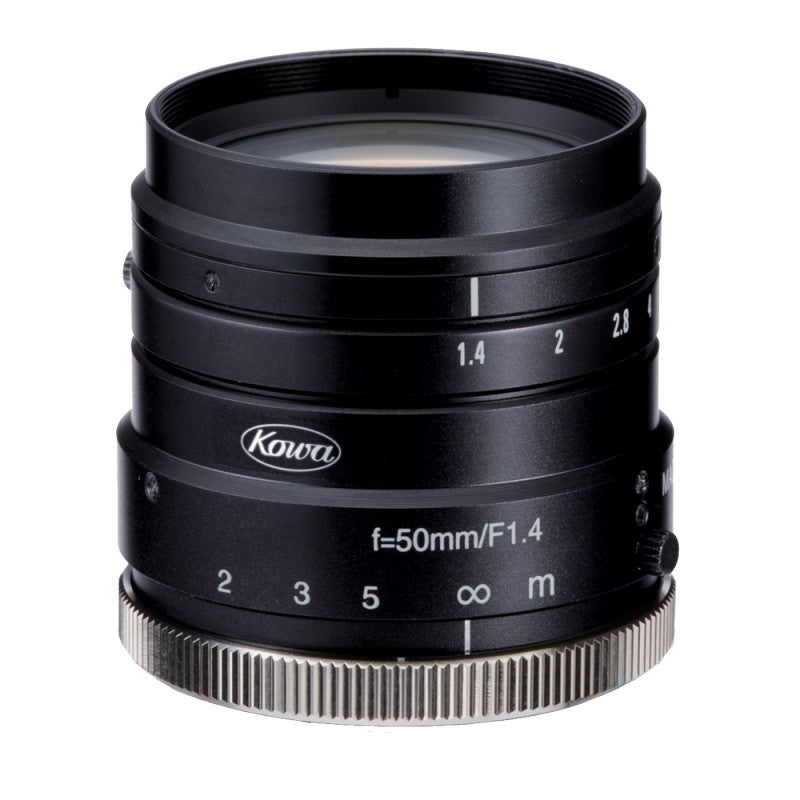

Kowa LM50HC-SW 50 mm 1″ f/1.4 - f/16 C-Mount Fixed Focal Length Lens

Save $576.70
KowaSKU: LM50HC-SW
Lead Time: Not Specified

Price:
Sale price$1,153.30 USD Regular price$1,730.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

Kowa LM50HC-SW

Incorporating Kowa's special coating technology, the 1″ format HC-SW series maintains high transmission from 800nm to 2000nm. These lenses are designed for NIR and Short Wavelength Infrared (SWIR) applications. These IR-Corrected lenses are designed to produce crisp and bright images, no matter how dark or bright the surrounding environment may be.

LM50HC-SW Technical Specifications:

Product Line / Series HC-SW
Lens Type Fixed Focal Length
IP Rating Not Specified
Focal Length 50 mm
ƒ/N ƒ/1.4 - ƒ/16
Image Circle Diameter 16 mm
Image Size Dimensions 12.8 mm x 9.6 mm
Imager Format 1″
Light Spectrum SWIR
Resolution (MP) Not Specified
Resolution (Pixel Size) Not Specified
Resolution (Line Pairs per mm @ Center) 120
Resolution (Line Pairs per mm @ Corner) 80
Weight 210 Grams
Mount C-Mount
Filter Thread M40.5-0.5
Minimum Object Distance 500 mm
Magnification Not Specified
Front Diameter 35 mm
Rear Effective Diameter 15.5 mm
Focus Control Manual
Iris Control Manual
Focus Range 0.5 m - ∞
Back Focal Length 14.8 mm in air
Operating Temperature Range -10 to +50 °C
Storage Temperature Range -20 to +60 °C
Dimensions 49 × 49 × 48 mm
Shooting Range at MOD 121.8(H)×91.3(V)
TV Distortion (%) 0.05
Angle of View @ 1/1.8″ 8.2° × 6.2°
Angle of View @ 2/3″ 10.0° × 7.5°
Angle of View @ 1″ 14.5° × 10.8°
