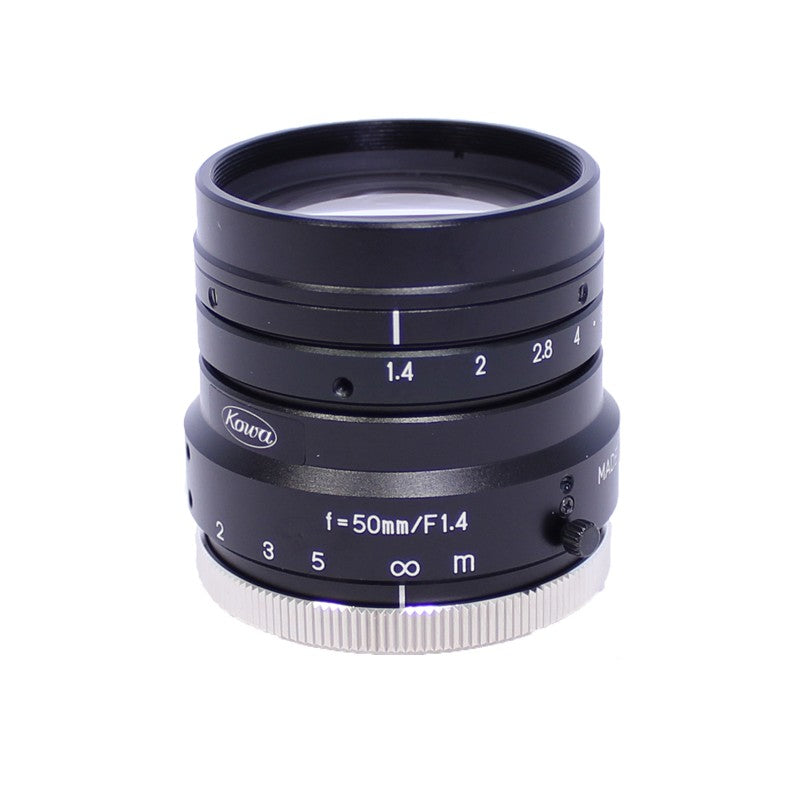

Kowa LM50HC 50 mm 1″ f/1.4 - f/16 C-Mount Fixed Focal Length Lens

Save $155.00
KowaSKU: LM50HC
Lead Time: Not Specified

Price:
Sale price$287.00 USD Regular price$442.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

This price includes tariffs, based on the applicable tariff charges. This change is effective originally as of 05/30/25. Updated 06/04/25, 6/24/25. Pricing is subject to change and may fluctuate.

Kowa LM50HC

Kowa's HC lenses are designed for 1″ megapixel cameras. They have low distortion, excellent light transmission, and can be used with smaller format size cameras.

LM50HC Technical Specifications:

Product Line / Series HC
Lens Type Fixed Focal Length
IP Rating Not Specified
Focal Length 50 mm
ƒ/N ƒ/1.4 - ƒ/16
Image Circle Diameter 16 mm
Image Size Dimensions 12.8 mm x 9.6 mm
Imager Format 1″
Light Spectrum Visible
Resolution (MP) 5
Resolution (Pixel Size) 5 μm
Resolution (Line Pairs per mm @ Center) 120
Resolution (Line Pairs per mm @ Corner) 80
Weight 210 Grams
Mount C-Mount
Filter Thread M40-0.5
Minimum Object Distance 500 mm
Magnification 0.11×
Minimum Object Distance with 1mm Ring 424 mm
Minimum Object Distance with 5mm Ring 269 mm
Minimum Object Distance with 10mm Ring 189 mm
Minimum Object Distance with 20mm Ring 124 mm
Magnification with 1mm Ring 0.13×
Magnification with 5mm Ring 0.2×
Magnification with 10mm Ring 0.3×
Magnification with 20mm Ring 0.5×
Front Diameter 35 mm
Rear Effective Diameter 15.5 mm
Focus Control Manual
Iris Control Manual
Focus Range 0.5 m - ∞
Back Focal Length 14.8 mm in air
Operating Temperature Range -10 to +50 °C
Storage Temperature Range -20 to +60 °C
Dimensions 49 × 49 × 48 mm
Shooting Range at MOD 121.8(H)×91.3(V)
TV Distortion (%) 0.05
Angle of View @ 1/1.8″ 8.2° × 6.2°
Angle of View @ 2/3″ 10.0° × 7.5°
Angle of View @ 1″ 14.5° × 10.8°
