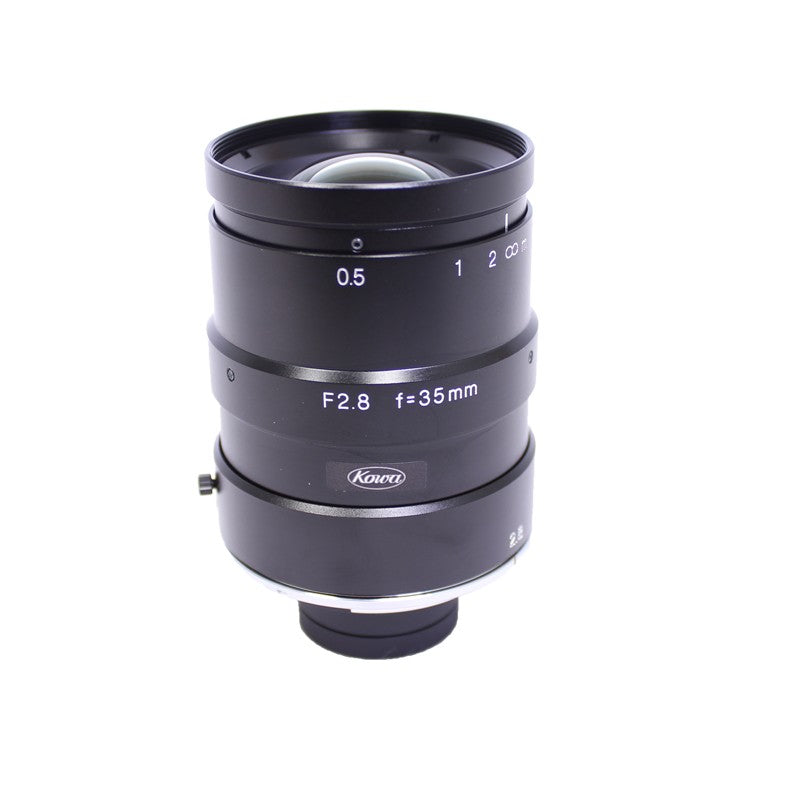

Kowa LM35LF-48

Kowa's 4k line scan lenses are ideal for high resolution, low distortion, and close distance surface inspection using line scan cameras. This series offeres six lens options with focal lengths ranging from 28mm to 50mm.

LM35LF-48 Technical Specifications:

Product Line / Series LF
Lens Type Fixed Focal Length, Line Scan
IP Rating Not Specified
Focal Length 35 mm
ƒ/N ƒ/2.8 - ƒ/22
Image Circle Diameter 23 mm
Image Size Dimensions 18.4 mm x 13.8 mm
Imager Format 43.3 mm
Light Spectrum Visible
Resolution (MP) Not Specified
Resolution (Pixel Size) 7.5 μm
Resolution (Line Pairs per mm @ Center) 160
Resolution (Line Pairs per mm @ Corner) 63
Weight 430 Grams
Mount TFL-II Mount
Filter Thread M52-0.75
Minimum Object Distance 260 mm
Front Diameter 37.7 mm
Rear Effective Diameter 24.6 mm
Focus Control Manual
Iris Control Manual
Focus Range 0.4 m - ∞
Back Focal Length Not Specified
Operating Temperature Range -10 to +50 °C
Storage Temperature Range -20 to +60 °C
Dimensions 57.5 × 57.5 × 100 mm
Shooting Range at MOD 239.9×160.3
TV Distortion (%) −0.15
Angle of View @ 1″ 20.3° × 15.3°
Angle of View @ 4/3″ 28.9° × 21.8°
Angle of View @ Full Size 53.7° × 37.2°
