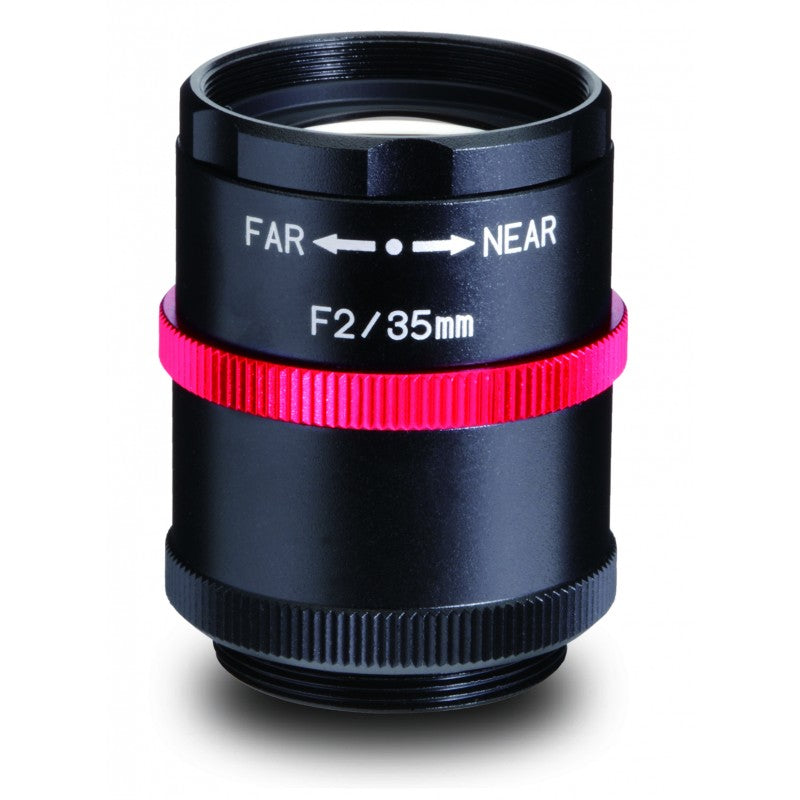

Kowa LM35JCM-V
The Kowa JCM-V series is made for use in high-vibration and high-shock environments. With a design based on Kowa's standard 2/3″ JCM lenses, this new ruggedized megapixel lens series is ideal for applications that require increased durability and high optical performance.
LM35JCM-V Technical Specifications:
Product Line / Series | JCM-V |
Lens Type | Fixed Focal Length |
IP Rating | Not Specified |
Focal Length | 35 mm |
ƒ/N | ƒ/2 - ƒ/16 |
Image Circle Diameter | 11 mm |
Image Size Dimensions | 8.8 mm x 6.6 mm |
Imager Format | 2/3″ |
Light Spectrum | Visible |
Resolution (MP) | 2 |
Resolution (Pixel Size) | 4.5 μm |
Resolution (Line Pairs per mm @ Center) | 120 |
Resolution (Line Pairs per mm @ Corner) | 100 |
Weight | 72.5 Grams |
Mount | C-Mount |
Filter Thread | M27-0.5 |
Minimum Object Distance | 200 mm |
Front Diameter | 21.5 mm |
Rear Effective Diameter | 11.7 mm |
Focus Control | Manual |
Iris Control | Manual |
Focus Range | 0.2 m - ∞ |
Back Focal Length | 20.1 mm in air |
Operating Temperature Range | -10 to +50 °C |
Storage Temperature Range | -20 to +60 °C |
Dimensions | 33 × 33 × 38.8 mm |
Shooting Range at MOD | 47.9(H)×35.8(V) |
TV Distortion (%) | −0.2 |
Angle of View @ 1/1.8″ | 11.8° × 8.8° |
Angle of View @ 1/2″ | 10.5° × 7.9° |
Angle of View @ 2/3″ | 14.4° × 10.8° |
