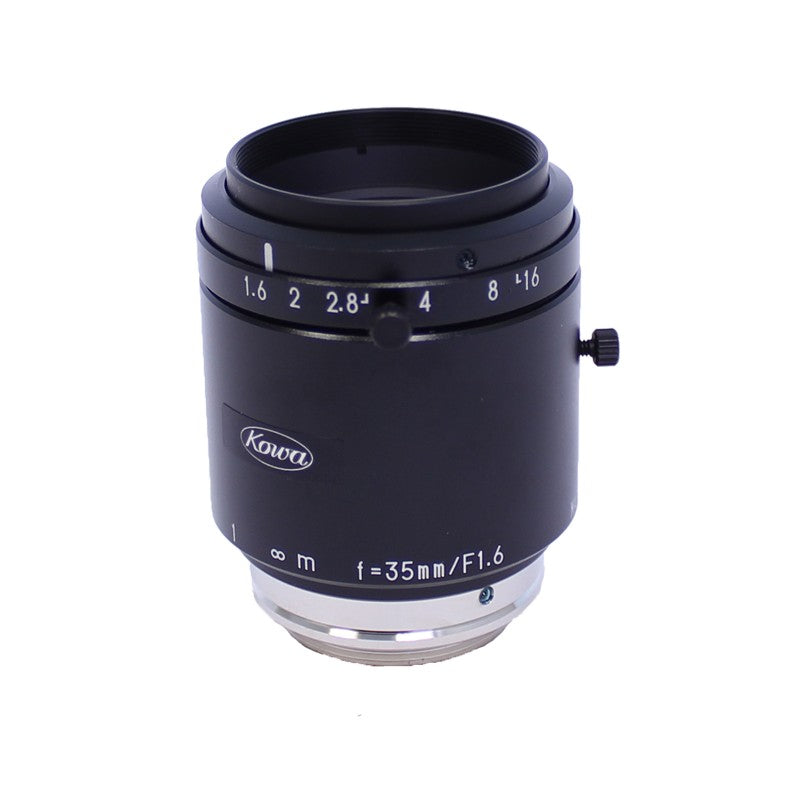

Kowa LM35JC5M2 35 mm 2/3″ f/1.6 - f/16 C-Mount Fixed Focal Length Lens

Save $192.00
KowaSKU: LM35JC5M2
Lead Time: Not Specified

Price:
Sale price$508.00 USD Regular price$700.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us.

Description

This price includes tariffs, based on the applicable tariff charges. Updated 05/30/25, 06/04/25, 6/24/25, and 10/23/25. Pricing is subject to change and may fluctuate.

Kowa LM35JC5M2

Kowa's JC5M-IR lenses series iareIR corrected lens with broadband coating. These lenses showcase low distortion and are perfect for high-end applications that require 5-megapixel cameras.

LM35JC5M2 Technical Specifications:

Product Line / Series JC5M2
Lens Type Fixed Focal Length
IP Rating Not Specified
Focal Length 35 mm
ƒ/N ƒ/1.6 - ƒ/16
Image Circle Diameter 11 mm
Image Size Dimensions 8.8 mm x 6.6 mm
Imager Format 2/3″
Light Spectrum Visible
Resolution (MP) 5
Resolution (Pixel Size) 3.5 μm
Resolution (Line Pairs per mm @ Center) 160
Resolution (Line Pairs per mm @ Corner) 125
Weight 120 Grams
Mount C-Mount
Filter Thread M30.5-0.5
Minimum Object Distance 180 mm
Magnification 0.209×
Minimum Object Distance with 1mm Ring 160 mm
Minimum Object Distance with 5mm Ring 109 mm
Minimum Object Distance with 10mm Ring 78 mm
Minimum Object Distance with 20mm Ring 79 mm
Magnification with 1mm Ring 0.235×
Magnification with 5mm Ring 0.341×
Magnification with 10mm Ring 0.47×
Magnification with 20mm Ring 0.728×
Front Diameter 23.5 mm
Rear Effective Diameter 14.5 mm
Focus Control Manual
Iris Control Manual
Focus Range 0.18 m - ∞
Back Focal Length 12.2 mm in air
Operating Temperature Range -10 to +50 °C
Storage Temperature Range -20 to +60 °C
Dimensions 38 × 38 × 5×48 mm
Shooting Range at MOD 42.1(H)×31.6(V)
TV Distortion (%) −0.03
Angle of View @ 1/1.8″ 11.7° × 8.8°
Angle of View @ 1/2″ 10.4° × 7.8°
Angle of View @ 2/3″ 14.3° × 10.8°
