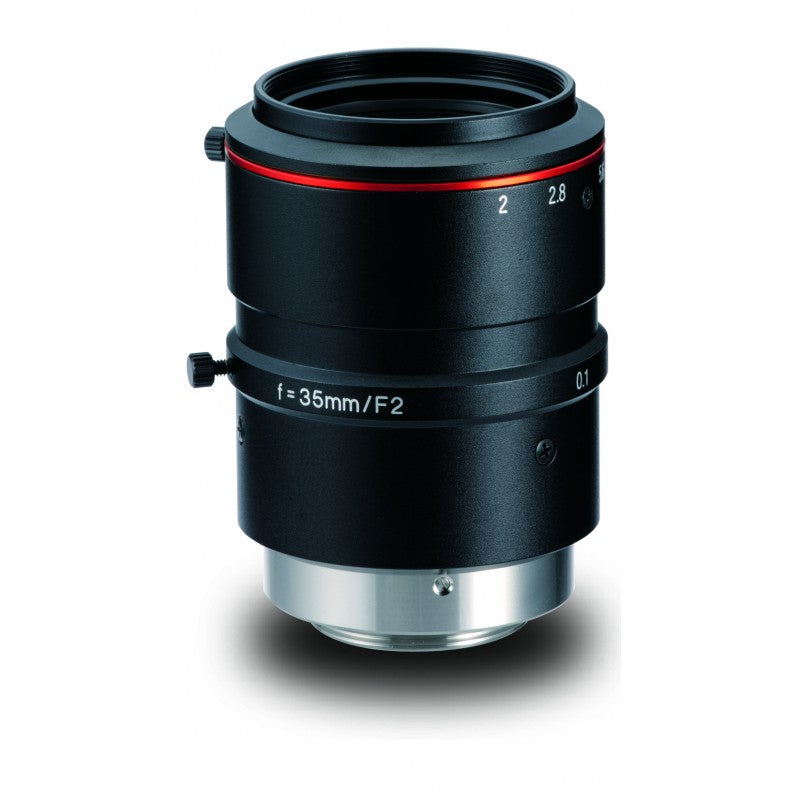

Kowa LM35JC10M 35 mm 2/3″ f/2 - f/16 C-Mount Fixed Focal Length Lens

Save $353.00
KowaSKU: LM35JC10M
Lead Time: Not Specified

Price:
Sale price$931.00 USD Regular price$1,284.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us.

Description

This price includes tariffs, based on the applicable tariff charges. Updated 05/30/25, 06/04/25, 6/24/25, and 10/23/25. Pricing is subject to change and may fluctuate.

Kowa LM35JC10M

The 2/3″ 10 megapixel JC10M lens series provides 200lp/mm resolution and low distortion to maximize performance for high-end applications. Incorporating Kowa's broadband coating and floating mechanism design, the JC10M lens series dramatically reduces chromatic aberration at any distance and maintains a high transmission from visible to NIR.

LM35JC10M Technical Specifications:

Product Line / Series JC10M
Lens Type Fixed Focal Length
IP Rating Not Specified
Focal Length 35 mm
ƒ/N ƒ/2 - ƒ/16
Image Circle Diameter 11 mm
Image Size Dimensions 8.8 mm x 6.6 mm
Imager Format 2/3″
Light Spectrum Visible
Resolution (MP) 10
Resolution (Pixel Size) 2.5 μm
Resolution (Line Pairs per mm @ Center) 200
Resolution (Line Pairs per mm @ Corner) 160
Weight 160 Grams
Mount C-Mount
Filter Thread M34-0.5
Minimum Object Distance 100 mm
Magnification 0.38×
Minimum Object Distance with 1mm Ring 85 mm
Minimum Object Distance with 5mm Ring 65 mm
Minimum Object Distance with 10mm Ring 49 mm
Minimum Object Distance with 20mm Ring 31 mm
Magnification with 1mm Ring 0.4×
Magnification with 5mm Ring 0.5×
Magnification with 10mm Ring 0.62×
Magnification with 20mm Ring 0.87×
Front Diameter 23 mm
Rear Effective Diameter 14.5 mm
Focus Control Manual
Iris Control Manual
Focus Range 0.1 m - ∞
Back Focal Length 14.2 mm in air
Operating Temperature Range -10 to +50 °C
Storage Temperature Range -20 to +60 °C
Dimensions 43 × 43 × 49 mm
Shooting Range at MOD 23.4(H)×17.6(V)
TV Distortion (%) 0.05
Angle of View @ 1/1.8″ 11.7° × 8.8°
Angle of View @ 1/2″ 10.4° × 7.8°
Angle of View @ 2/3″ 14.3° × 10.8°
