Description

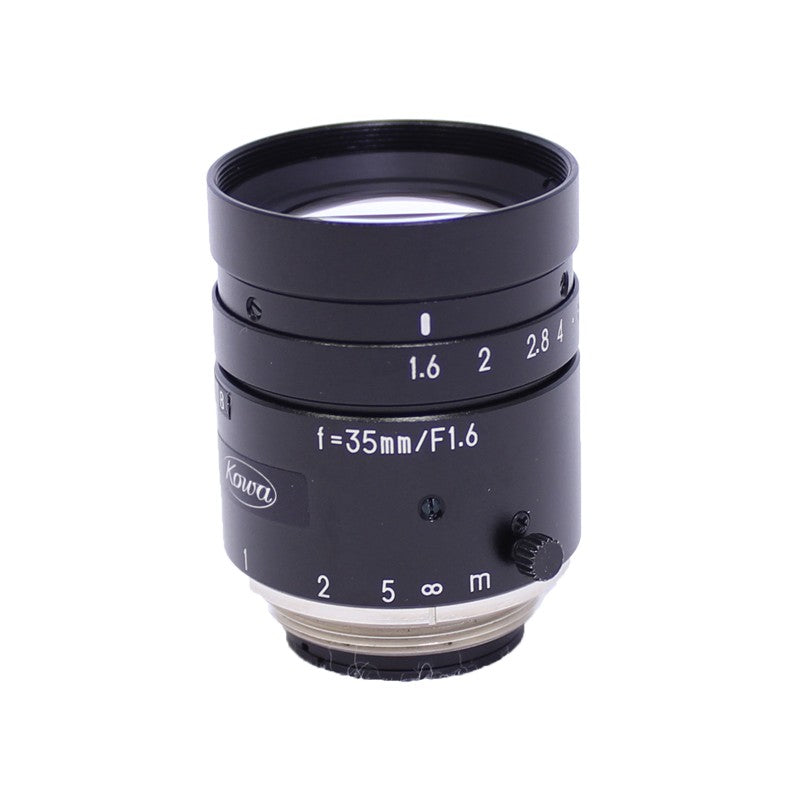

Kowa LM35JC
The 2/3″ JC lens series has a longstanding tradition of providing support to a wide range of vision systems. These lenses have low excellent resolution, and with focal lengths ranging from 6mm to 100mm, the JC lenses can be used in a wide variety of applications.
LM35JC Technical Specifications:
Product Line / Series | JC |
Lens Type | Fixed Focal Length |
IP Rating | Not Specified |
Focal Length | 35 mm |
ƒ/N | ƒ/1.6 - ƒ/16 |
Image Circle Diameter | 11 mm |
Image Size Dimensions | 8.8 mm x 6.6 mm |
Imager Format | 2/3″ |
Light Spectrum | Visible |
Resolution (MP) | 2 |
Resolution (Pixel Size) | 5 μm |
Resolution (Line Pairs per mm @ Center) | 100 |
Resolution (Line Pairs per mm @ Corner) | 60 |
Weight | 85 Grams |
Mount | C-Mount |
Filter Thread | M30.5-0.5 |
Minimum Object Distance | 300 mm |
Magnification | 0.12× |
Minimum Object Distance with 1mm Ring | 240 mm |
Minimum Object Distance with 5mm Ring | 132 mm |
Minimum Object Distance with 10mm Ring | 84 mm |
Magnification with 1mm Ring | 0.14× |
Magnification with 5mm Ring | 0.26× |
Magnification with 10mm Ring | 0.4× |
Front Diameter | 21.7 mm |
Rear Effective Diameter | 12.9 mm |
Focus Control | Manual |
Iris Control | Manual |
Focus Range | 0.3 m - ∞ |
Back Focal Length | 14.9 mm in air |
Operating Temperature Range | -10 to +50 °C |
Storage Temperature Range | -20 to +60 °C |
Dimensions | 32 × 32 × 36.5 mm |
Shooting Range at MOD | 76.0(H)×56.9(V) |
TV Distortion (%) | −0.2 |
Angle of View @ 1/1.8″ | 11.8° × 8.8° |
Angle of View @ 1/2″ | 10.5° × 7.9° |
Angle of View @ 2/3″ | 14.4° × 10.8° |
