Kowa LM35HC-V 35 mm 1″ f/1.4 f/2.8 f/4 f/8 C-Mount Fixed Focal Length Lens

Save $201.00
KowaSKU: LM35HC-V
Lead Time: Not Specified

Price:
Sale price$371.00 USD Regular price$572.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

This price includes tariffs, based on the applicable tariff charges. This change is effective originally as of 05/30/25. Updated 06/04/25, 6/24/25. Pricing is subject to change and may fluctuate.

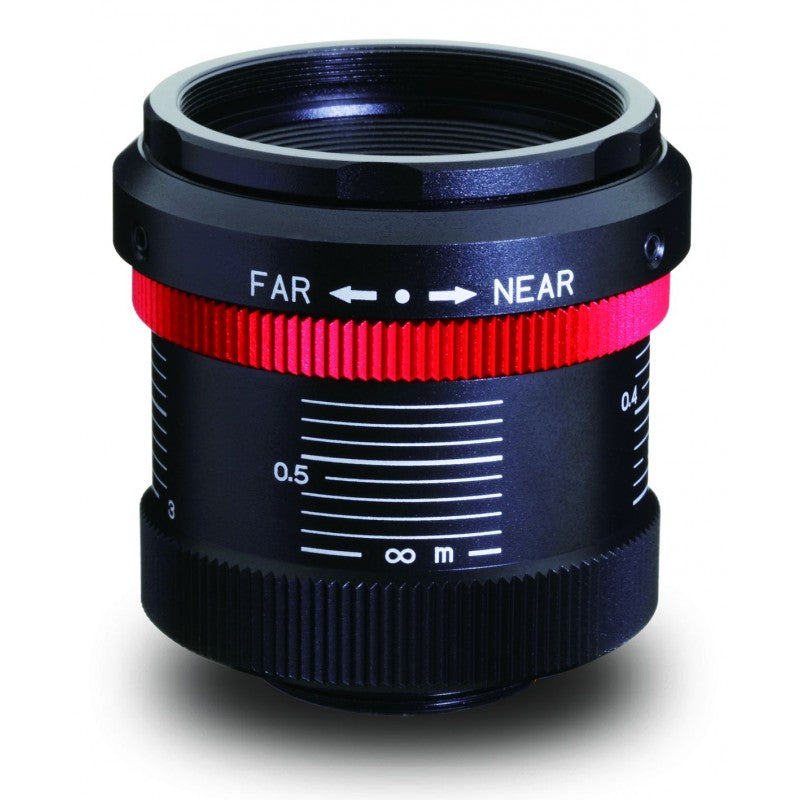

Kowa LM35HC-V

Kowa's HC-V series is made for use in high-vibration and high-shock environments. With a design based on Kowa's standard 1-inch HC lenses, this ruggedized megapixel lens series is ideal for applications that require increased durability and high optical performance. All internal glass elements of this series are glued. A two-way reversible nut is utilized to tightly lock the focus adjustment ring. Interchangeable iris plates, which can be glued, are used to select the F-stop.

LM35HC-V Technical Specifications:

Product Line / Series HC-V
Lens Type Fixed Focal Length
IP Rating Not Specified
Focal Length 35 mm
ƒ/N ƒ/1.4 ƒ/2.8 ƒ/4 ƒ/8
Image Circle Diameter 16 mm
Image Size Dimensions 12.8 mm x 9.6 mm
Imager Format 1″
Light Spectrum Visible
Resolution (MP) 5
Resolution (Pixel Size) 5 μm
Resolution (Line Pairs per mm @ Center) 120
Resolution (Line Pairs per mm @ Corner) 80
Weight 133 Grams
Mount C-Mount
Filter Thread M35.5-0.5
Minimum Object Distance 300 mm
Magnification Not Specified
Front Diameter 24.3 mm
Rear Effective Diameter 19.1 mm
Focus Control Manual
Iris Control Manual
Focus Range 0.3 m - ∞
Back Focal Length 16.8 mm in air
Operating Temperature Range -10 to +50 °C
Storage Temperature Range -20 to +60 °C
Dimensions 46 × 46 × 44.1 mm
Shooting Range at MOD 110.1(H)×82.0(V)
TV Distortion (%) −0.5
Angle of View @ 1/1.8″ 11.8° × 8.8°
Angle of View @ 2/3″ 14.4° × 10.8°
Angle of View @ 1″ 20.9° × 15.8°
