Description

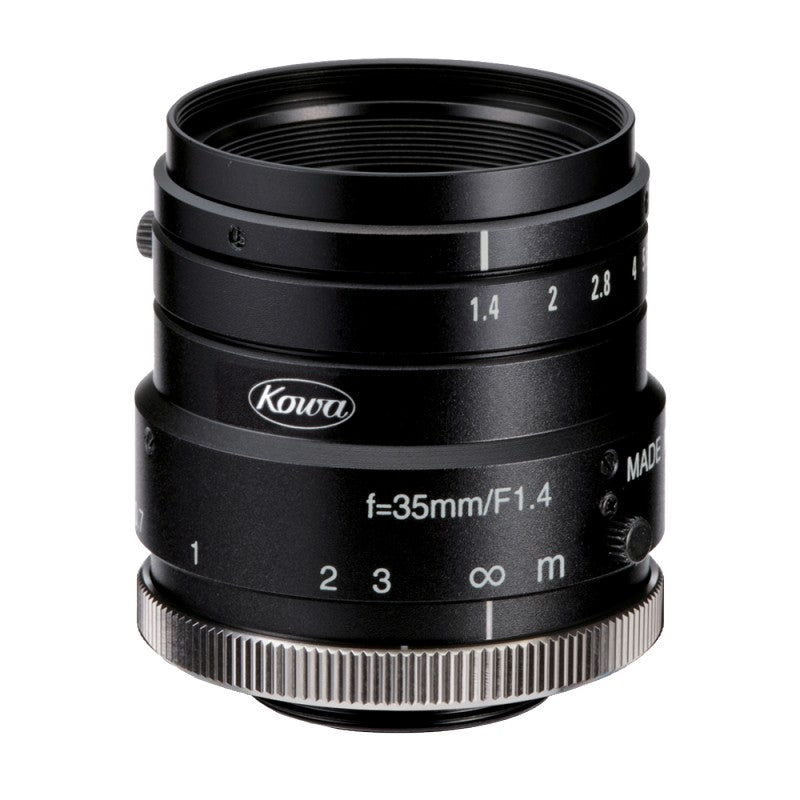

Kowa LM35HC-SW
Incorporating Kowa's special coating technology, the 1″ format HC-SW series maintains high transmission from 800nm to 2000nm. These lenses are designed for NIR and Short Wavelength Infrared (SWIR) applications. These IR-Corrected lenses are designed to produce crisp and bright images, no matter how dark or bright the surrounding environment may be.
LM35HC-SW Technical Specifications:
Product Line / Series | HC-SW |
Lens Type | Fixed Focal Length |
IP Rating | Not Specified |
Focal Length | 35 mm |
ƒ/N | ƒ/1.4 - ƒ/16 |
Image Circle Diameter | 16 mm |
Image Size Dimensions | 12.8 mm x 9.6 mm |
Imager Format | 1″ |
Light Spectrum | SWIR |
Resolution (MP) | Not Specified |
Resolution (Pixel Size) | Not Specified |
Resolution (Line Pairs per mm @ Center) | 120 |
Resolution (Line Pairs per mm @ Corner) | 80 |
Weight | 135 Grams |
Mount | C-Mount |
Filter Thread | M35.5-0.5 |
Minimum Object Distance | 300 mm |
Magnification | Not Specified |
Front Diameter | 24.3 mm |
Rear Effective Diameter | 19.1 mm |
Focus Control | Manual |
Iris Control | Manual |
Focus Range | 0.3 m - ∞ |
Back Focal Length | 16.8 mm in air |
Operating Temperature Range | -10 to +50 °C |
Storage Temperature Range | -20 to +60 °C |
Dimensions | 43 × 43 × 43 mm |
Shooting Range at MOD | 110.1(H)×82.0(V) |
TV Distortion (%) | −0.5 |
Angle of View @ 1/1.8″ | 11.8° × 8.8° |
Angle of View @ 2/3″ | 14.4° × 10.8° |
Angle of View @ 1″ | 20.9° × 15.8° |
