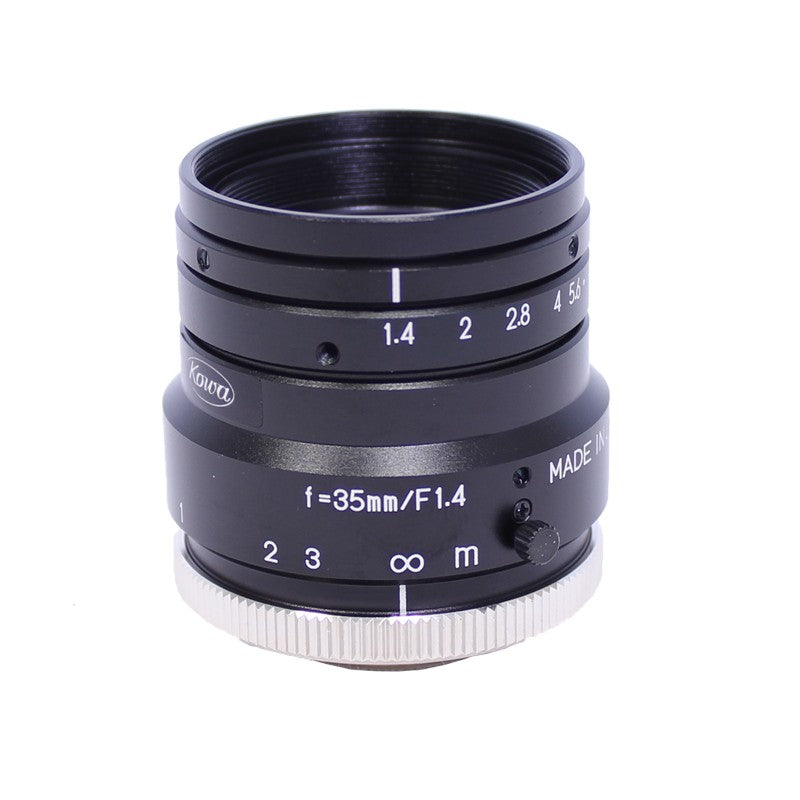

Kowa LM35HC
Kowa's HC lenses are designed for 1″ megapixel cameras. They have low distortion, excellent light transmission, and can be used with smaller format size cameras.
LM35HC Technical Specifications:
Product Line / Series | HC |
Lens Type | Fixed Focal Length |
IP Rating | Not Specified |
Focal Length | 35 mm |
ƒ/N | ƒ/1.4 - ƒ/16 |
Image Circle Diameter | 16 mm |
Image Size Dimensions | 12.8 mm x 9.6 mm |
Imager Format | 1″ |
Light Spectrum | Visible |
Resolution (MP) | 5 |
Resolution (Pixel Size) | 5 μm |
Resolution (Line Pairs per mm @ Center) | 120 |
Resolution (Line Pairs per mm @ Corner) | 80 |
Weight | 135 Grams |
Mount | C-Mount |
Filter Thread | M35.5-0.5 |
Minimum Object Distance | 300 mm |
Magnification | 0.12× |
Minimum Object Distance with 1mm Ring | 243 mm |
Minimum Object Distance with 5mm Ring | 138 mm |
Minimum Object Distance with 10mm Ring | 91 mm |
Magnification with 1mm Ring | 0.15× |
Magnification with 5mm Ring | 0.26× |
Magnification with 10mm Ring | 0.4× |
Front Diameter | 24.3 mm |
Rear Effective Diameter | 19.1 mm |
Focus Control | Manual |
Iris Control | Manual |
Focus Range | 0.3 m - ∞ |
Back Focal Length | 16.8 mm in air |
Operating Temperature Range | -10 to +50 °C |
Storage Temperature Range | -20 to +60 °C |
Dimensions | 43 × 43 × 43 mm |
Shooting Range at MOD | 110.1(H)×82.0(V) |
TV Distortion (%) | −0.5 |
Angle of View @ 1/1.8″ | 11.8° × 8.8° |
Angle of View @ 2/3″ | 14.4° × 10.8° |
Angle of View @ 1″ | 20.9° × 15.8° |
