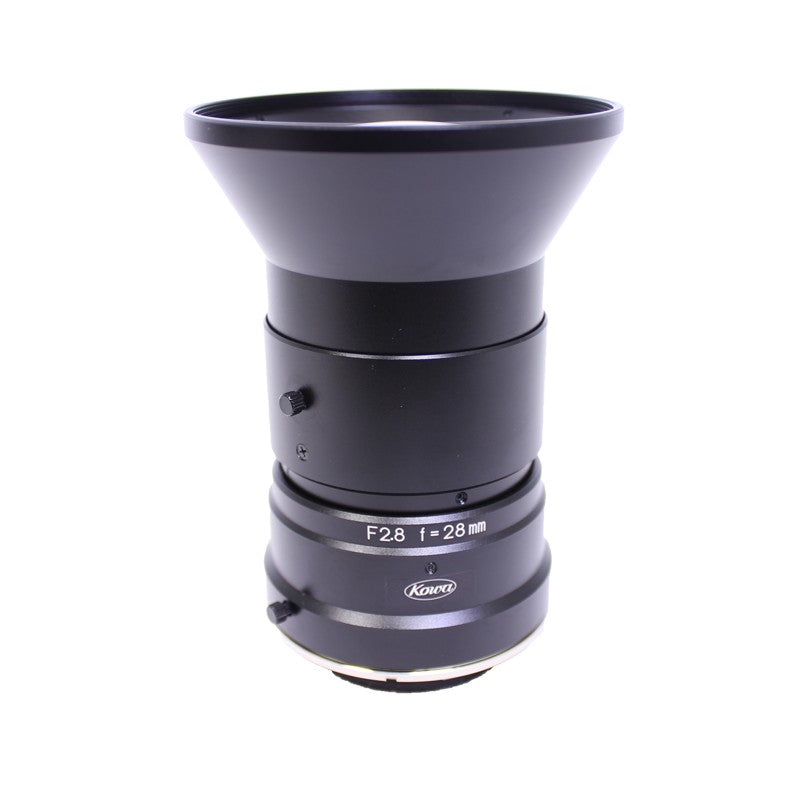

Kowa LM28LF-48
Kowa's 4k line scan lenses are ideal for high resolution, low distortion, and close distance surface inspection using line scan cameras. This series offeres six lens options with focal lengths ranging from 28mm to 50mm.
LM28LF-48 Technical Specifications:
Product Line / Series | LF |
Lens Type | Fixed Focal Length, Line Scan |
IP Rating | Not Specified |
Focal Length | 28 mm |
ƒ/N | ƒ/2.8 - ƒ/22 |
Image Circle Diameter | 23 mm |
Image Size Dimensions | 18.4 mm x 13.8 mm |
Imager Format | 43.3 mm |
Light Spectrum | Visible |
Resolution (MP) | Not Specified |
Resolution (Pixel Size) | 7.5 μm |
Resolution (Line Pairs per mm @ Center) | 160 |
Resolution (Line Pairs per mm @ Corner) | 63 |
Weight | 500 Grams |
Mount | TFL-II Mount |
Filter Thread | M72-0.75 |
Minimum Object Distance | 300 mm |
Front Diameter | 55 mm |
Rear Effective Diameter | 37.4 mm |
Focus Control | Manual |
Iris Control | Manual |
Focus Range | 0.5 m - ∞ |
Back Focal Length | Not Specified |
Operating Temperature Range | -10 to +50 °C |
Storage Temperature Range | -20 to +60 °C |
Dimensions | 75 × 75 × 127 mm |
Shooting Range at MOD | 424.3×281.1 |
TV Distortion (%) | −0.17 |
Angle of View @ 1″ | 25.3° × 19.1° |
Angle of View @ 4/3″ | 35.8° × 27.2° |
Angle of View @ Full Size | 64.6° × 45.8° |
