Kowa LM28LF 28 mm 43.3 mm f/2.8 - f/22 F-Mount Fixed Focal Length, Line Scan Lens

Save $571.00
KowaSKU: LM28LF
Lead Time: Not Specified

Price:
Sale price$1,057.00 USD Regular price$1,628.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

This price includes tariffs, based on the applicable tariff charges. This change is effective originally as of 05/30/25. Updated 06/04/25, 6/24/25. Pricing is subject to change and may fluctuate.

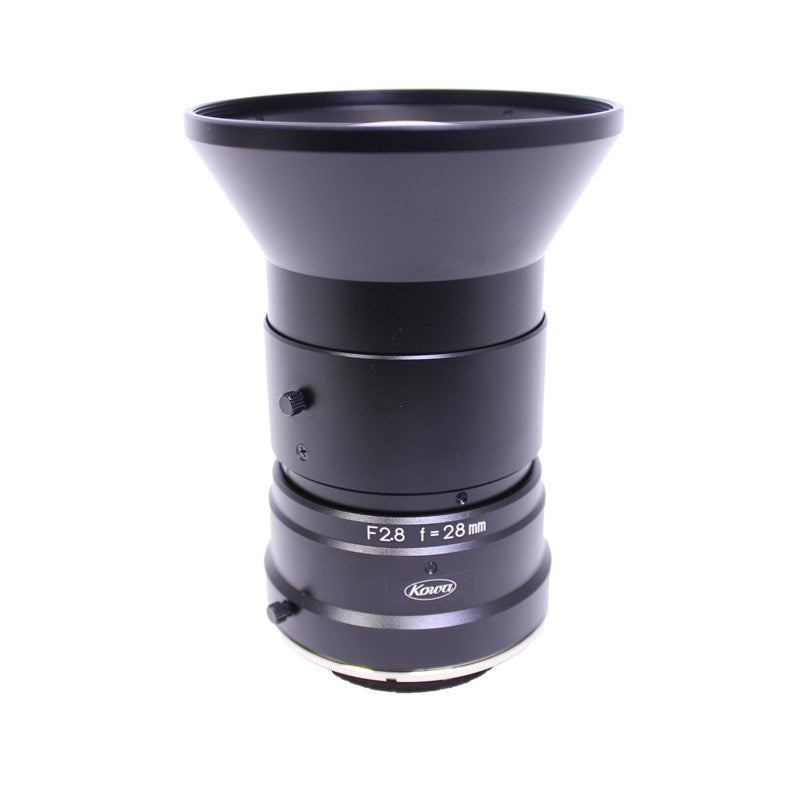

Kowa LM28LF

Kowa's 4k line scan lenses are ideal for high resolution, low distortion, and close distance surface inspection using line scan cameras. This series offeres six lens options with focal lengths ranging from 28mm to 50mm.

LM28LF Technical Specifications:

Product Line / Series LF
Lens Type Fixed Focal Length, Line Scan
IP Rating Not Specified
Focal Length 28 mm
ƒ/N ƒ/2.8 - ƒ/22
Image Circle Diameter 23 mm
Image Size Dimensions 18.4 mm x 13.8 mm
Imager Format 43.3 mm
Light Spectrum Visible
Resolution (MP) Not Specified
Resolution (Pixel Size) 7.5 μm
Resolution (Line Pairs per mm @ Center) 160
Resolution (Line Pairs per mm @ Corner) 63
Weight 500 Grams
Mount F-Mount
Filter Thread M72-0.75
Minimum Object Distance 300 mm
Front Diameter 55 mm
Rear Effective Diameter 37.4 mm
Focus Control Manual
Iris Control Manual
Focus Range 0.5 m - ∞
Back Focal Length Not Specified
Operating Temperature Range -10 to +50 °C
Storage Temperature Range -20 to +60 °C
Dimensions 75 × 75 × 98 mm
Shooting Range at MOD 424.3×281.1
TV Distortion (%) −0.17
Angle of View @ 1″ 25.3° × 19.1°
Angle of View @ 4/3″ 35.8° × 27.2°
Angle of View @ Full Size 64.6° × 45.8°
