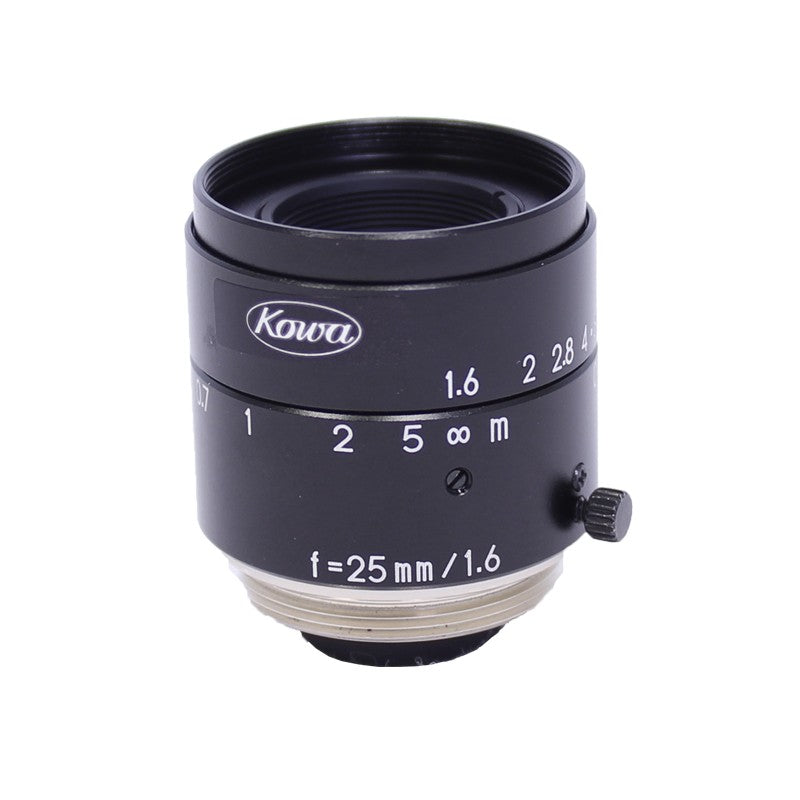

Kowa LM25JC 25 mm 2/3″ f/1.6 - f/16 C-Mount Fixed Focal Length Lens

Save $54.70
KowaSKU: LM25JC
Lead Time: Not Specified

Price:
Sale price$109.30 USD Regular price$164.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

Kowa LM25JC

The 2/3″ JC lens series has a longstanding tradition of providing support to a wide range of vision systems. These lenses have low excellent resolution, and with focal lengths ranging from 6mm to 100mm, the JC lenses can be used in a wide variety of applications.

LM25JC Technical Specifications:

Product Line / Series JC
Lens Type Fixed Focal Length
IP Rating Not Specified
Focal Length 25 mm
ƒ/N ƒ/1.6 - ƒ/16
Image Circle Diameter 11 mm
Image Size Dimensions 8.8 mm x 6.6 mm
Imager Format 2/3″
Light Spectrum Visible
Resolution (MP) 2
Resolution (Pixel Size) 5 μm
Resolution (Line Pairs per mm @ Center) 100
Resolution (Line Pairs per mm @ Corner) 60
Weight 55 Grams
Mount C-Mount
Filter Thread M27-0.5
Minimum Object Distance 200 mm
Magnification 0.12×
Minimum Object Distance with 1mm Ring 136 mm
Minimum Object Distance with 5mm Ring 46 mm
Magnification with 1mm Ring 0.15×
Magnification with 5mm Ring 0.31×
Front Diameter 14.6 mm
Rear Effective Diameter 10.7 mm
Focus Control Manual
Iris Control Manual
Focus Range 0.2 m - ∞
Back Focal Length 10.3 mm in air
Operating Temperature Range -10 to +50 °C
Storage Temperature Range -20 to +60 °C
Dimensions 30 × 30 × 28 mm
Shooting Range at MOD 72.1(H)×53.7(V)
TV Distortion (%) −0.6
Angle of View @ 1/1.8″ 17.2° × 12.9°
Angle of View @ 1/2″ 15.3° × 11.4°
Angle of View @ 2/3″ 21.0° × 15.7°
