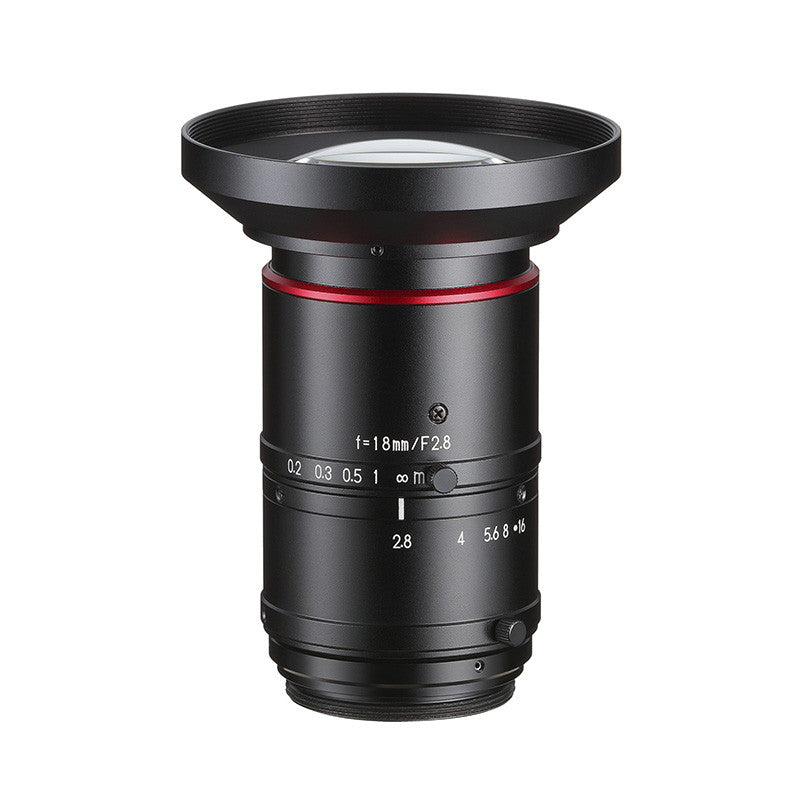

Kowa LM18VM42 18 mm 2″ f/2.8 - f/16 M42-Mount Fixed Focal Length Lens

Save $574.00
KowaSKU: LM18VM42
Lead Time: Not Specified

Price:
Sale price$1,516.00 USD Regular price$2,090.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us.

Description

This price includes tariffs, based on the applicable tariff charges. Updated 05/30/25, 06/04/25, 6/24/25, and 10/23/25. Pricing is subject to change and may fluctuate.

Kowa LM18VM42

The 2″ VM series is rated at 50 MP and can cover sensors with a diameter of 32mm or less. To ruggedize and increase durability, the large format VM lenses incorporate a unique locking switch mechanism that prevents thumb screws from falling off. The VM series is ideal for line scan, flat panel display inspection, and aerial photography applications.

LM18VM42 Technical Specifications:

Product Line / Series VM
Lens Type Fixed Focal Length
IP Rating Not Specified
Focal Length 18 mm
ƒ/N ƒ/2.8 - ƒ/16
Image Circle Diameter 32 mm
Image Size Dimensions Not Specified
Imager Format 2″
Light Spectrum Visible
Resolution (MP) 50
Resolution (Pixel Size) 3.1 μm
Resolution (Line Pairs per mm @ Center) 160
Resolution (Line Pairs per mm @ Corner) 100
Weight 460 Grams
Mount M42-Mount
Filter Thread M77-0.75
Minimum Object Distance 100 mm
Front Diameter 55 mm
Rear Effective Diameter 25.4 mm
Focus Control Manual
Iris Control Manual
Focus Range 0.1 m - ∞
Back Focal Length 15.5 mm in air
Operating Temperature Range -10 to +50 °C
Storage Temperature Range -20 to +60 °C
Dimensions 79 × 79 × 99.6 mm
Shooting Range at MOD 172(H)×128(V)
TV Distortion (%) 1.25
Angle of View @ 4/3″ 54.1° × 41.8°
Angle of View @ 2″ 70.5° × 56.1°
Angle of View @ APS-C 63.4° × 49.7°
