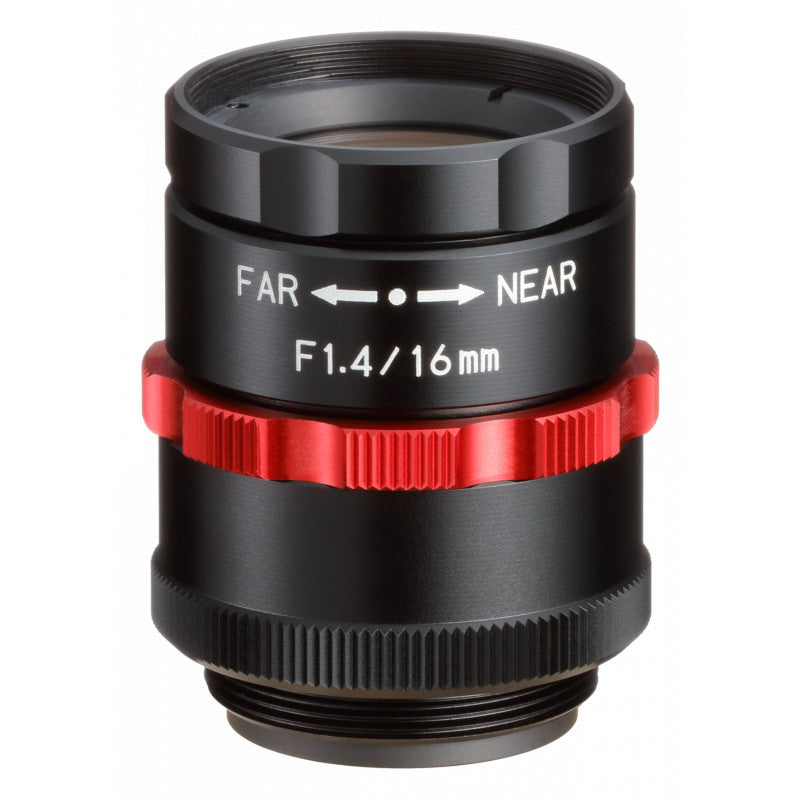

Kowa LM16JCM-WP
The JCM-WP series utilizes Kowa's latest technology to protect against extreme environments ranging from high vibration/shock to damp/wet conditions. With optical specs based on Kowa's standard 2/3″ JCM series lenses, these ruggedized waterproof megapixel lenses are ideal for applications that require increased durability and superior optical performance.
LM16JCM-WP Technical Specifications:
Product Line / Series | JCM-WP |
Lens Type | Fixed Focal Length |
IP Rating | IP67 |
Focal Length | 16 mm |
ƒ/N | ƒ/1.4 - ƒ/16 |
Image Circle Diameter | 11 mm |
Image Size Dimensions | 8.8 mm x 6.6 mm |
Imager Format | 2/3″ |
Light Spectrum | Visible |
Resolution (MP) | 2 |
Resolution (Pixel Size) | 4.5 μm |
Resolution (Line Pairs per mm @ Center) | 120 |
Resolution (Line Pairs per mm @ Corner) | 100 |
Weight | 75 Grams |
Mount | C-Mount |
Filter Thread | M27-0.5 |
Minimum Object Distance | 200 mm |
Front Diameter | 20.2 mm |
Rear Effective Diameter | 15.5 mm |
Focus Control | Manual |
Iris Control | Manual |
Focus Range | 0.2 m - ∞ |
Back Focal Length | 13.1 mm in air |
Operating Temperature Range | -10 to +50 °C |
Storage Temperature Range | -20 to +60 °C |
Dimensions | 33 × 33 × 36.5 mm |
Shooting Range at MOD | 112.8(H)×84.4(V) |
TV Distortion (%) | −0.05 |
Angle of View @ 1/1.8″ | 24.7° × 18.6° |
Angle of View @ 1/2″ | 21.8° × 16.4° |
Angle of View @ 2/3″ | 30.0° × 22.7° |
