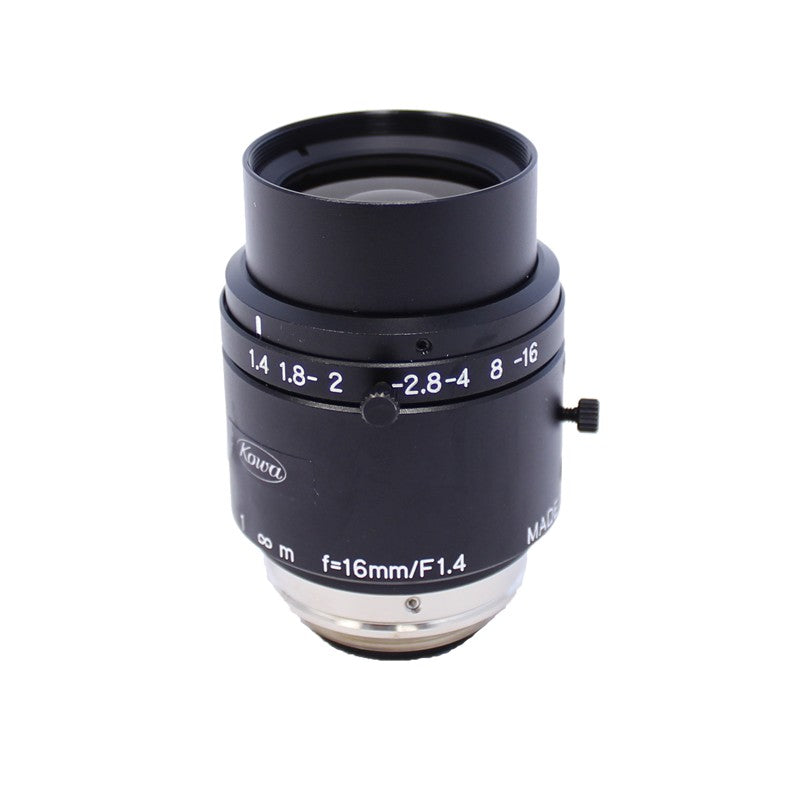

Kowa LM16JC5M2 16 mm 2/3″ f/1.4 - f/16 C-Mount Fixed Focal Length Lens

Save $192.00
KowaSKU: LM16JC5M2
Lead Time: Not Specified

Price:
Sale price$508.00 USD Regular price$700.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us.

Description

This price includes tariffs, based on the applicable tariff charges. Updated 05/30/25, 06/04/25, 6/24/25, and 10/23/25. Pricing is subject to change and may fluctuate.

Kowa LM16JC5M2

Kowa's JC5M-IR lenses series iareIR corrected lens with broadband coating. These lenses showcase low distortion and are perfect for high-end applications that require 5-megapixel cameras.

LM16JC5M2 Technical Specifications:

Product Line / Series JC5M2
Lens Type Fixed Focal Length
IP Rating Not Specified
Focal Length 16 mm
ƒ/N ƒ/1.4 - ƒ/16
Image Circle Diameter 11 mm
Image Size Dimensions 8.8 mm x 6.6 mm
Imager Format 2/3″
Light Spectrum Visible
Resolution (MP) 5
Resolution (Pixel Size) 3.5 μm
Resolution (Line Pairs per mm @ Center) 160
Resolution (Line Pairs per mm @ Corner) 125
Weight 125 Grams
Mount C-Mount
Filter Thread M30.5-0.5
Minimum Object Distance 100 mm
Magnification 0.137×
Minimum Object Distance with 1mm Ring 62 mm
Magnification with 1mm Ring 0.195×
Front Diameter 24.5 mm
Rear Effective Diameter 16.6 mm
Focus Control Manual
Iris Control Manual
Focus Range 0.1 m - ∞
Back Focal Length 11.6 mm in air
Operating Temperature Range -10 to +50 °C
Storage Temperature Range -20 to +60 °C
Dimensions 38.5 × 38.5 × 52 mm
Shooting Range at MOD 64.6(H)×48.4(V)
TV Distortion (%) 0.03
Angle of View @ 1/1.8″ 24.7° × 18.6°
Angle of View @ 1/2″ 22.0° × 16.6°
Angle of View @ 2/3″ 29.9° × 22.7°
