Kowa LM16JC1MS 16 mm 2/3″ f/1.4 - f/16 C-Mount Fixed Focal Length Lens

Save $100.00
KowaSKU: LM16JC1MS
Lead Time: Not Specified

Price:
Sale price$186.00 USD Regular price$286.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

This price includes tariffs, based on the applicable tariff charges. This change is effective originally as of 05/30/25. Updated 06/04/25, 6/24/25. Pricing is subject to change and may fluctuate.

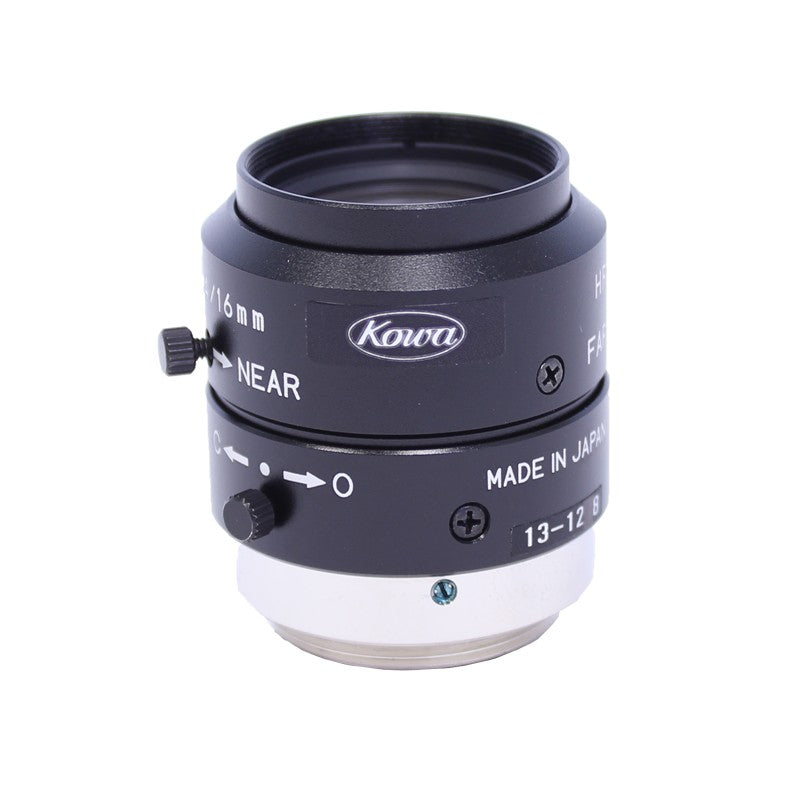

Kowa LM16JC1MS

Kowa's JC5MC series lenses are ultra-compact 2/3″ 5-megapixel lenses for C-Mount. These are small, lightweight, robust, and vibration-resistant.

LM16JC1MS Technical Specifications:

Product Line / Series JCM
Lens Type Fixed Focal Length
IP Rating Not Specified
Focal Length 16 mm
ƒ/N ƒ/1.4 - ƒ/16
Image Circle Diameter 11 mm
Image Size Dimensions 8.8 mm x 6.6 mm
Imager Format 2/3″
Light Spectrum Visible
Resolution (MP) 2
Resolution (Pixel Size) 5 μm
Resolution (Line Pairs per mm @ Center) 120
Resolution (Line Pairs per mm @ Corner) 100
Weight 85 Grams
Mount C-Mount
Filter Thread M27-0.5
Minimum Object Distance 200 mm
Magnification 0.08×
Minimum Object Distance with 1mm Ring 110 mm
Magnification with 1mm Ring 0.14×
Front Diameter 20.2 mm
Rear Effective Diameter 15.5 mm
Focus Control Manual
Iris Control Manual
Focus Range 0.2 m - ∞
Back Focal Length 13.1 mm in air
Operating Temperature Range -10 to +50 °C
Storage Temperature Range -20 to +60 °C
Dimensions 33.5 × 33.5 × 36.5 mm
Shooting Range at MOD 112.8(H)×84.4(V)
TV Distortion (%) −0.05
Angle of View @ 1/1.8″ 24.7° × 18.6°
Angle of View @ 1/2″ 21.8° × 16.4°
Angle of View @ 2/3″ 30.0° × 22.7°
