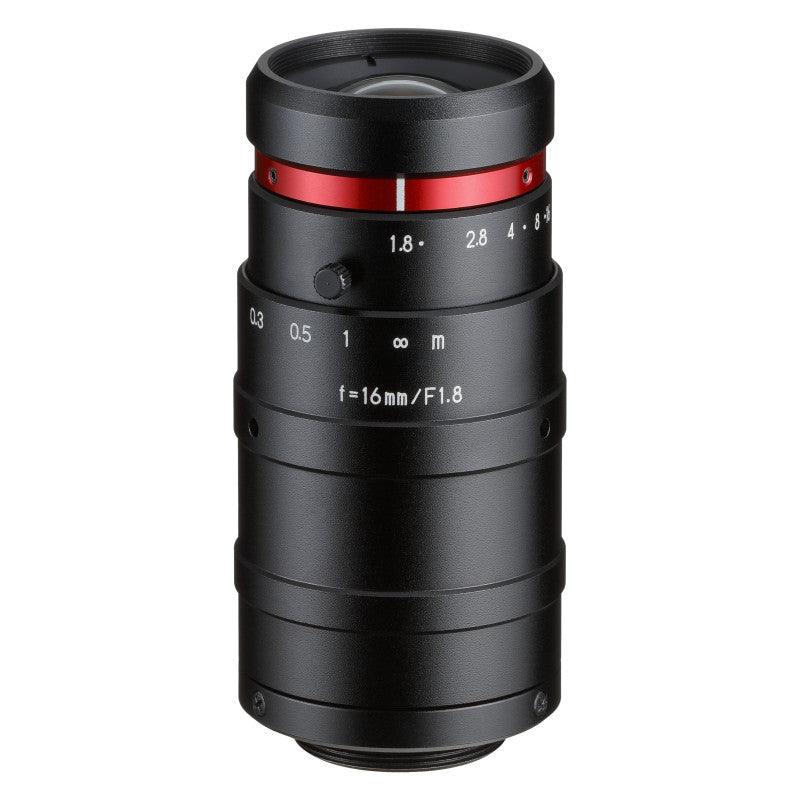

Kowa LM16HC-VIS-SW 16 mm 1″ f/1.8 - f/16 C-Mount Fixed Focal Length Lens

Save $1,697.00
KowaSKU: LM16HC-VIS-SW
Lead Time: Not Specified

Price:
Sale price$3,143.00 USD Regular price$4,840.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

This price includes tariffs, based on the applicable tariff charges. This change is effective originally as of 05/30/25. Updated 06/04/25, 6/24/25. Pricing is subject to change and may fluctuate.

Kowa LM16HC-VIS-SW

Kowa's 1″ C-Mount HC-VIS-SW lens series maximizes high-resolution imaging from the visible to SWIR wavelength range. With IR-correction and the ability to perform well at 450nm to 2,000nm, these lenses are ideal for various applications such as high-end surveillance, machine vision inspection, pro+uce sorting, quality control, anti-counterfeiting, and more.

LM16HC-VIS-SW Technical Specifications:

Product Line / Series HC-VIS-SW
Lens Type Fixed Focal Length
IP Rating Not Specified
Focal Length 16 mm
ƒ/N ƒ/1.8 - ƒ/16
Image Circle Diameter 16 mm
Image Size Dimensions 12.8 mm x 9.6 mm
Imager Format 1″
Light Spectrum Visible, SWIR
Resolution (MP) 12
Resolution (Pixel Size) 3.1 μm
Resolution (Line Pairs per mm @ Center) 160
Resolution (Line Pairs per mm @ Corner) 100
Weight 190 Grams
Mount C-Mount
Filter Thread M30.5-0.5
Minimum Object Distance 200 mm
Magnification 0.0753×
Minimum Object Distance with 1mm Ring 101 mm
Minimum Object Distance with 5mm Ring 26 mm
Magnification with 1mm Ring 0.138×
Magnification with 5mm Ring 0.389×
Front Diameter 20.6 mm
Rear Effective Diameter 15.3 mm
Focus Control Manual
Iris Control Manual
Focus Range 0.2 m - ∞
Back Focal Length 15 mm in air
Operating Temperature Range -10 to +50 °C
Storage Temperature Range -20 to +60 °C
Dimensions 39 × 39 × 78.2 mm
Shooting Range at MOD 174.0(H)×129.0(V)
TV Distortion (%) -0.81
Angle of View @ 1/1.8″ 25.4° × 19.1°
Angle of View @ 2/3″ 31.0° × 23.3°
Angle of View @ 1″ 44.2° × 33.6°
