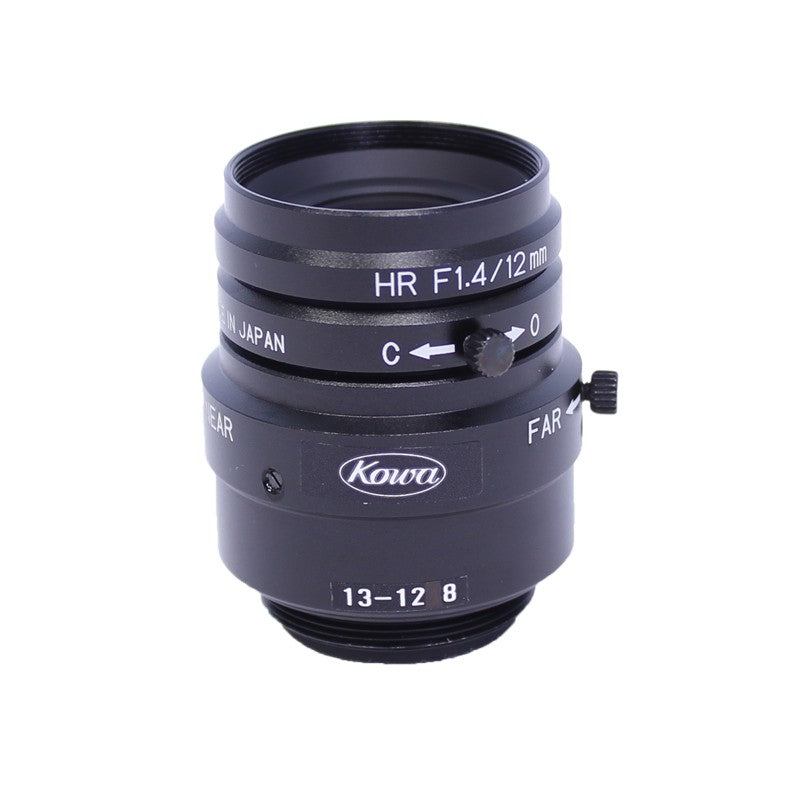

Kowa LM12JC1MS 12 mm 2/3″ f/1.4 - Close C-Mount Fixed Focal Length Lens

Save $78.00
KowaSKU: LM12JC1MS
Lead Time: Not Specified

Price:
Sale price$208.00 USD Regular price$286.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us.

Description

This price includes tariffs, based on the applicable tariff charges. Updated 05/30/25, 06/04/25, 6/24/25, and 10/23/25. Pricing is subject to change and may fluctuate.

Kowa LM12JC1MS

Kowa's JC5MC series lenses are ultra-compact 2/3″ 5-megapixel lenses for C-Mount. These are small, lightweight, robust, and vibration-resistant.

LM12JC1MS Technical Specifications:

Product Line / Series JCM
Lens Type Fixed Focal Length
IP Rating Not Specified
Focal Length 12 mm
ƒ/N ƒ/1.4 - Close
Image Circle Diameter 11 mm
Image Size Dimensions 8.8 mm x 6.6 mm
Imager Format 2/3″
Light Spectrum Visible
Resolution (MP) 2
Resolution (Pixel Size) 5 μm
Resolution (Line Pairs per mm @ Center) 120
Resolution (Line Pairs per mm @ Corner) 100
Weight 85 Grams
Mount C-Mount
Filter Thread M27-0.5
Minimum Object Distance 150 mm
Magnification 0.08×
Minimum Object Distance with 1mm Ring 70 mm
Magnification with 1mm Ring 0.16×
Front Diameter 15.8 mm
Rear Effective Diameter 14.1 mm
Focus Control Manual
Iris Control Manual
Focus Range 0.15 m - ∞
Back Focal Length 11.7 mm in air
Operating Temperature Range -10 to +50 °C
Storage Temperature Range -20 to +60 °C
Dimensions 34 × 34 × 37 mm
Shooting Range at MOD 110.0(H)×82.5(V)
TV Distortion (%) −0.07
Angle of View @ 1/1.8″ 31.7° × 24.0°
Angle of View @ 1/2″ 28.3° × 21.4°
Angle of View @ 2/3″ 38.3° × 29.1°
