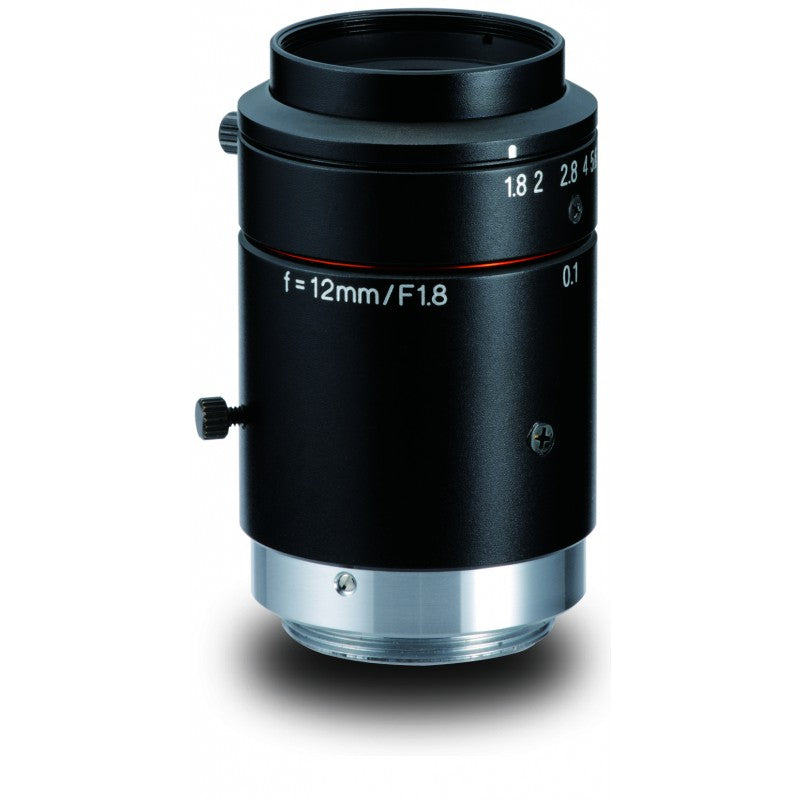

Kowa LM12JC10M 12 mm 2/3″ f/1.8 - f/11 C-Mount Fixed Focal Length Lens

Save $383.00
KowaSKU: LM12JC10M
Lead Time: Not Specified

Price:
Sale price$1,011.00 USD Regular price$1,394.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us.

Description

This price includes tariffs, based on the applicable tariff charges. Updated 05/30/25, 06/04/25, 6/24/25, and 10/23/25. Pricing is subject to change and may fluctuate.

Kowa LM12JC10M

The 2/3″ 10 megapixel JC10M lens series provides 200lp/mm resolution and low distortion to maximize performance for high-end applications. Incorporating Kowa's broadband coating and floating mechanism design, the JC10M lens series dramatically reduces chromatic aberration at any distance and maintains a high transmission from visible to NIR.

LM12JC10M Technical Specifications:

Product Line / Series JC10M
Lens Type Fixed Focal Length
IP Rating Not Specified
Focal Length 12 mm
ƒ/N ƒ/1.8 - ƒ/11
Image Circle Diameter 11 mm
Image Size Dimensions 8.8 mm x 6.6 mm
Imager Format 2/3″
Light Spectrum Visible
Resolution (MP) 10
Resolution (Pixel Size) 2.5 μm
Resolution (Line Pairs per mm @ Center) 200
Resolution (Line Pairs per mm @ Corner) 160
Weight 105 Grams
Mount C-Mount
Filter Thread M25.5-0.5
Minimum Object Distance 100 mm
Magnification 0.11×
Minimum Object Distance with 1mm Ring 48 mm
Magnification with 1mm Ring 0.19×
Front Diameter 18.4 mm
Rear Effective Diameter 16.1 mm
Focus Control Manual
Iris Control Manual
Focus Range 0.1 m - ∞
Back Focal Length 13.9 mm in air
Operating Temperature Range -10 to +50 °C
Storage Temperature Range -20 to +60 °C
Dimensions 33 × 33 × 53.5 mm
Shooting Range at MOD 80.7(H)×60.2(V)
TV Distortion (%) −0.12
Angle of View @ 1/1.8″ 32.4° × 24.6°
Angle of View @ 1/2″ 28.9° × 21.9°
Angle of View @ 2/3″ 39.1° × 29.8°
