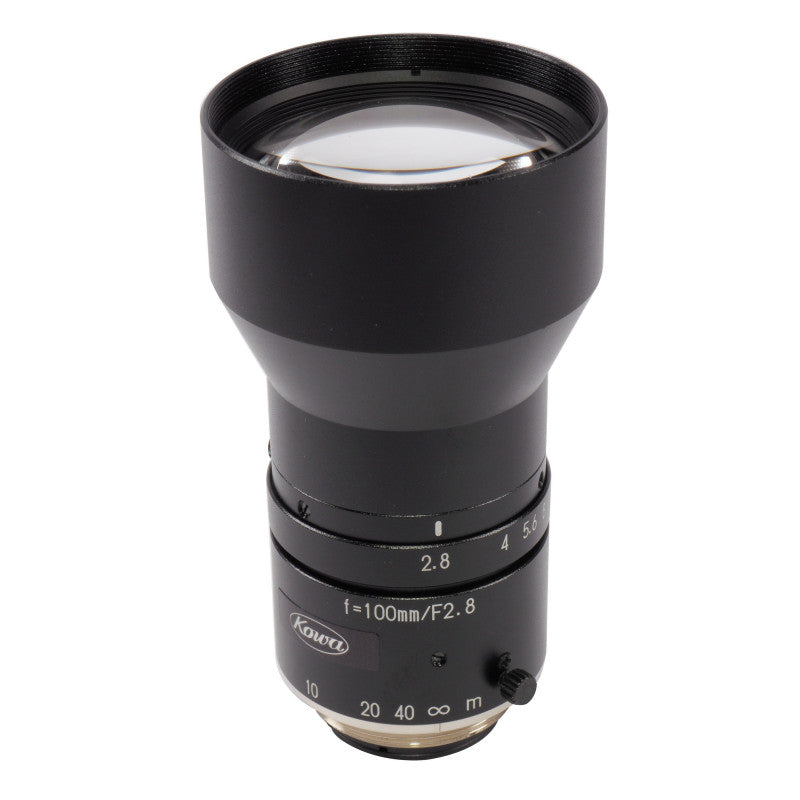

Kowa LM100JC1MS 100 mm 2/3″ f/2.8 - f/32 C-Mount Fixed Focal Length Lens

Save $73.00
KowaSKU: LM100JC1MS
Lead Time: Not Specified

Price:
Sale price$195.00 USD Regular price$268.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us.

Description

This price includes tariffs, based on the applicable tariff charges. Updated 05/30/25, 06/04/25, 6/24/25, and 10/23/25. Pricing is subject to change and may fluctuate.

Kowa LM100JC1MS

Kowa's JC5MC series lenses are ultra-compact 2/3″ 5-megapixel lenses for C-Mount. These are small, lightweight, robust, and vibration-resistant.

LM100JC1MS Technical Specifications:

Product Line / Series JCM
Lens Type Fixed Focal Length
IP Rating Not Specified
Focal Length 100 mm
ƒ/N ƒ/2.8 - ƒ/32
Image Circle Diameter 11 mm
Image Size Dimensions 8.8 mm x 6.6 mm
Imager Format 2/3″
Light Spectrum Visible
Resolution (MP) 2
Resolution (Pixel Size) 5 μm
Resolution (Line Pairs per mm @ Center) 120
Resolution (Line Pairs per mm @ Corner) 80
Weight 145 Grams
Mount C-Mount
Filter Thread M40.5-0.5
Minimum Object Distance 2000 mm
Magnification 0.05×
Minimum Object Distance with 1mm Ring 1700 mm
Minimum Object Distance with 5mm Ring 1060 mm
Minimum Object Distance with 10mm Ring 740 mm
Minimum Object Distance with 20mm Ring 480 mm
Magnification with 1mm Ring 0.06×
Magnification with 5mm Ring 0.1×
Magnification with 10mm Ring 0.15×
Magnification with 20mm Ring 0.25×
Front Diameter 35.2 mm
Rear Effective Diameter 11.2 mm
Focus Control Manual
Iris Control Manual
Focus Range 2.0 m - ∞
Back Focal Length 19 mm in air
Operating Temperature Range -10 to +50 °C
Storage Temperature Range -20 to +60 °C
Dimensions 42 × 42 × 70 mm
Shooting Range at MOD 168.8(H)×126.6(V)
TV Distortion (%) −0.05
Angle of View @ 1/1.8″ 4.1° × 3.1°
Angle of View @ 1/2″ 3.7° × 2.8°
Angle of View @ 2/3″ 5.0° × 3.8°
