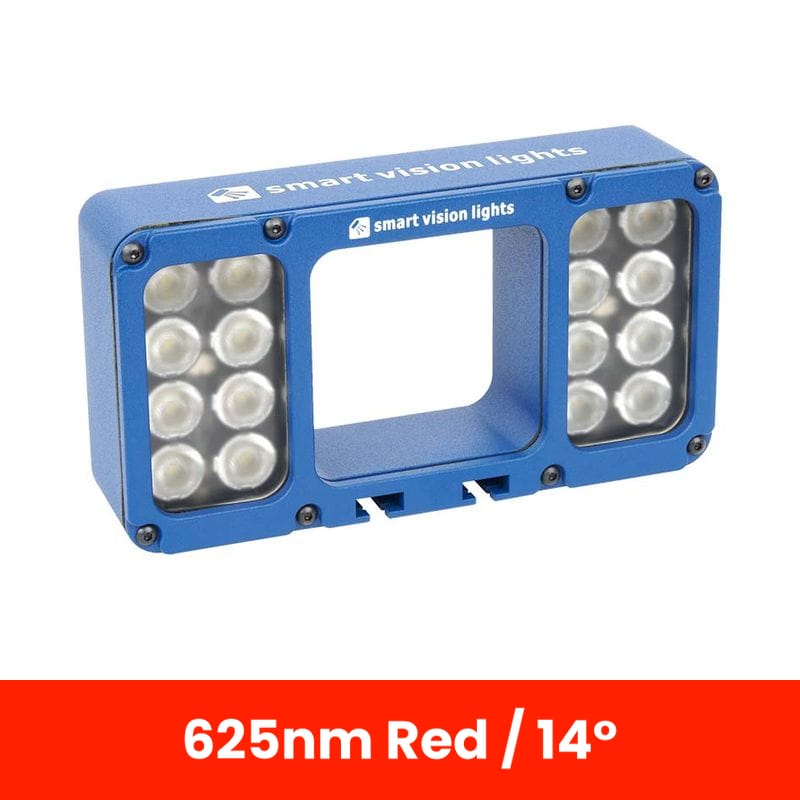

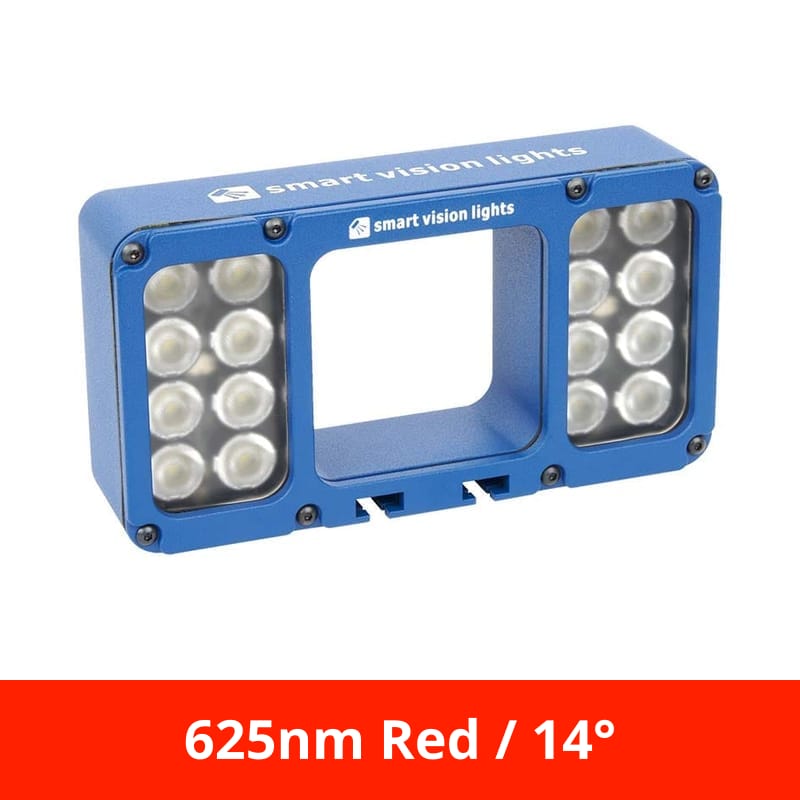

JWL150-MD-625 | JWL150-MD Bright Field Ring Light, 150mm x 80mm, 625nm Red, 14 Degree Lens, Not Polarized

Smart Vision LightsSKU: SVL JWL150-MD-625
Lead Time: 3 Business Days

Price:
Sale price$679.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

The JWL150-MD-625 bright field ring light features SVL's MultiDrive driver, allowing for constant on or overcurrent strobe. It is compatable with many machine vision cameras and can be mounted directly to camera housings using the optional mounting plate accessories. It is designed to provide extra illumination where a camera's internal source is insufficient, and with a working range of 500mm to 2000mm it can provide illumination even over large distances. This fixture can be directly controlled via the camera's trigger output. The JWL150-MD-625 is in the 625nm Red color, features a lens beam angle of 14 Degree and is Not Polarized. The JWL150 series is available in White, 470nm Blue, 625nm Red, and 850nm IR wavelength variants and 10°, 14°, and 30° lens angles. It can be configured with a factory-installed polarizing filter for increased robustness compared to a field-installed filter.

The light features a 5 Pin M12 Male Connector on the end of the light. We recomend our 5PM12 series of cables (5PM12-5, 5PM12-10, or 5PM12-15).

Technical Specifications
