JWL150-DO-WHI-W30-LPI | JWL150-DO High Output Bright Field Ring Light, 150mm x 80mm, WHITE, 30 Degree Lens, Polarized

Smart Vision LightsSKU: SVL JWL150-DO-WHI-W30-LPI
Lead Time: 3 Business Days

Price:
Sale price$752.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

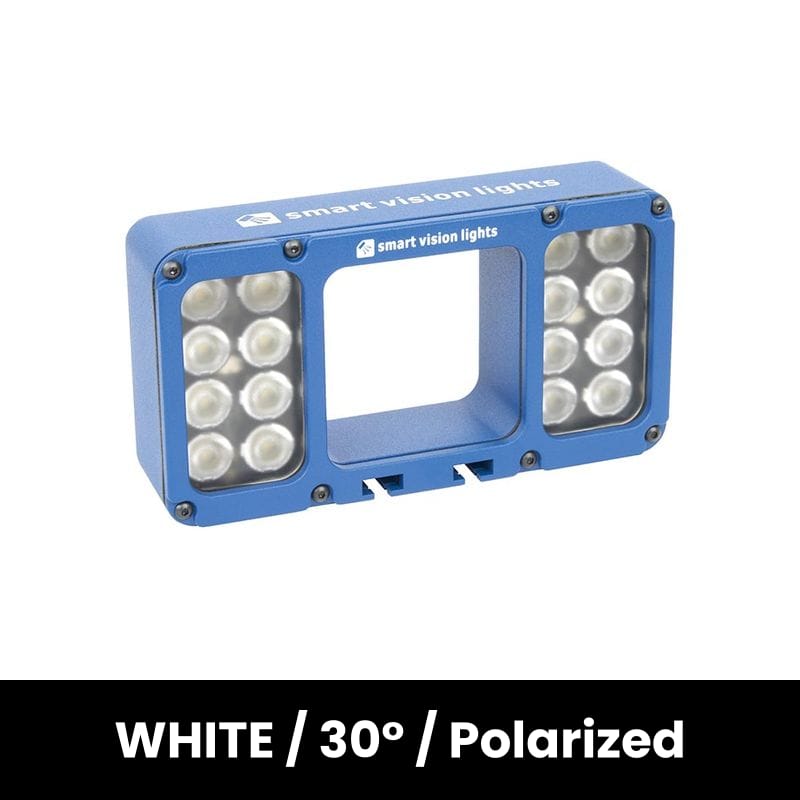

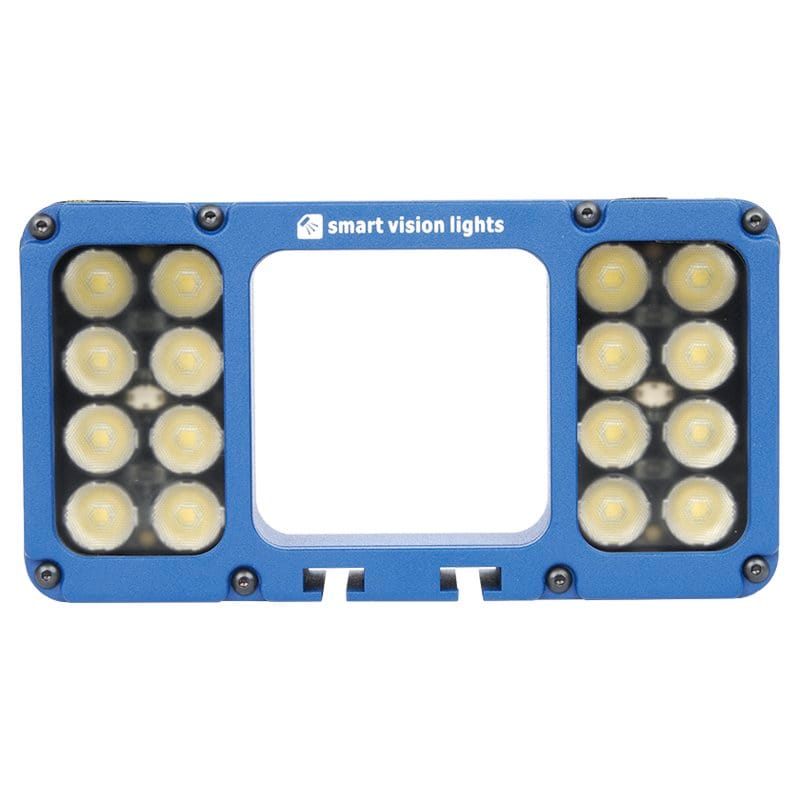

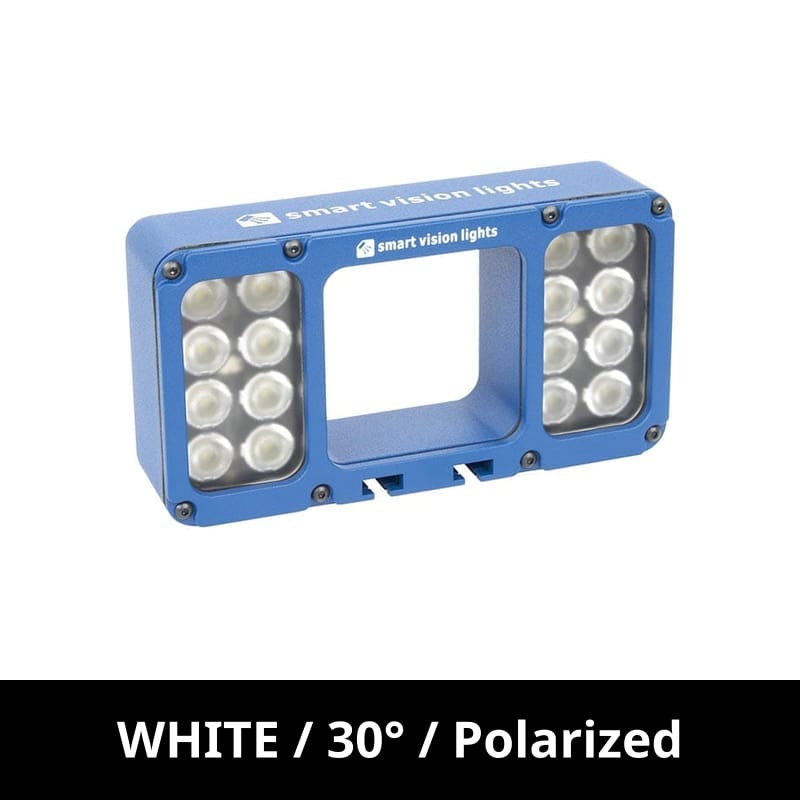

The JWL150-DO-WHI-W30-LPI bright field ring light features SVL's Deca OverDrive with up to 10x the standard light output. It is specially designed for the logistics industry to provide maximum illumination. It is compatable with many machine vision cameras and can be mounted directly to camera housings using the optional mounting plate accessories. It is designed to provide extra illumination where a camera's internal source is insufficient, and with a working range of 500mm to 2000mm it can provide illumination even over large distances. This fixture can be directly controlled via the camera's trigger output. The JWL150-DO-WHI-W30-LPI is in the WHITE color, features a lens beam angle of 30 Degree and is Polarized. The JWL150 series is available in White, 470nm Blue, 625nm Red, and 850nm IR wavelength variants and 10°, 14°, and 30° lens angles. It can be configured with a factory-installed polarizing filter for increased robustness compared to a field-installed filter.

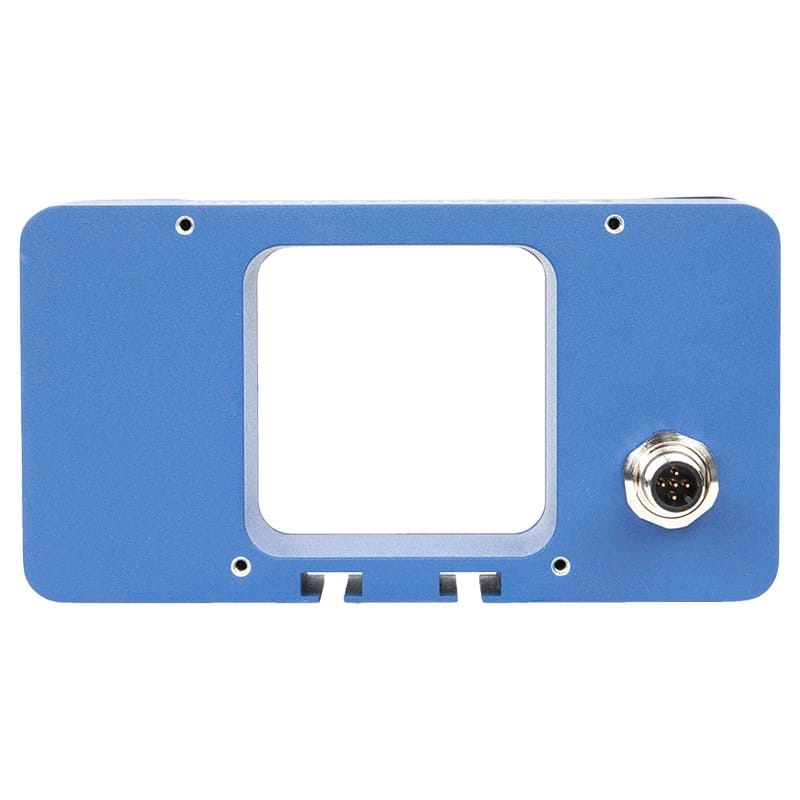

The light features a 5 Pin M12 Male Connector on the end of the light. We recomend our 5PM12 series of cables (5PM12-5, 5PM12-10, or 5PM12-15).

Technical Specifications
