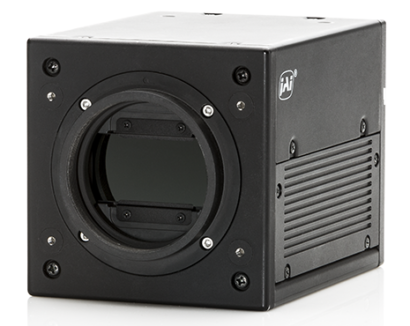

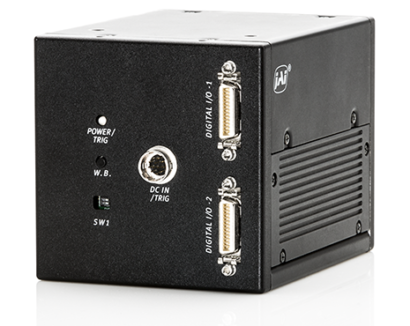

WA-1000D-CL JAI 10GigE Vision Line Scan Camera 30.72 mm Format Multispectral 8192 × 1 px 36 kHz

JAISKU: JAI WA-1000D-CL

Price:
Sale price$28,000.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

The Wave Series WA-1000D-CL camera is a dual-band 1K line scan camera capable of sensing Short Wave InfraRed (SWIR) light. The camera is based on Indium/Gallium/Arsenide (InGaAs) sensor technology and JAI’s prism line scan technology, making it capable of delivering dual-band imaging in the SWIR light spectrum (900 – 1700 nm).

Sweep+ Series: 3 and 4-sensor color line scan cameras

The Sweep+ Series comprises 3-sensor R-G-B and 4-sensor R-G-B-NIR or R-G-B-SWIR line scan cameras for industrial machine vision applications. They features state-off-the-art prism technology providing the best possible performance, precision, and versatility for line scan imaging in continuous production flows.

Technical Specifications

Product Line Sweep+ Series
Model WA-1000D-CL
Type Line Scan
Color/Monochrome Multispectral
Light Spectrum 4-Bands R-G-B + NIR
Resolution N/A
Resolution WxH 8192 x 1 px
Frame Rate/Line Rate 36 kHz
ROI Yes
Interface 10 Gbps GigE Vision
Sensors 4xCMOS RGB/NIR
Sensor Model Custom
Optical Format 30.72 mm
Cell Size 3.75 x 5.78 µm
Shutter Global shutter
Sensor Diagonal 30.8 mm
Active Sensor Dimensions 30.8 mm
Camera Dimensions 90 x 90 x 120 mm
Weight 980 g
Video
Lens Mount M52-Mount
Power Consumption 19.3 Watt
Operating Temperature (Ambient) -5°C to +45°C
