Description

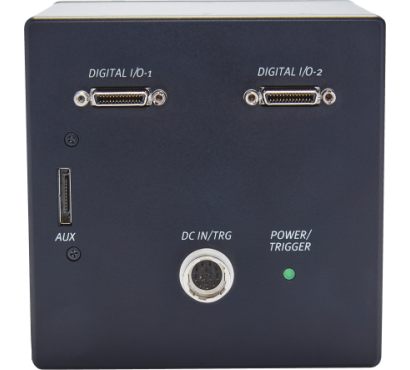

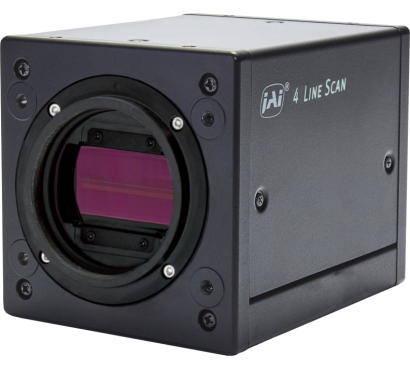

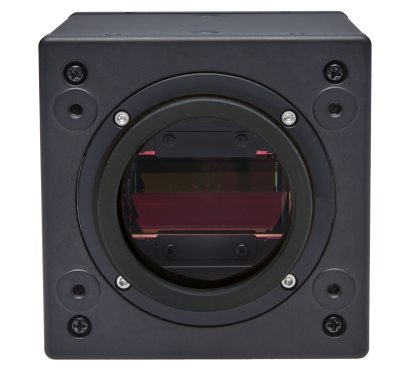

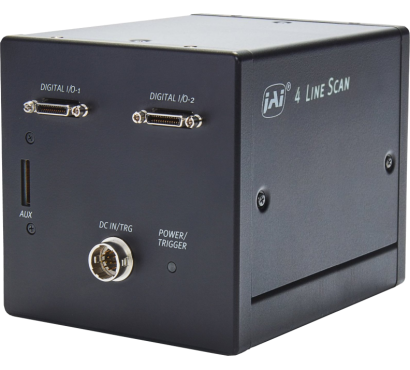

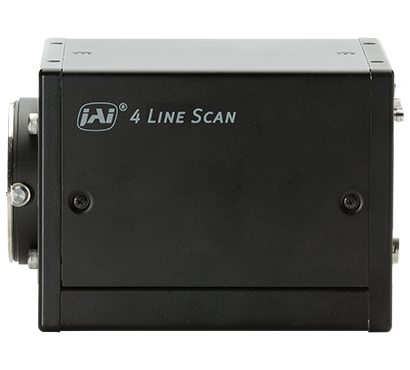

The JAI Sweep+ SW-4010Q-MCL is a prism-based industrial line scan camera with four image sensors. The camera allows for simultaneous collection of red, green and blue image data on three separate CMOS sensors, plus a fourth sensor that collects image data from the Short Wave InfraRed (SWIR) spectrum using a sensor based on indium gallium arsenide (InGaAs) technology.
Sweep+ Series: 3 and 4-sensor color line scan cameras
The Sweep+ Series comprises 3-sensor R-G-B and 4-sensor R-G-B-NIR or R-G-B-SWIR line scan cameras for industrial machine vision applications. They features state-off-the-art prism technology providing the best possible performance, precision, and versatility for line scan imaging in continuous production flows.
Technical Specifications
Product Line | Sweep+ Series |
Model | SW-4010Q-MCL-M52 |
Type | Line Scan |
Color/Monochrome | Multispectral |
Light Spectrum | 4-Bands R-G-B + SWIR |
Resolution | N/A |
Resolution WxH | 4096 x 1 px / 1024 x 1 px |
Frame Rate/Line Rate | 39 kHz |
ROI | Yes |
Interface | Mini Camera Link |
Sensors | 3x CMOS + 1x InGaAs |
Sensor Model | Custom |
Optical Format | 30.72 mm |
Cell Size | 7.5 x 7.5 µm / 25.0 x 25.0 µm |
Shutter | Global shutter |
Sensor Diagonal | 30.8 mm |
Active Sensor Dimensions | 30.8 mm / 25.6 mm |
Camera Dimensions | 90 x 90 x 120 mm |
Weight | 900 g |
Video | 8/10/12-bit |
Lens Mount | M52-Mount |
Power Consumption | 19.3 Watt |
Operating Temperature (Ambient) | -5°C to +45°C |
