SW-4000T-MCL-F JAI Camera Link Line Scan Camera 30.72 mm Format Color 4099 × 1 px 66 kHz

JAISKU: JAI SW-4000T-MCL-F

Price:
Sale price$7,600.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

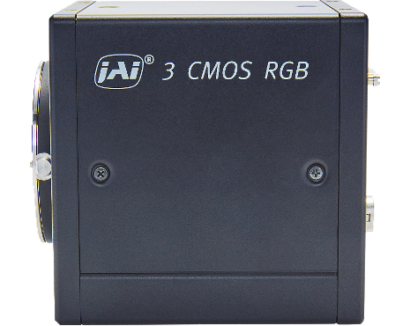

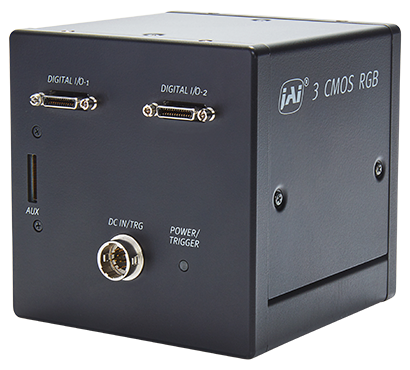

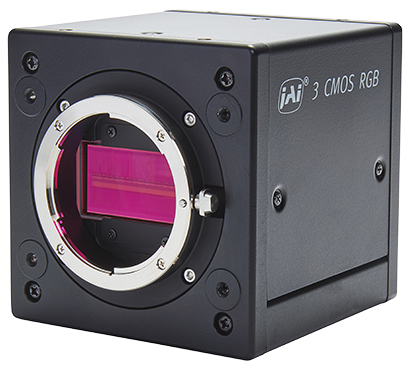

The SW-4000T-MCL is a 4K prism-based industrial RGB color line scan camera with 4,096 pixels per line and a fast, 67.7 kHz line rate. Its 3-CMOS prism design features three separate imagers that simultaneously capture red, green, and blue spectral wavebands. Included is an advanced set of features providing the best possible performance and precision for web-based or continuous color imaging applications.

Sweep Series: Monochrome and trilinear line scan cameras

JAI€™s Sweep Series includes both monochrome and trilinear color line scan cameras with line rates that are among the fastest available for their type and resolution. The Sweep SW-4000TL trilinear models deliver outstanding color line scan images for applications that don’t require the ultimate image precision provided by the Sweep+ Series.

Technical Specifications

Product Line Sweep Series
Model SW-4000T-MCL-F
Type Line Scan
Color/Monochrome Color
Light Spectrum Visible
Resolution N/A
Resolution WxH 4099 x 1 px
Frame Rate/Line Rate 66 kHz
ROI N/A
Interface Mini Camera Link
Sensors 3xCMOS RGB
Sensor Model Custom
Optical Format 30.72 mm
Cell Size 7.5 x 7.5 µm / 25.0 x 25.0 µm
Shutter Global shutter
Sensor Diagonal 30.8 mm
Active Sensor Dimensions 30.8 mm
Camera Dimensions 90 x 90 x 90 mm
Weight 765 g
Video
Lens Mount F-Mount
Power Consumption 9.3 Watt
Operating Temperature (Ambient) -5°C to +45°C
