SW-4000Q-SFP-M52 JAI 10GigE Vision Line Scan Camera 30.72 mm Format Multispectral 4097 × 1 px 72 kHz

JAISKU: JAI SW-4000Q-SFP-M52
Lead Time: 4-12 Weeks

Price:
Sale price$12,950.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

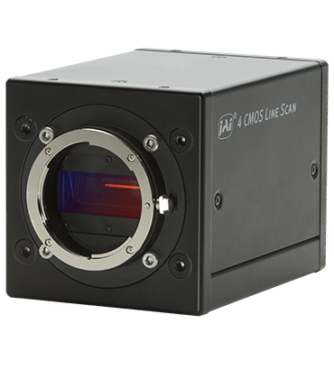

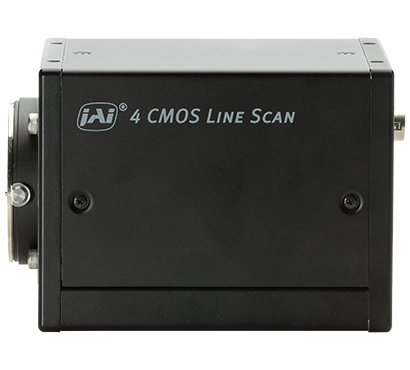

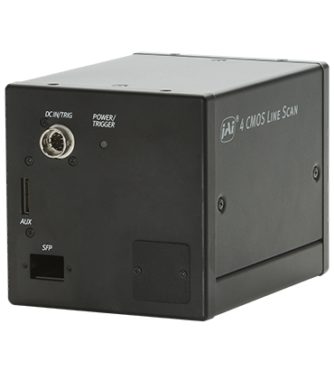

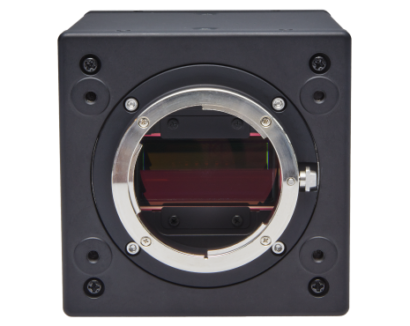

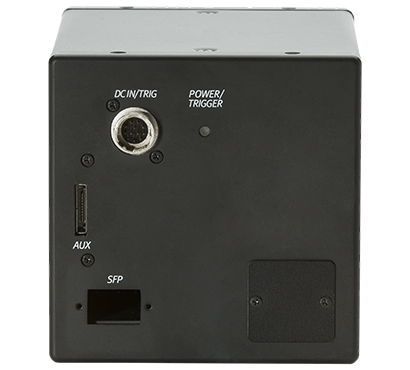

The SW-4000Q-SFP is a 4-CMOS prism-based industrial RGB/NIR multispectral line scan camera with four separate sensors for simultaneously capturing red, green, blue and near infrared spectral wavebands. Besides delivering supreme RGB color data, the NIR image makes it possible to identify an even wider set of defects on inspected objects. The camera has 4,096 pixels per line and a fast, 72 kHz line rate. Included is an advanced set of features providing the best possible performance and precision for web-based or continuous color/NIR imaging applications. The camera runs on a 10 Gigabit Ethernet network configuration and features the enhanced Small Form-factor Pluggable optical interface (SFP+).

Sweep Series: Monochrome and trilinear line scan cameras

JAI€™s Sweep Series includes both monochrome and trilinear color line scan cameras with line rates that are among the fastest available for their type and resolution. The Sweep SW-4000TL trilinear models deliver outstanding color line scan images for applications that don’t require the ultimate image precision provided by the Sweep+ Series.

Technical Specifications

Product Line Sweep Series
Model SW-4000Q-SFP-M52
Type Line Scan
Color/Monochrome Multispectral
Light Spectrum 4-Bands R-G-B + NIR
Resolution N/A
Resolution WxH 4097 x 1 px
Frame Rate/Line Rate 72 kHz
ROI Yes
Interface SFP+ over 10 Gigabit Ethernet
Sensors 4xCMOS RGB/NIR
Sensor Model Custom
Optical Format 30.72 mm
Cell Size 7.5 x 7.5 µm / 25.0 x 25.0 µm
Shutter Global shutter
Sensor Diagonal 30.8 mm
Active Sensor Dimensions 30.8 mm
Camera Dimensions 90 x 90 x 120 mm
Weight 980 g
Video 8/10-bit
Lens Mount M52-Mount
Power Consumption 17.4 Watt
Operating Temperature (Ambient) -5°C to +45°C
