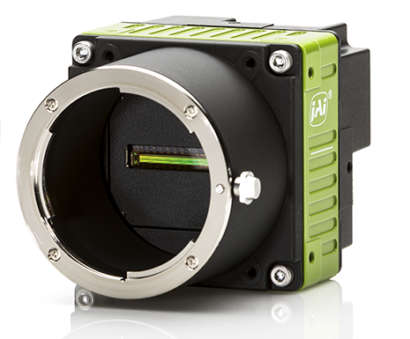

SW-4000M-PMCL-M42A JAI Camera Link Line Scan Camera 30.72 mm Format Monochrome 4096 × 1 px 200 kHz

JAISKU: SW-4000M-PMCL-M42A
Lead Time: 4-12 Weeks

Price:
Sale price$1,860.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us.

Description

This price includes tariffs, based on the applicable tariff charges. This change is effective as of 04/30/2025. Pricing is subject to change and may fluctuate.

The SW-4000M-PMCL is a high speed monochrome line scan camera featuring a custom-designed 4K monochrome line sensor capable of running at up to 200,000 lines per second. An innovative built-in function allows users to switch between large and small pixel well sizes to tailor the responsivity and dynamic range of the camera to fit the speed and illumination requirements of their application.

Spark Series: High resolution area scan cameras

Spark Series area scan cameras are the perfect choice for machine vision applications demanding high quality images with the highest possible throughput. They feature the latest CMOS imagers delivering high resolution images at speeds as much as 10 times faster than traditional CCD cameras. For example, 45-megapixel (MP) models can deliver over 50 fps output while some 5-MP models run at 250 fps or more. Using the region-of-interest (ROI) feature, even higher frame rates can be achieved.

Technical Specifications

Product Line Spark Series
Model SW-4000M-PMCL-M42A
Type Line Scan
Color/Monochrome Monochrome
Light Spectrum Visible
Resolution N/A
Resolution WxH 4096 x 1 px
Frame Rate/Line Rate 200 kHz
ROI N/A
Interface Mini Camera Link (PoCL)
Sensors 1xCMOS
Sensor Model Custom
Optical Format 30.72 mm
Cell Size 7.5 x 7.5 µm
Shutter Global shutter
Sensor Diagonal 30.8 mm
Active Sensor Dimensions 30.8 mm
Camera Dimensions 62 x 62 x 84 mm
Weight 320 g
Video 8/10-bit
Lens Mount M42A-Mount
Power Consumption 5.22 Watt
Operating Temperature (Ambient) -5°C to +45°C
