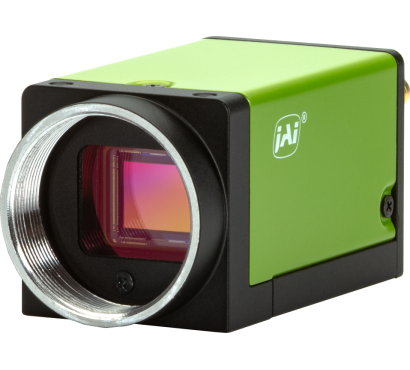

GOX-8105M-CXP JAI CoaXPress Area Scan Camera 2/3″ Format Monochrome 8.1 MP 2856 × 2848 px 71 FPS

JAISKU: JAI GOX-8105M-CXP
Lead Time: 4-12 Weeks

Price:
Sale price$1,149.00 USD

Shipping calculated at checkout

 More payment options
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

This price includes tariffs, based on the applicable tariff charges. This change is effective as of 04/30/2025. Pricing is subject to change and may fluctuate.

The GOX-8105M-CXP is a small, attractively-priced industrial area scan camera offering a blend of features, image quality, and industrial grade reliability perfect for the next generation of machine vision systems. Featuring a state-of-the-art Sony Pregius S sensor with backside illumination (BSI) technology, and a CoaXPress 6.25 Gbps interface, the GOX-8105M-CXP delivers 8.1-megapixel monochrome images at up to 71 fps.

Go-X Series: Compact, attractively-priced area scan cameras with industrial grade reliability

The Go-X Series offers compact, attractively-priced area scan cameras with a blend of features, image quality and industrial grade reliability that is in high demand for the next generation of machine vision systems. The Go-X Series incorporates the most popular Sony Pregius and Pregius S global shutter CMOS sensors, and several Starvis CMOS sensors with rolling shutter technology. Resolutions range from 2.3 to 24.5 megapixels with a choice of USB3 Vision, GigE Vision (1000BASE-T or 5GBASE-T), or CoaXPress interfaces.

Technical Specifications

Product Line Go-X Series
Model GOX-8105M-CXP
Type Area Scan
Color/Monochrome Monochrome
Light Spectrum Visible + NIR
Resolution 8.1 MP
Resolution WxH 2856 x 2848 px
Frame Rate/Line Rate 71 fps
ROI Yes
Interface CoaXPress-1-Cable (PoCXP)
Sensors 1xCMOS
Sensor Model IMX546 Pregius S
Optical Format 2/3 inch
Cell Size 2.74 x 2.74 µm
Shutter Global shutter
Sensor Diagonal 11.1 mm
Active Sensor Dimensions 7.8 x 7.8 mm
Camera Dimensions 29 x 29 x 55 mm
Weight 65 g
Video 8/10/12-bit
Lens Mount C-Mount
Power Consumption 4.1 Watt
Operating Temperature (Ambient) -5°C to +45°C
