Description

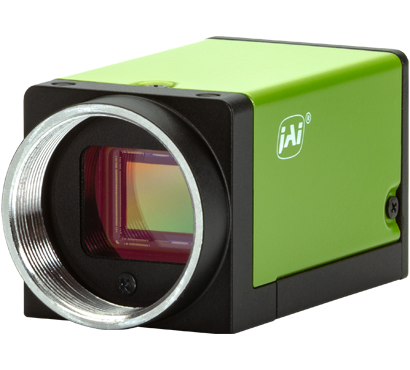

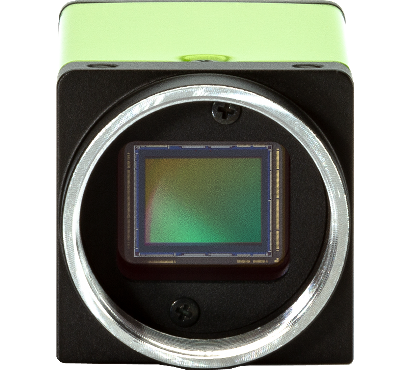

The GOX-5105C-PGE is a small, attractively-priced industrial area scan camera offering a blend of features, image quality, and industrial grade reliability perfect for the next generation of machine vision systems. The camera features a state-of-the-art Sony Pregius S sensor with backside illumination (BSI) technology, and a GigE Vision 2.0 interface providing 5.1-megapixel color images at up to 23 fps. Higher frame rates are possible using JAI's "Xpress" lossless compression function.
Go-X Series: Compact, attractively-priced area scan cameras with industrial grade reliability
The Go-X Series offers compact, attractively-priced area scan cameras with a blend of features, image quality and industrial grade reliability that is in high demand for the next generation of machine vision systems. The Go-X Series incorporates the most popular Sony Pregius and Pregius S global shutter CMOS sensors, and several Starvis CMOS sensors with rolling shutter technology. Resolutions range from 2.3 to 24.5 megapixels with a choice of USB3 Vision, GigE Vision (1000BASE-T or 5GBASE-T), or CoaXPress interfaces.
Technical Specifications
Product Line | Go-X Series |
Model | GOX-5105C-PGE |
Type | Area Scan |
Color/Monochrome | Color |
Light Spectrum | Visible |
Resolution | 5.1 MP |
Resolution WxH | 2472 x 2064 px |
Frame Rate/Line Rate | 23 fps |
ROI | Yes |

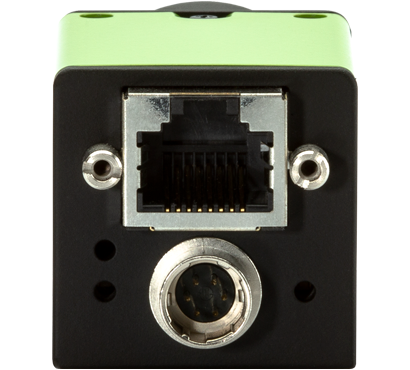

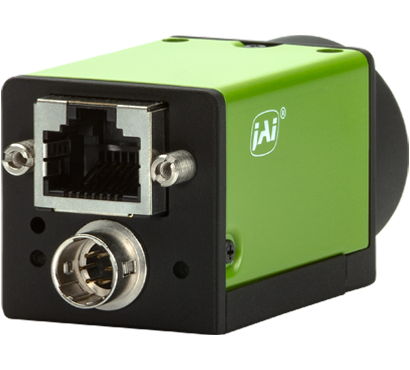

Interface | GigE Vision 1-Cable (PoE) |
Sensors | 1xCMOS |
Sensor Model | IMX547 Pregius S |
Optical Format | 1/1.8 inch |
Cell Size | 2.74 x 2.74 µm |
Shutter | Global shutter |
Sensor Diagonal | 8.8 mm |
Active Sensor Dimensions | 6.8 x 5.7 mm |
Camera Dimensions | 29 x 29 x 55 mm |
Weight | 65 g |
Video | 8/10/12-bit |
Lens Mount | C-Mount |
Power Consumption | 4.1 Watt |
Operating Temperature (Ambient) | -5°C to +45°C |
