AP-3200T-10GE JAI 10GigE Vision Area Scan Camera 1/1.8″ Format Color 3.2 MP 2064 × 1544 px 106 FPS

JAISKU: AP-3200T-10GE
Lead Time: 4-12 Weeks

Price:
Sale price$5,700.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

This price includes tariffs, based on the applicable tariff charges. This change is effective as of 04/30/2025. Pricing is subject to change and may fluctuate.

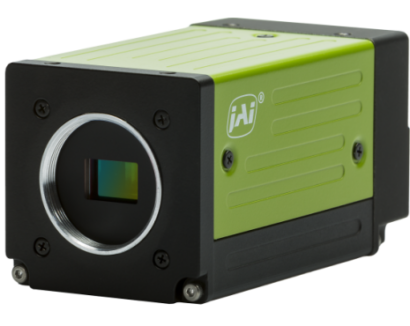

The Apex AP-3200T-10GE is a 3-CMOS prism-based industrial R-G-B area scan camera featuring a high-speed 10 GigE interface capable of providing 3 x 3.2 megapixel images at up to 106 frames/second. It provides better color fidelity and spatial resolution than traditional Bayer color cameras and is designed for color-critical imaging and inspection tasks in machine vision, life science and microscopy applications. The 10 GigE interface supports backwards compatibility for networks or hosts running at slower GigE speeds.

Apex Medical & Life Sciences Solutions

The Apex Series cameras are 3-sensor R-G-B prism cameras that separate the incoming light into red, green and blue wavelengths, which are directed to three separate image sensors. The cameras deliver exceptionally accurate R-G-B raw image data ideal for demanding color machine vision applications across a range of industries including pharmaceutical, electronics, printing/packaging and imaging in microscopy and medical diagnostics equipment.

Technical Specifications

Product Line Apex Series
Model AP-3200T-10GE
Type Area Scan
Color/Monochrome Color
Light Spectrum Visible
Resolution 3.2 MP
Resolution WxH 2064 x 1544 px
Frame Rate/Line Rate 106 fps
ROI Yes
Interface 10 Gbps GigE Vision
Sensors 3xCMOS RGB
Sensor Model IMX252
Optical Format 1/1.8 inch
Cell Size 3.45 x 3.45 µm
Shutter Global shutter
Sensor Diagonal 8.9 mm
Active Sensor Dimensions 7.1 x 5.3 mm
Camera Dimensions 62 x 62 x 86.5 mm
Weight 270 g
Video 8/10/12-bit
Lens Mount C-Mount
Power Consumption 11.6 Watt
Operating Temperature (Ambient) -5°C to +45°C
