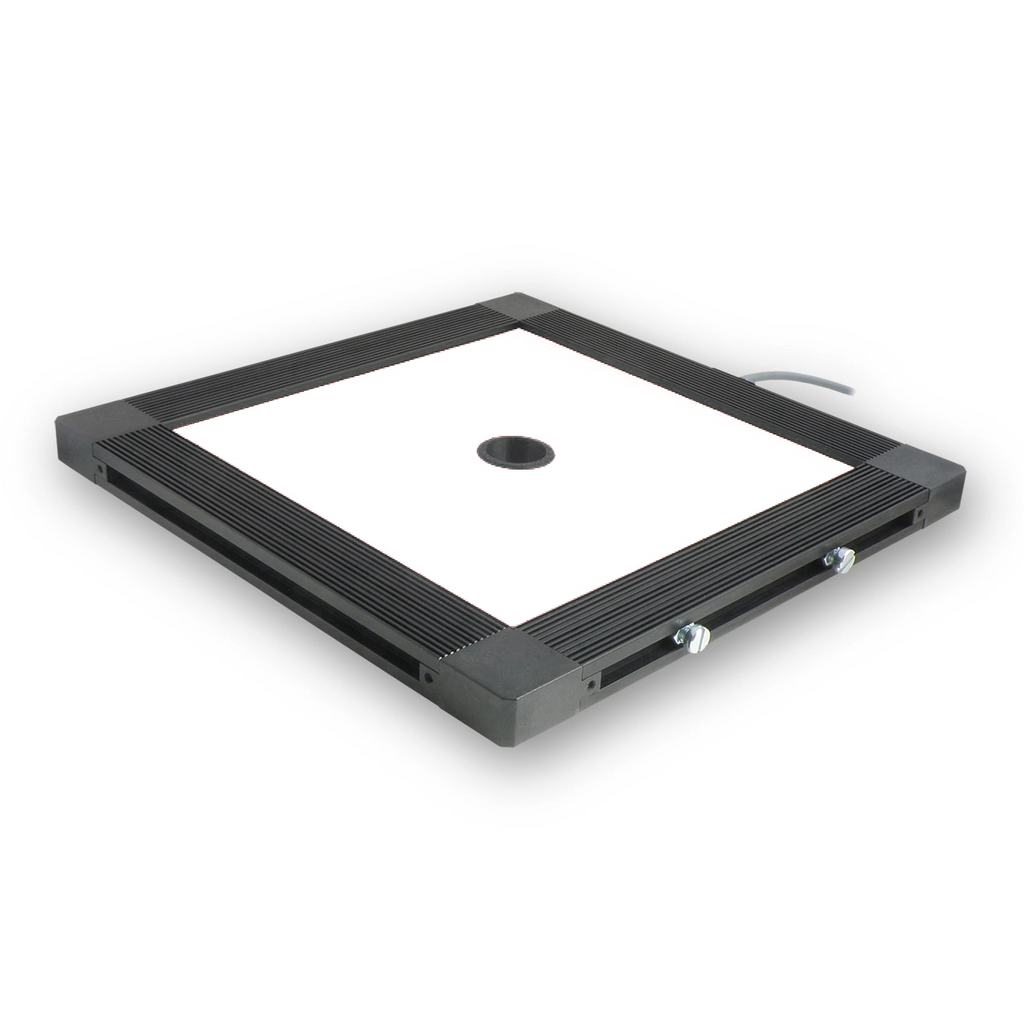

FX1818 EdgeLit Diffuse Light, 18 in x 18 in

Advanced IlluminationSKU: FX1818D-455I3S
Lead Time: 2 Weeks

Color: Royal Blue (455nm)
Driver: ICS 3S (I3S)
Price:
Sale price$3,055.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

Edge-Lit Diffuse Lights - FX Series

FX1818 Specifications:

Brand Advanced Illumination
Series FX
Wavelength VARIES
Color VARIES
Driver I3S
Ingress Protection IP50
Length 18 in
Width 18 in
Inner Diameter 1 in
Weight 5591g
Can Be Strobed Yes
Can Be Overdrive Strobed Yes
Can Be Constantly On Yes
Can Be Dimmed Dimmable
Connection 2M Flying Lead

Full Description

Edge-lit Flat Diffuse Lights provide a space saving design for the illumination of highly reflective objects.

Custom aperture diameters are available from ¼� to 3� (6.4 to 76mm) in ¼� increments.

Contained within a thinner housing than our Back-lit Flat Diffuse Lights (FD Series)

Available in visible and infrared wavelengths.

Provides light intensities of up to 9.2kLux at 4� (102mm) standoff.

Pre-engineered, expandable sizes are available from 3�x 3� (76mm) to 24�x 24� (610mm) in 1� (25mm) increments.

This series comes with LB111 Mounting Brackets.

General Specs

Electrical Specifications

625 - 0.062 A Max per Linear Inch

455, 530, WHI - 0.103 A Max per Linear Inch

850 - 0.05 A Max per Linear Inch
Normal Operating Temperature

0 - 60°C

Weight 4" X 4" unit = 553.4g (19.52oz)
Standard Cable Information 2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.
Photobiological Risk Factor Exempt Applicable Wavelengths: 850
Group 1 (Low Risk) Applicable Wavelengths: 455, 530, 625, WHI
Compliance CE, RoHS, IEC 62471
IP Rating IP50
Lumen Maintenance L70 = 50,000 Hours



Available Wavelengths

Wavelength
Color
Description

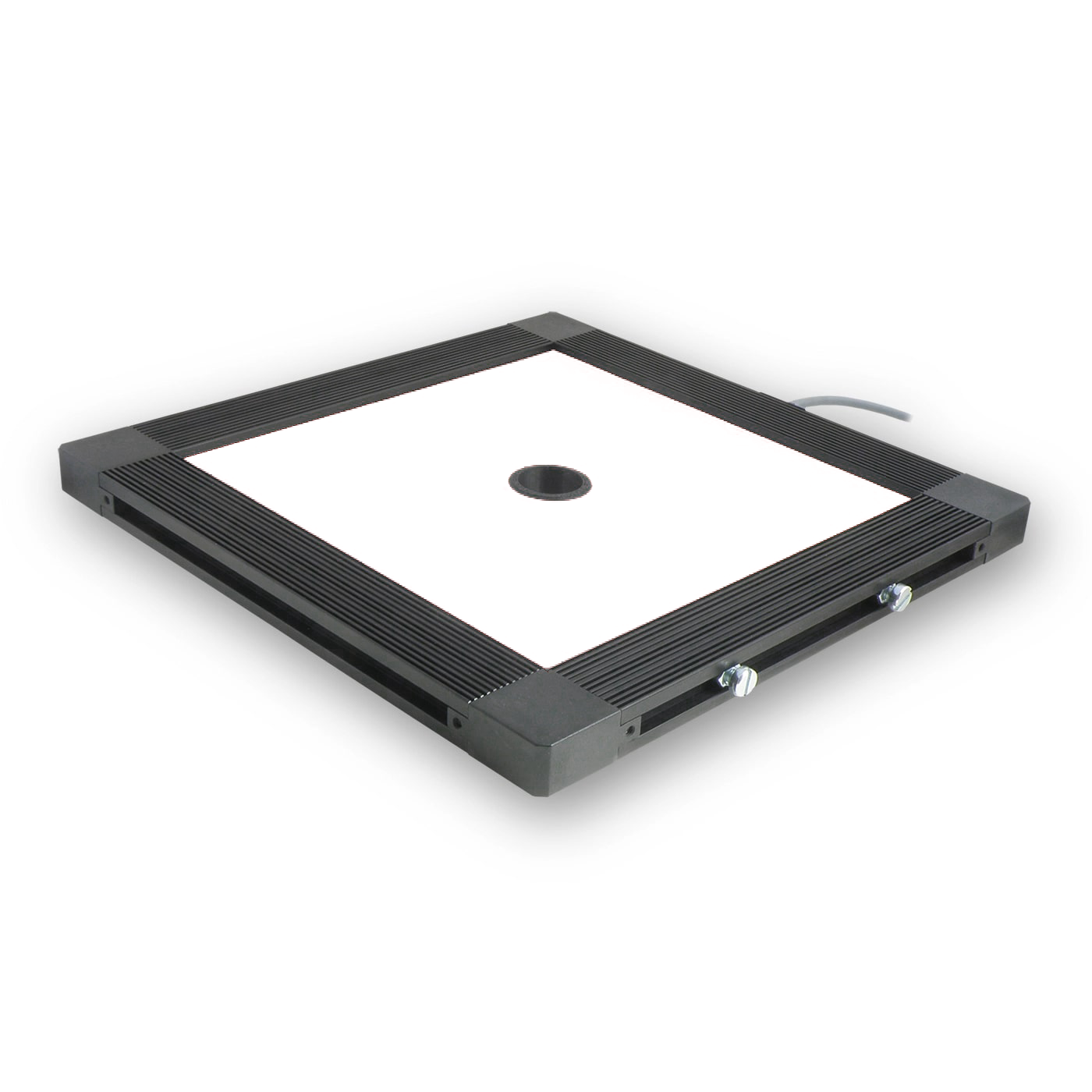

WHITE
Advanced Illumination White Lights
WHITE
455

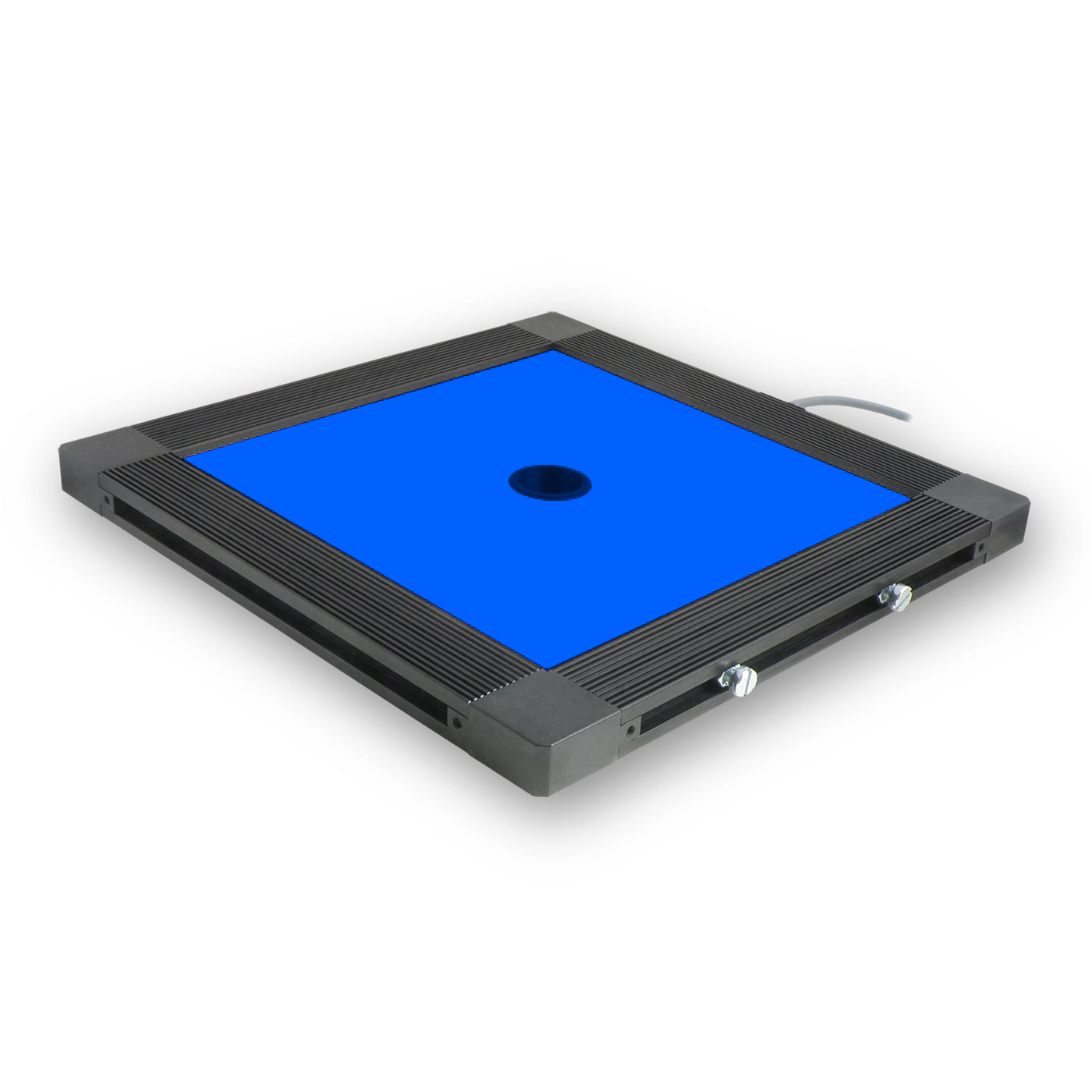

455nm Royal Blue
530
Advanced Illumination 530nm Green Light

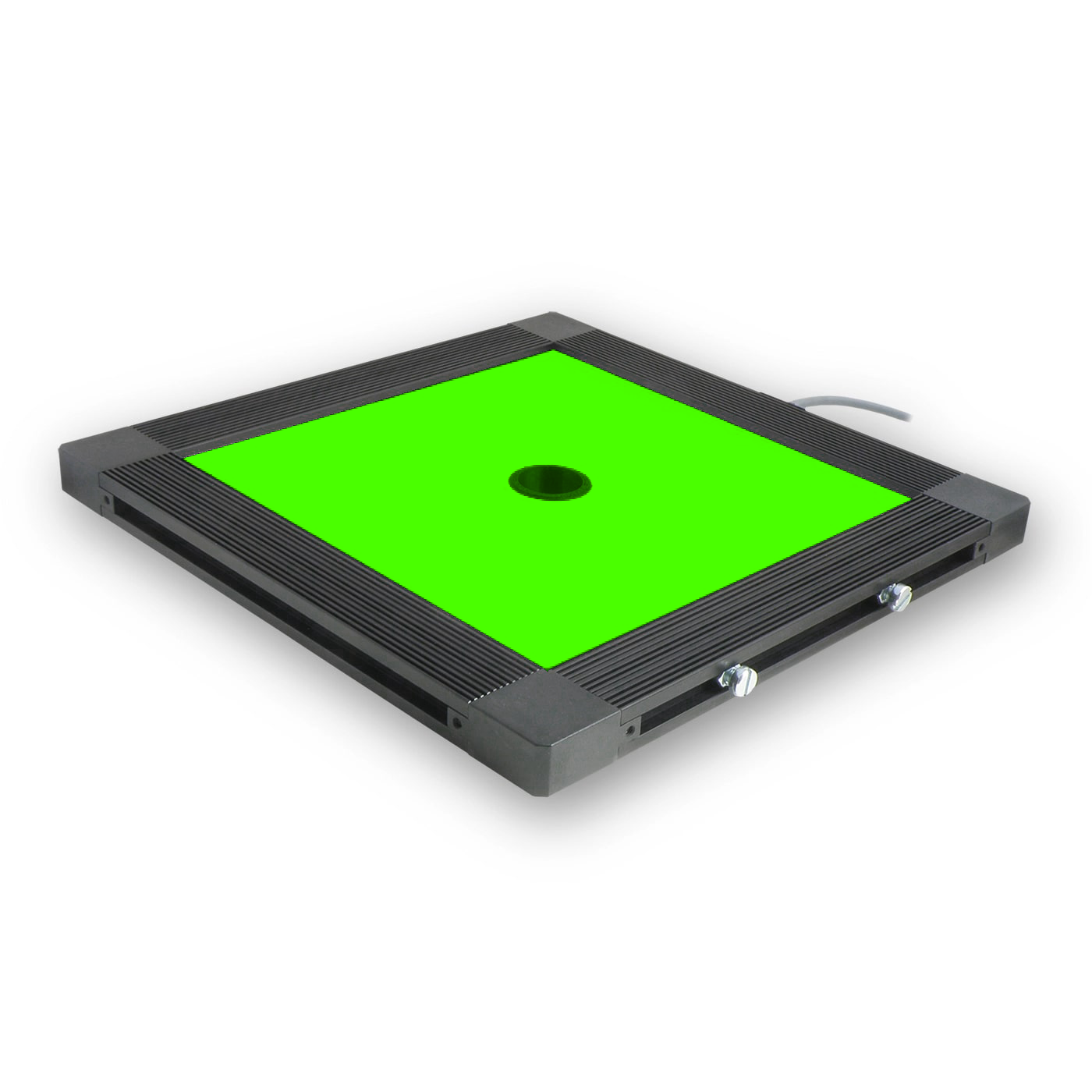

530nm Green
625
Advanced Illumination 625nm Red Orange Light

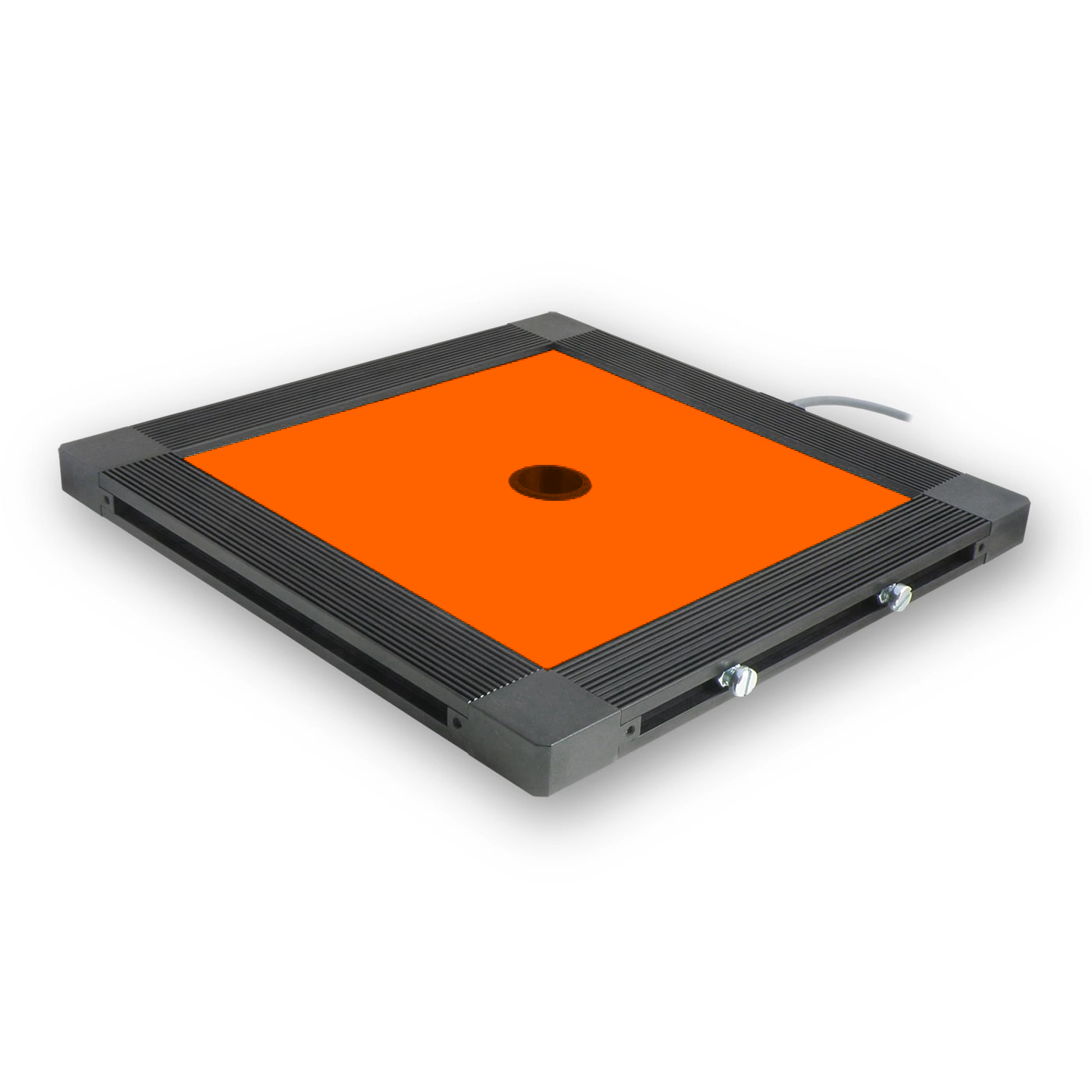

625nm Red Orange
850
Advanced Illumination 850nm Infra-Red (IR) Light
850nm Infra-Red (IR)

Additional Wavelengths are available upon request by contacting Machine Vision Direct.

Mechanical Specs

 FX Series Edge-Lit Diffuse Lights Mechanical Specs | Advanced Illumination



 Optical Specs

 FX Series Edge-Lit Diffuse Lights Optical Specs | Advanced Illumination
FX Series Edge-Lit Diffuse Lights Optical Specs | Advanced Illumination


Electrical Specs

 FX Series Edge-Lit Diffuse Lights Electrical Specs | Advanced Illumination


Control Specs

 FX Series Edge-Lit Diffuse Lights Control Specs | Advanced Illumination

Part No Key

 FX Series Edge-Lit Diffuse Lights Part No Key | Advanced Illumination

Advanced Illumination FX1818 Downloads:

Advanced Illumination FX1818 Datasheet | Machine Vision Direct
Advanced Illumination FX1818 CAD PDF | Machine Vision Direct
Advanced Illumination FX1818 CAD DXF | Machine Vision Direct
Advanced Illumination FX1818 CAD STEP MODEL | Machine Vision Direct
