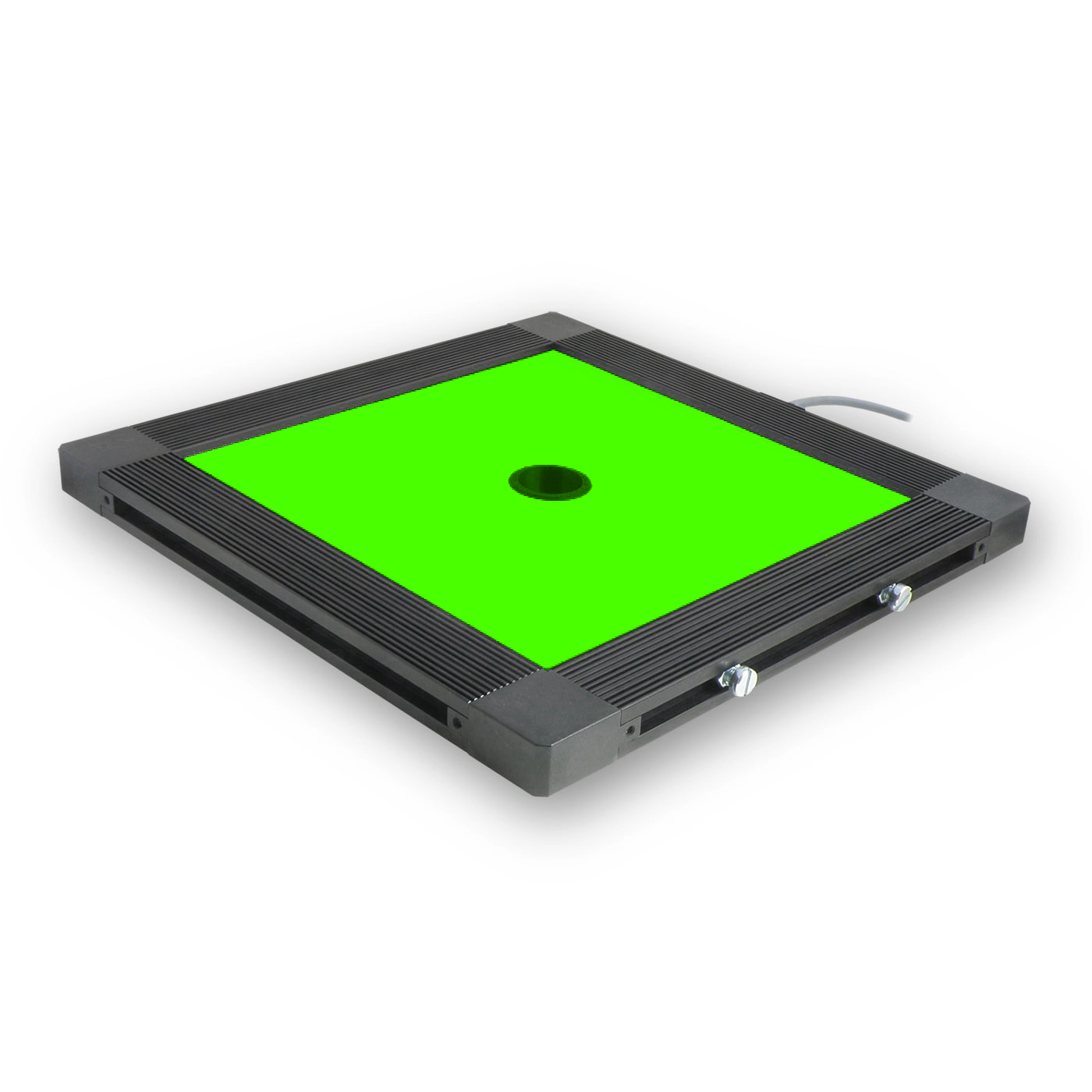

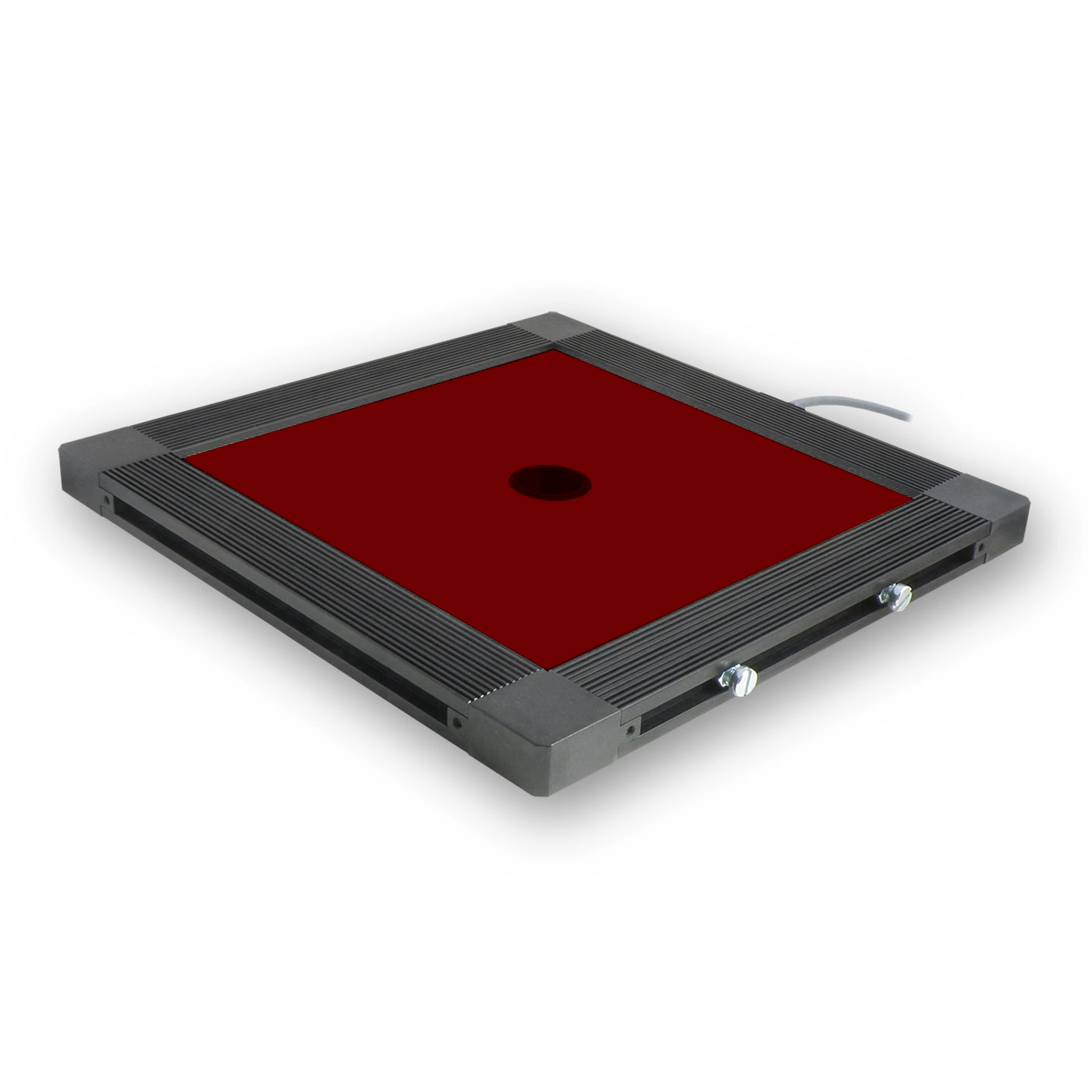

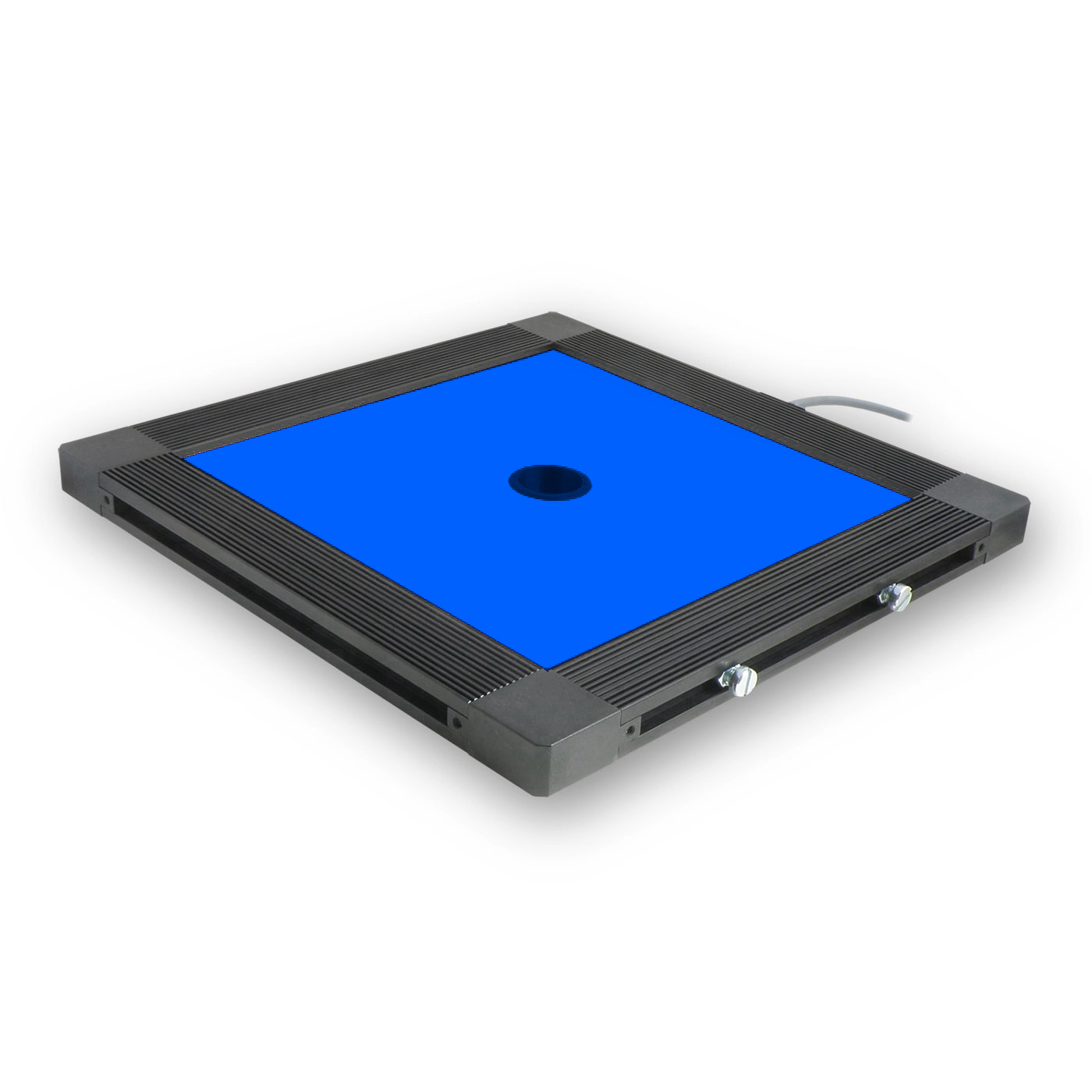

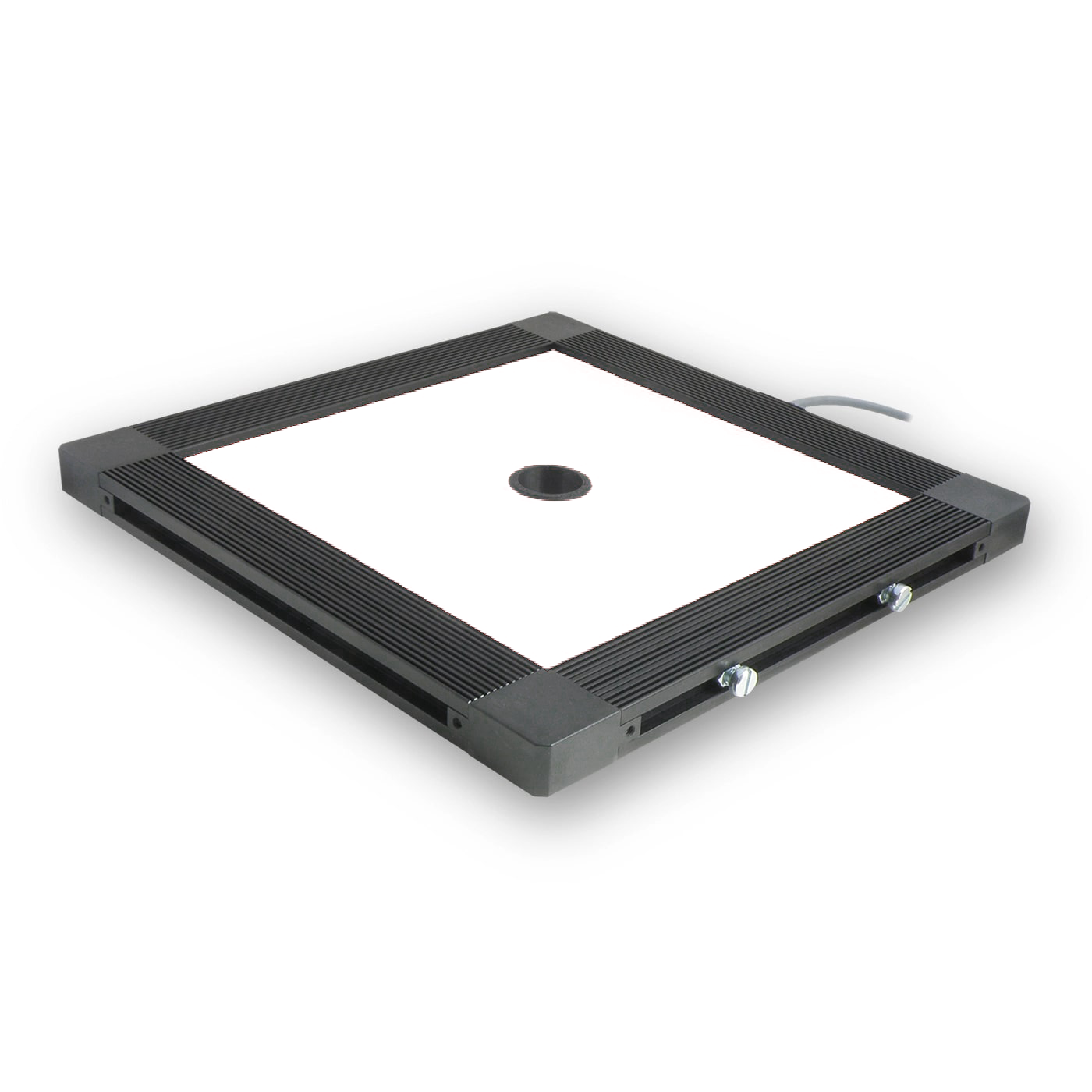

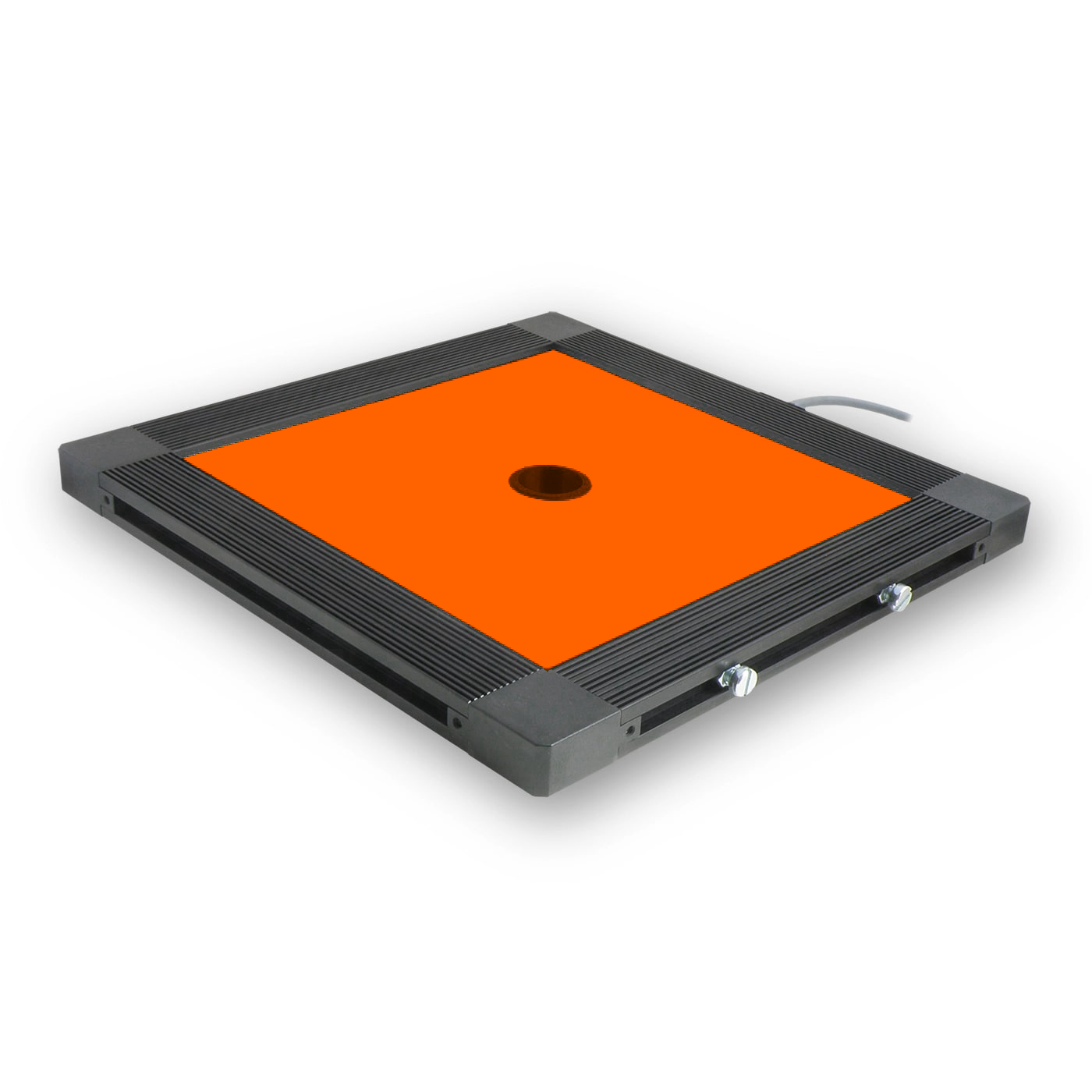

Edge-Lit Diffuse Lights - FX Series
FX1616 Specifications:
Brand | Advanced Illumination |
Series | FX |
Wavelength | VARIES |
Color | VARIES |
Driver | I3S |
Ingress Protection | IP50 |
Length | 16 in |
Width | 16 in |
Inner Diameter | 1 in |
Weight | 4508g |
Can Be Strobed | Yes |
Can Be Overdrive Strobed | Yes |
Can Be Constantly On | Yes |
Can Be Dimmed | Dimmable |
Connection | 2M Flying Lead |
Full Description
Edge-lit Flat Diffuse Lights provide a space saving design for the illumination of highly reflective objects.
Custom aperture diameters are available from ¼� to 3� (6.4 to 76mm) in ¼� increments.
Contained within a thinner housing than our Back-lit Flat Diffuse Lights (FD Series)
Available in visible and infrared wavelengths.
Provides light intensities of up to 9.2kLux at 4� (102mm) standoff.
Pre-engineered, expandable sizes are available from 3�x 3� (76mm) to 24�x 24� (610mm) in 1� (25mm) increments.
This series comes with LB111 Mounting Brackets.
General Specs
Electrical Specifications |
625 - 0.062 A Max per Linear Inch 455, 530, WHI - 0.103 A Max per Linear Inch 850 - 0.05 A Max per Linear Inch |
Normal Operating Temperature |
0 - 60°C |
Weight | 4" X 4" unit = 553.4g (19.52oz) |
Standard Cable Information | 2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain. |
Photobiological Risk Factor |
Exempt Applicable Wavelengths: 850 Group 1 (Low Risk) Applicable Wavelengths: 455, 530, 625, WHI |
Compliance | CE, RoHS, IEC 62471 |
IP Rating | IP50 |
Lumen Maintenance | L70 = 50,000 Hours |
Available Wavelengths
Wavelength |
Color |
Description |
WHITE |
![]() |
WHITE |
455 |
![]() |
455nm Royal Blue |
530 |
![]() |
530nm Green |
625 |
![]() |
625nm Red Orange |
850 |
![]() |
850nm Infra-Red (IR) |
Additional Wavelengths are available upon request by contacting Machine Vision Direct.
Mechanical Specs
![]() |
Optical Specs
![]() |
![]() |
Electrical Specs
![]() |
Control Specs
![]() |
Part No Key
![]() |
