Edge-Lit Diffuse Lights - FX Series
|Inner Diameter||1 in|
|Can Be Strobed||Yes|
|Can Be Overdrive Strobed||Yes|
|Can Be Constantly On||Yes|
|Can Be Dimmed||Dimmable|
|Connection||2M Flying Lead|
Edge-lit Flat Diffuse Lights provide a space saving design for the illumination of highly reflective objects.
Custom aperture diameters are available from ¼� to 3� (6.4 to 76mm) in ¼� increments.
Contained within a thinner housing than our Back-lit Flat Diffuse Lights (FD Series)
Available in visible and infrared wavelengths.
Provides light intensities of up to 9.2kLux at 4� (102mm) standoff.
Pre-engineered, expandable sizes are available from 3�x 3� (76mm) to 24�x 24� (610mm) in 1� (25mm) increments.
This series comes with LB111 Mounting Brackets.
625 - 0.062 A Max per Linear Inch
455, 530, WHI - 0.103 A Max per Linear Inch850 - 0.05 A Max per Linear Inch
|Normal Operating Temperature||
0 - 60°C
|Weight||4" X 4" unit = 553.4g (19.52oz)|
|Standard Cable Information||2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.|
|Photobiological Risk Factor||
Exempt Applicable Wavelengths: 850
Group 1 (Low Risk) Applicable Wavelengths: 455, 530, 625, WHI
|Compliance||CE, RoHS, IEC 62471|
|Lumen Maintenance||L70 = 50,000 Hours|

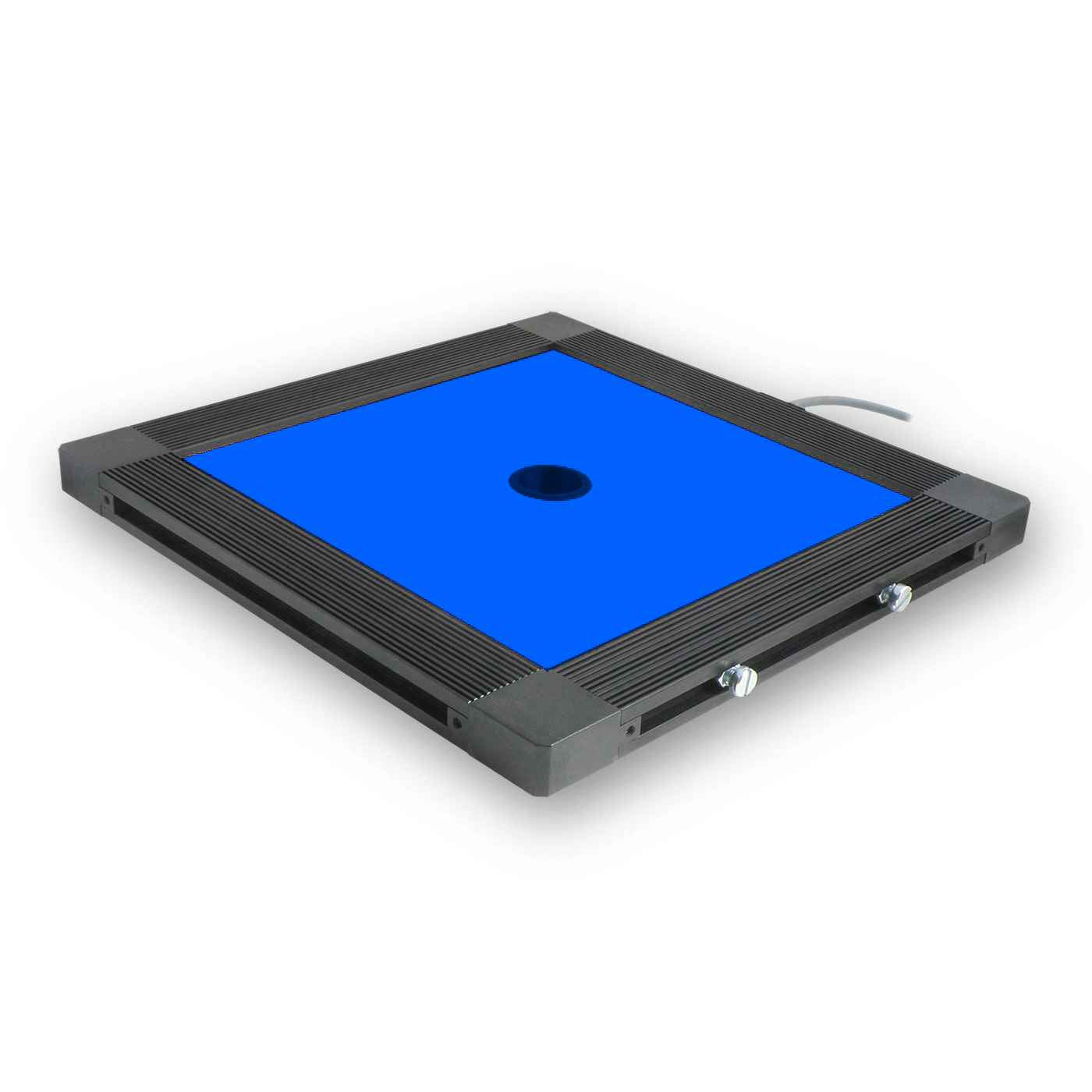

||455nm Royal Blue|

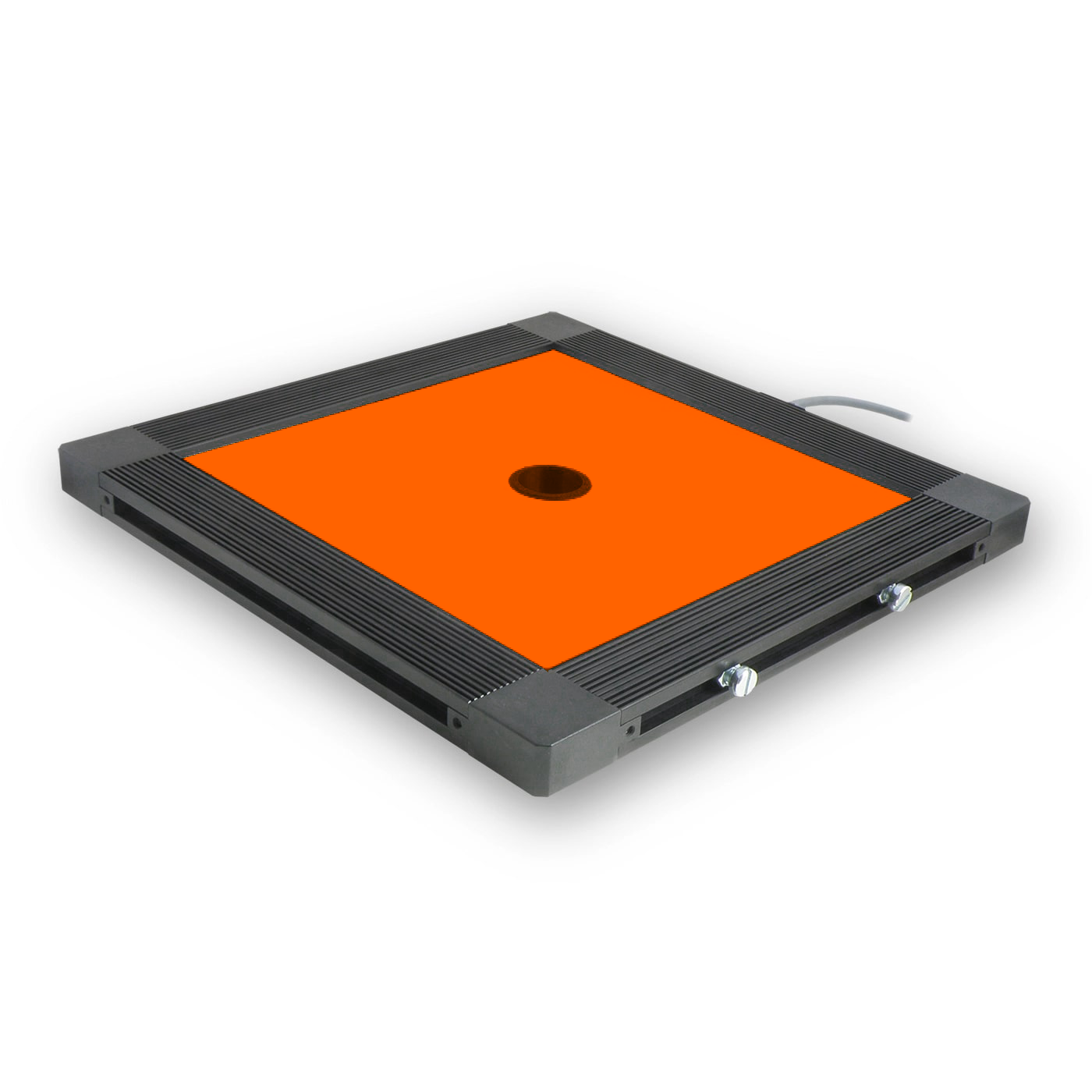

||625nm Red Orange|

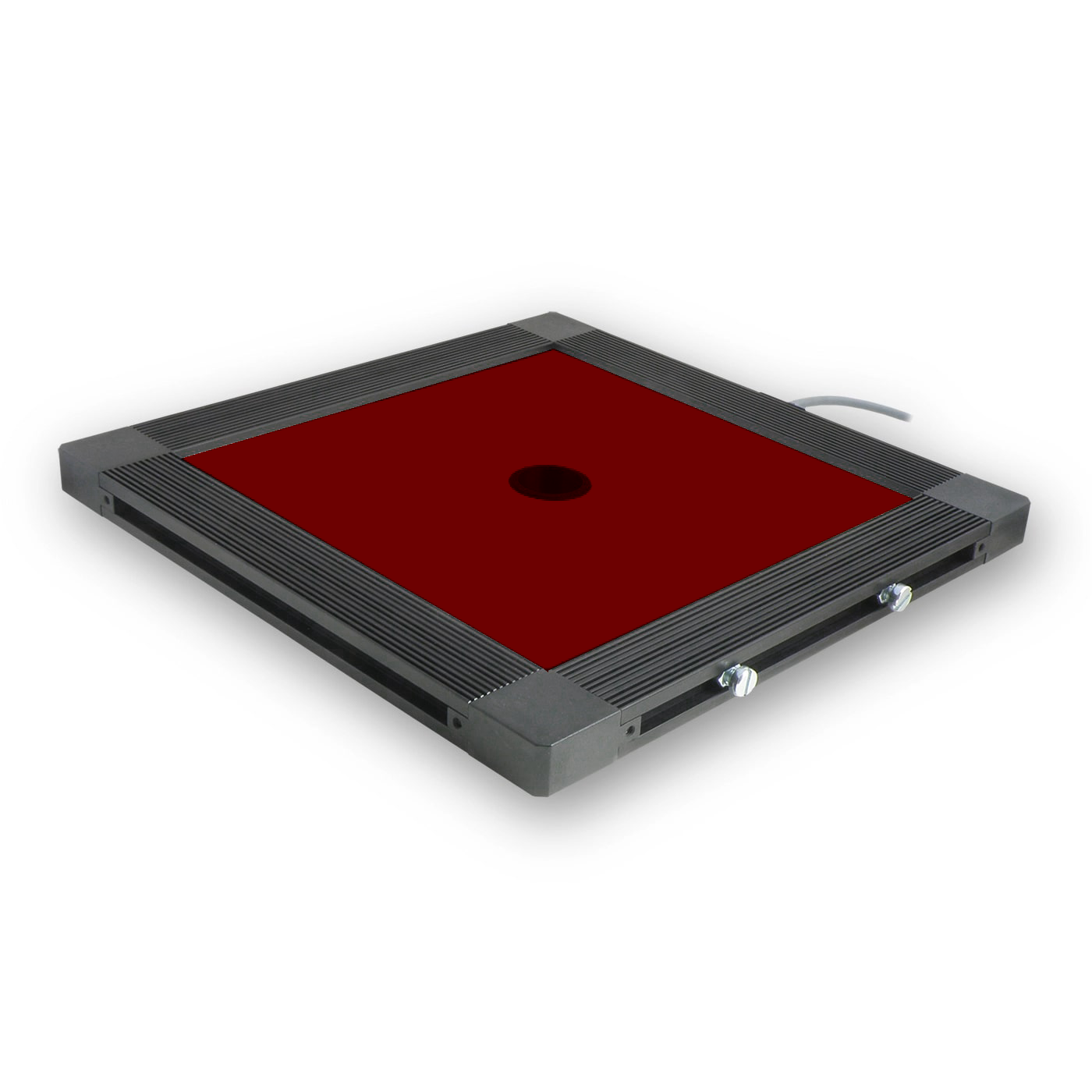

||850nm Infra-Red (IR)|
Additional Wavelengths are available upon request by contacting Machine Vision Direct.
Part No Key
Advanced Illumination FX0808 Downloads:
