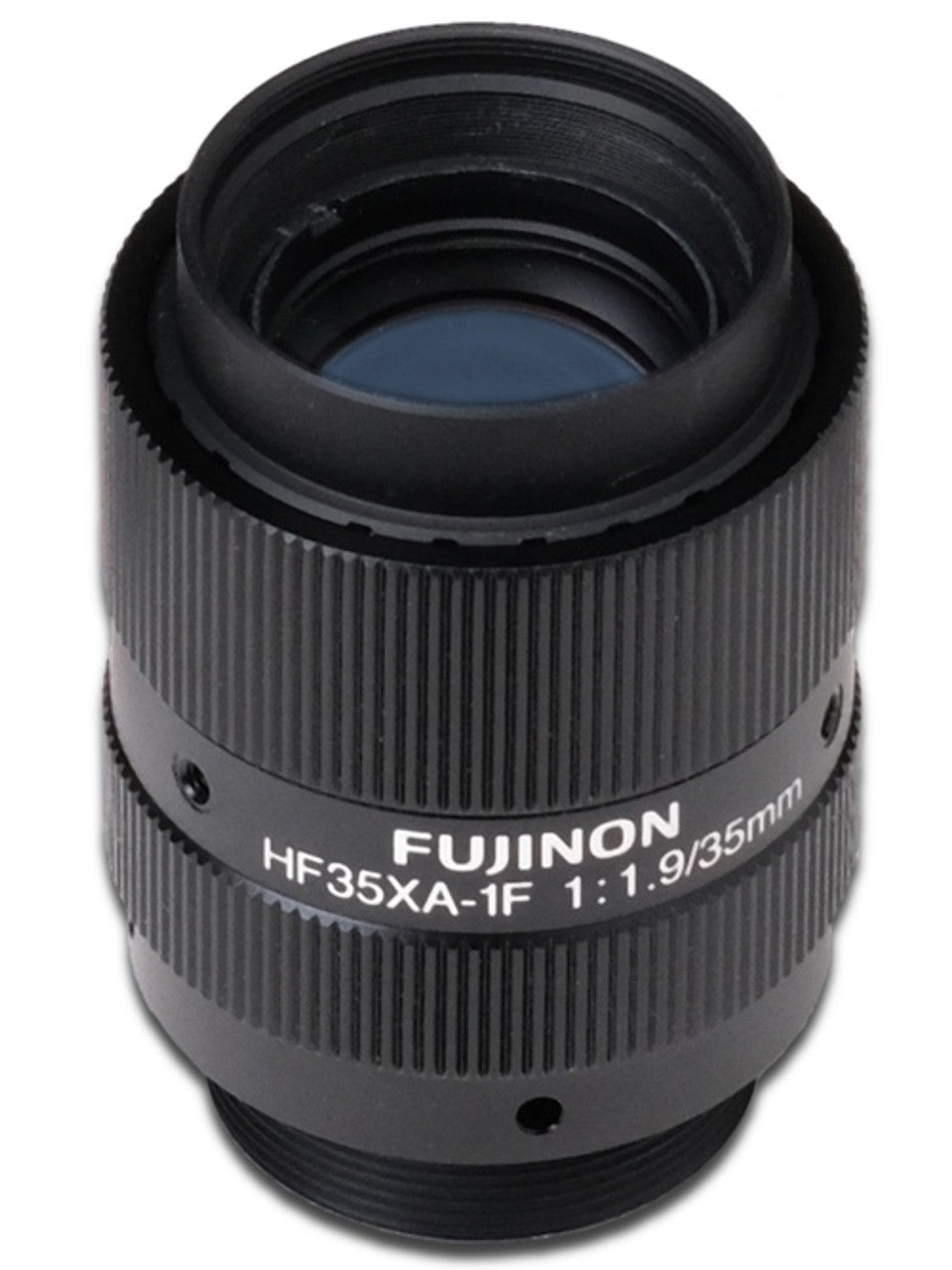

Fujinon HF35XA-1F 35mm 5MP 2/3" F1.9, F5.2, F10.4 C-Mount Lens

FujinonSKU: HF35XA-1F

Price:
Sale price$316.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

Fujinon HF35XA-1F 35mm 5MP 2/3" F1.9 C-Mount Lens

The FUJINON HF-XA-1F Series lenses feature 4D HR to maximize resolution from image center to edge and a new anti-shock antivibration design for the most demanding installations.

High Performance 4D HR:

FUJINON HF-XA-1F series lenses feature high-performance 4D HR to minimize resolution degradation when the shooting distance or aperture changes. The FUJINON HF-XA-1F Series of lenses also maintains highly consistent image sharpness from the center to the edges. This enables consistent delivery of high-resolution images under various installation and shooting conditions.

Anti-Shock and Anti-Vibration:

FUJINON HF-XA-1F Series lenses feature a unique mechanical design to maximize anti-shock and anti-vibration performance that is ideally suited for a range of installation environments.

HF35XA-1F Technical Specifications:

Product Line / Series HF-XA-1F
Lens Type Fixed Focal Length
IP Rating Not Specified
Focal Length 35 mm
ƒ/N ƒ/1.9 - Standard Plate
ƒ/5.2 - Plate C
ƒ/10.4 - Plate E
Image Size Not Specified
Image Circle Diameter Not Specified
Imager Format 2/3″
Light Spectrum Visible
Resolution (MP) 5
Resolution (Pixel Size) 3.45 μm
Weight 75 Grams
Mount C-Mount
Filter Thread M25.5-0.5
Minimum Object Distance 300 mm
Front Diameter 34 mm
Focus Control Manual
Iris Control Interchangeable
Flange Back in Air 17.526 mm
Exit Pupil Position -37.67 mm
Entrance Pupil Position -8.21 mm
TV Distortion (%) 0.1
Operating Temperature Range -10 to +50°C
Dimensions 34 mm × 34 mm × 50.3 mm
Angle of View @ 2/3″ 14.2° x 10.7°
Back Focal Length 18.50 mm
Chief Ray Angle 8.23°
Front Principle Point -6.30 mm
Rear Principle Point -17.63 mm
Distance Between Principle Points -11.33 mm
