Description

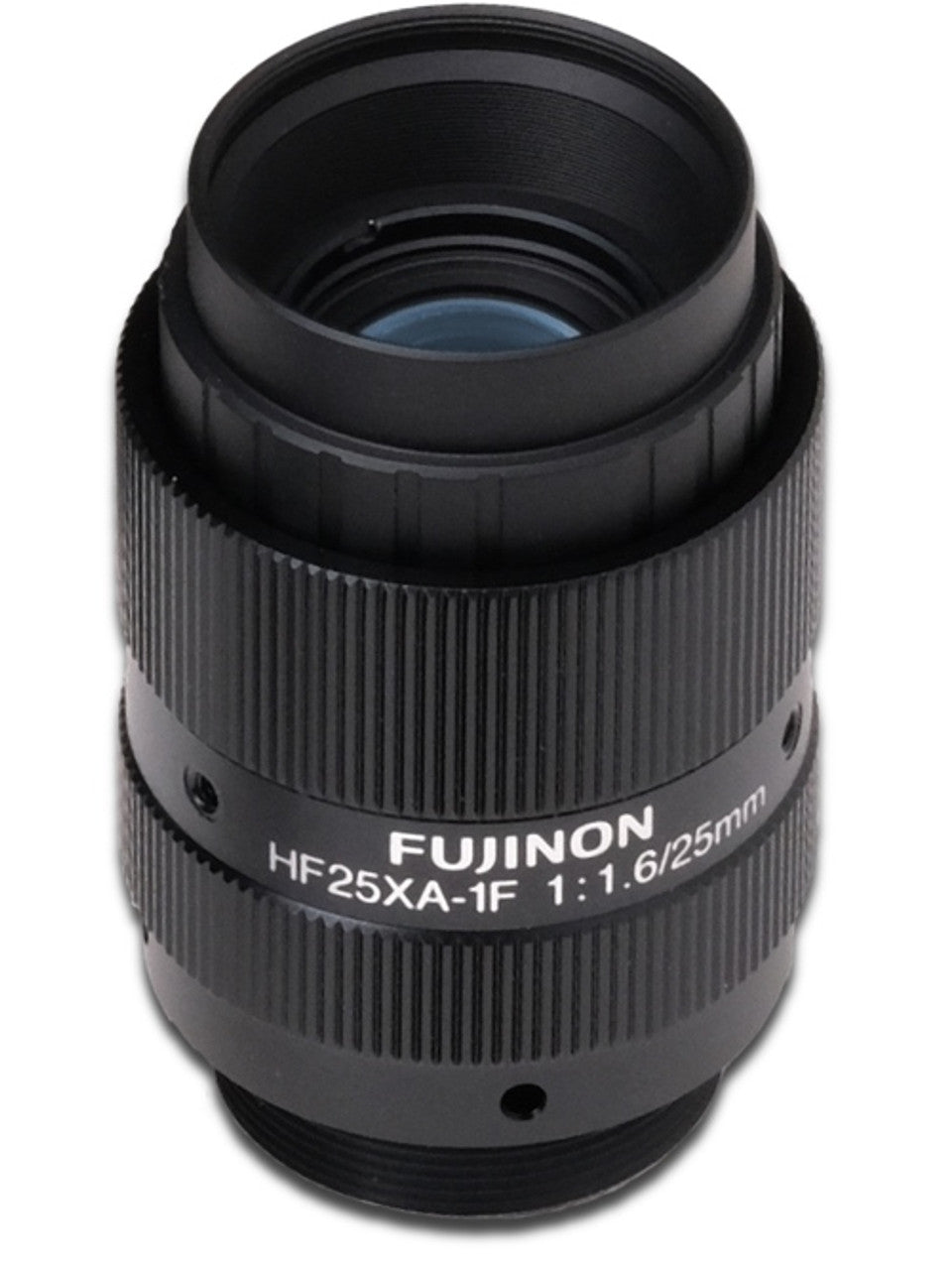

Fujinon HF25XA-1F 25mm 5MP 2/3" F1.6 C-Mount Lens
The FUJINON HF-XA-1F Series lenses feature 4D HR to maximize resolution from image center to edge and a new anti-shock antivibration design for the most demanding installations.High Performance 4D HR:
FUJINON HF-XA-1F series lenses feature high-performance 4D HR to minimize resolution degradation when the shooting distance or aperture changes. The FUJINON HF-XA-1F Series of lenses also maintains highly consistent image sharpness from the center to the edges. This enables consistent delivery of high-resolution images under various installation and shooting conditions.Anti-Shock and Anti-Vibration:
FUJINON HF-XA-1F Series lenses feature a unique mechanical design to maximize anti-shock and anti-vibration performance that is ideally suited for a range of installation environments.HF25XA-1F Technical Specifications:
Product Line / Series | HF-XA-1F |
Lens Type | Fixed Focal Length |
IP Rating | Not Specified |
Focal Length | 25 mm |
ƒ/N | ƒ/1.6 - Standard Plate ƒ/4.6 - Plate C ƒ/9.2 - Plate E |
Image Size | Not Specified |
Image Circle Diameter | Not Specified |
Imager Format | 2/3″ |
Light Spectrum | Visible |
Resolution (MP) | 5 |
Resolution (Pixel Size) | 3.45 μm |
Weight | 87 Grams |
Mount | C-Mount |
Filter Thread | M25.5-0.5 |
Minimum Object Distance | 150 mm |
Front Diameter | 34 mm |
Focus Control | Manual |
Iris Control | Interchangeable |
Flange Back in Air | 17.526 mm |
Exit Pupil Position | -79.06 mm |
Entrance Pupil Position | -22.11 mm |
TV Distortion (%) | -0.07 |
Operating Temperature Range | -10 to +50°C |
Dimensions | 34 mm × 34 mm × 55.4 mm |
Angle of View @ 2/3″ | 19.9° x 15.0° |
Back Focal Length | 13.60 mm |
Chief Ray Angle | 3.75° |
Front Principle Point | -5.38 mm |
Rear Principle Point | -7.54 mm |
Distance Between Principle Points | -2.16 mm |
