DL225-025 Square Coaxial Light, 025 mm

Advanced IlluminationSKU: DL225-025365I3S
Lead Time: 2 Weeks

Color: UV (365nm)
Driver: ICS 3S (I3S)
Price:
Sale price$865.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

Square Coaxial Lights - DL Series

DL225-025 Specifications:

Brand Advanced Illumination
Series DL225
Wavelength VARIES
Color VARIES
Driver I3S
Ingress Protection IP50
Length 025 mm
Weight 271g
Can Be Strobed Yes
Can Be Overdrive Strobed Yes
Can Be Constantly On Yes
Can Be Dimmed Dimmable
Connection 2M Flying Lead

Full Description

The DL225 series of square coaxial lights features a modular heat sink and circuit design for enhanced performance, product availability and lead time.

These coaxial lights are available in a wide variety of wavelengths from UV to IR.

They provide intensities from 18kLux for the DL225-025 to approximately 50kLux for the larger models.

General Specs

Electrical Specifications

0.06 A

0.035 A

0.12 A

0.24 A

0.35 A

0.54 A

1.4 A

0.48 A

0.96 A

0.7 A

2.1 A

1.08 A

2.16 A

1.05 A
Normal Operating Temperature

0 - 60°C

Weight DL225-025: 187.89g (6.62oz) (.414lb)
DL225-050: 351.90g (12.4oz) (.776lb)
DL225-075: 818.30g (28.9oz) (1.80lb)
DL225-100: 1396.2g (49.3oz) (3.08lb)
DL225-150: 2863.1g (101oz) (6.32lb)
Standard Cable Information 2 m long -0/+150 mm (80" -0/+6") - 105°C RATED PVC JACKET, FOIL SHIELD WITH DRAIN.
Photobiological Risk Factor Exempt Applicable Wavelengths: 850, 940
Group 1 (Low Risk) Applicable Wavelengths: 455, 470, 530, 590, 625, WHI
Group 2 (Moderate Risk) Applicable Wavelengths: 365, 375, 385, 395, 405
IP Rating IP50
Lumen Maintenance L70 = 50,000 Hours



Available Wavelengths

Wavelength
Color
Description
WHITE
Advanced Illumination White Lights
WHITE
365
Advanced Illumination 365nm Ultra-Violet (UV) Light
365nm Ultra-Violet (UV)
375
Advanced Illumination 375nm Ultra-Violet (UV) Light
375nm Ultra-Violet (UV)

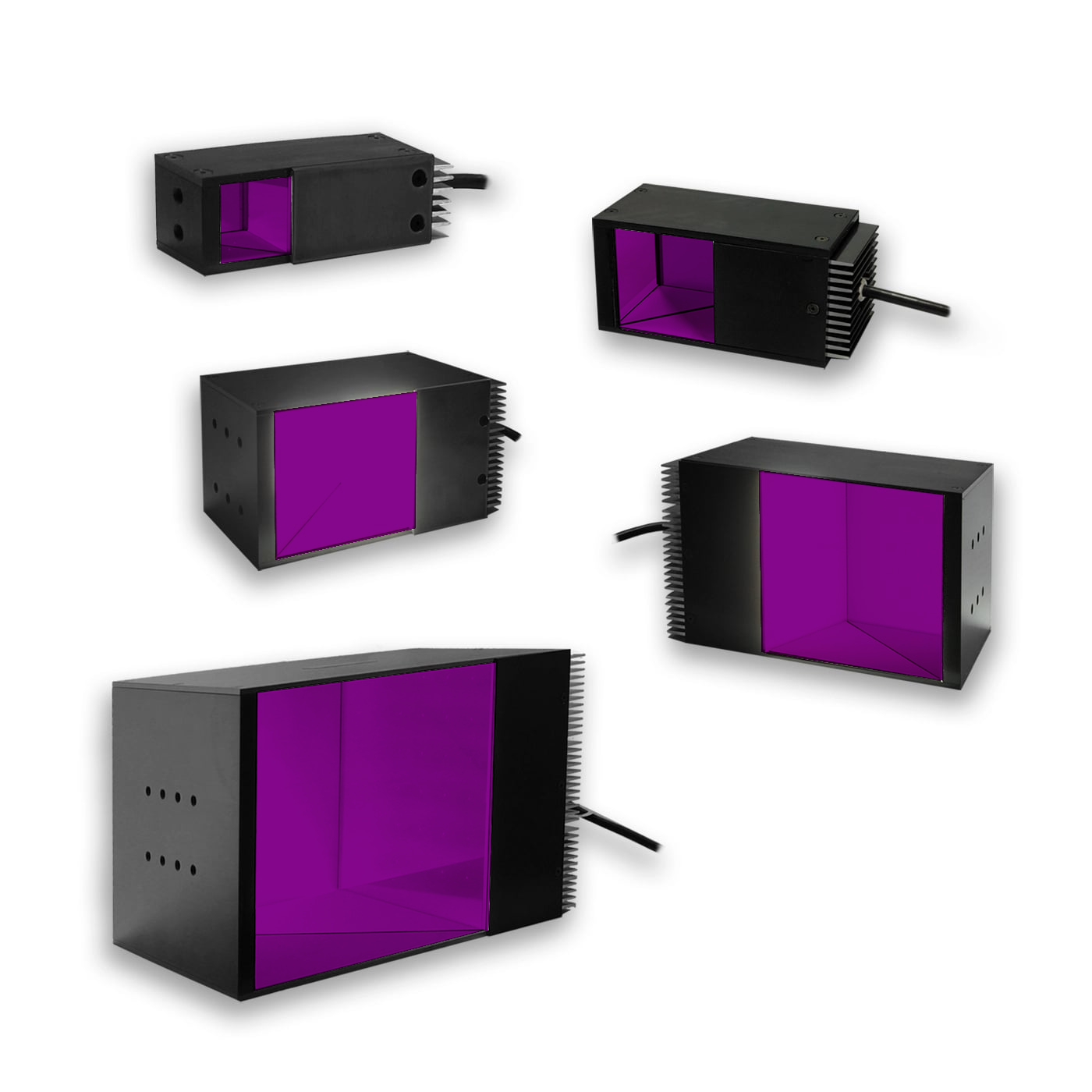

385
Advanced Illumination 385nm Ultra-Violet (UV) Light
385nm Ultra-Violet (UV)

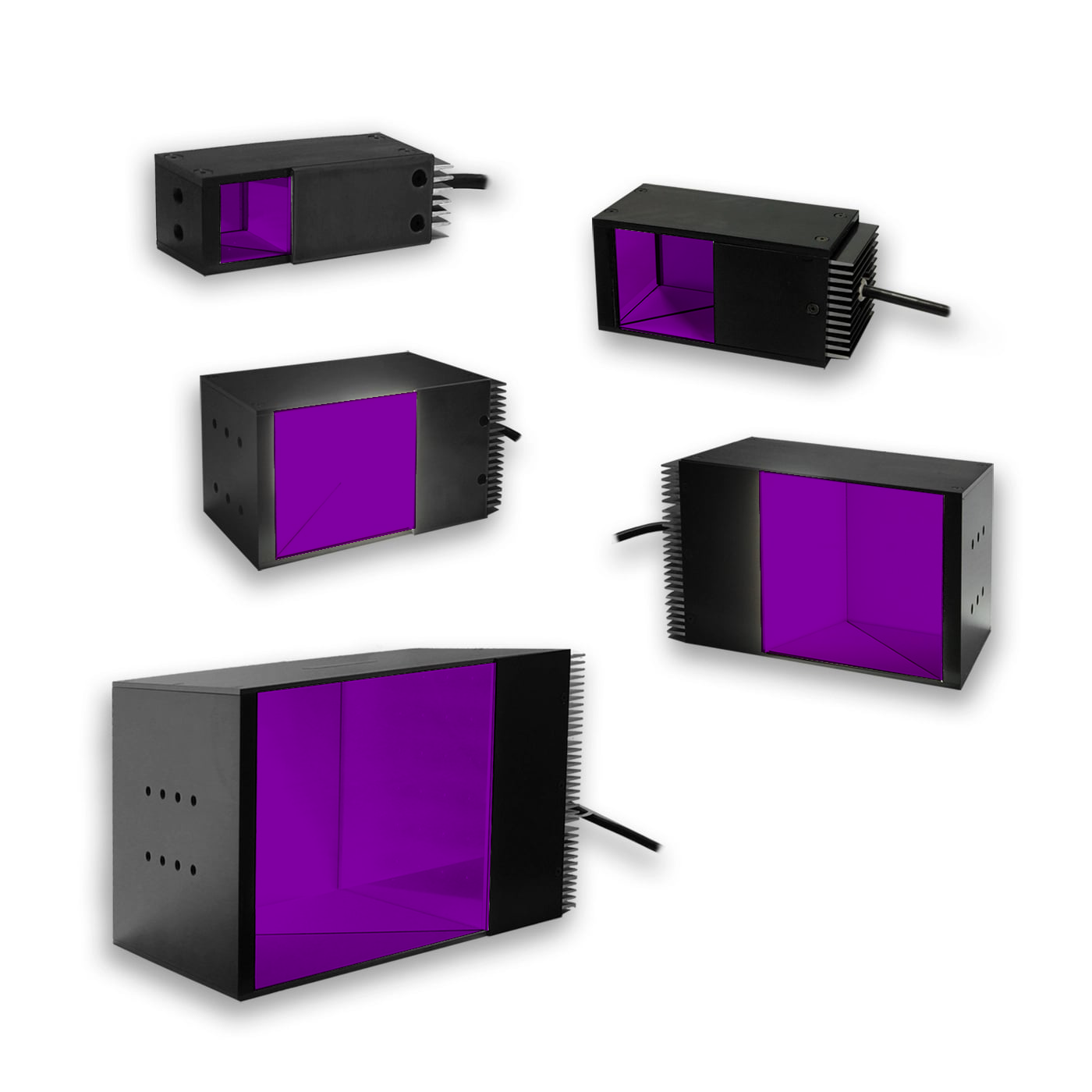

395
Advanced Illumination 395nm Ultra-Violet (UV) Light
395nm Ultra-Violet (UV)

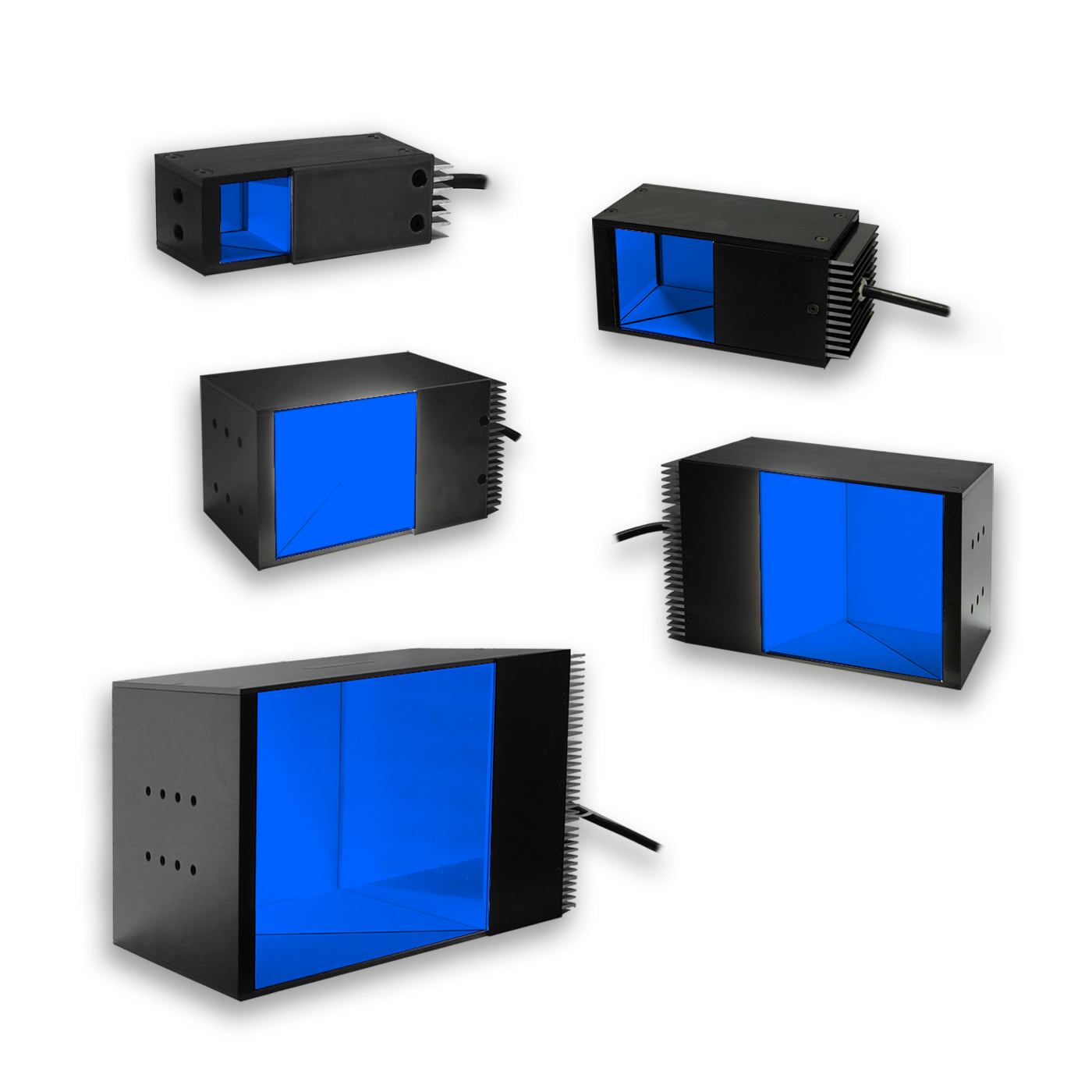

455
455nm Royal Blue
470
Advanced Illumination 470nm Blue Light
470nm Blue

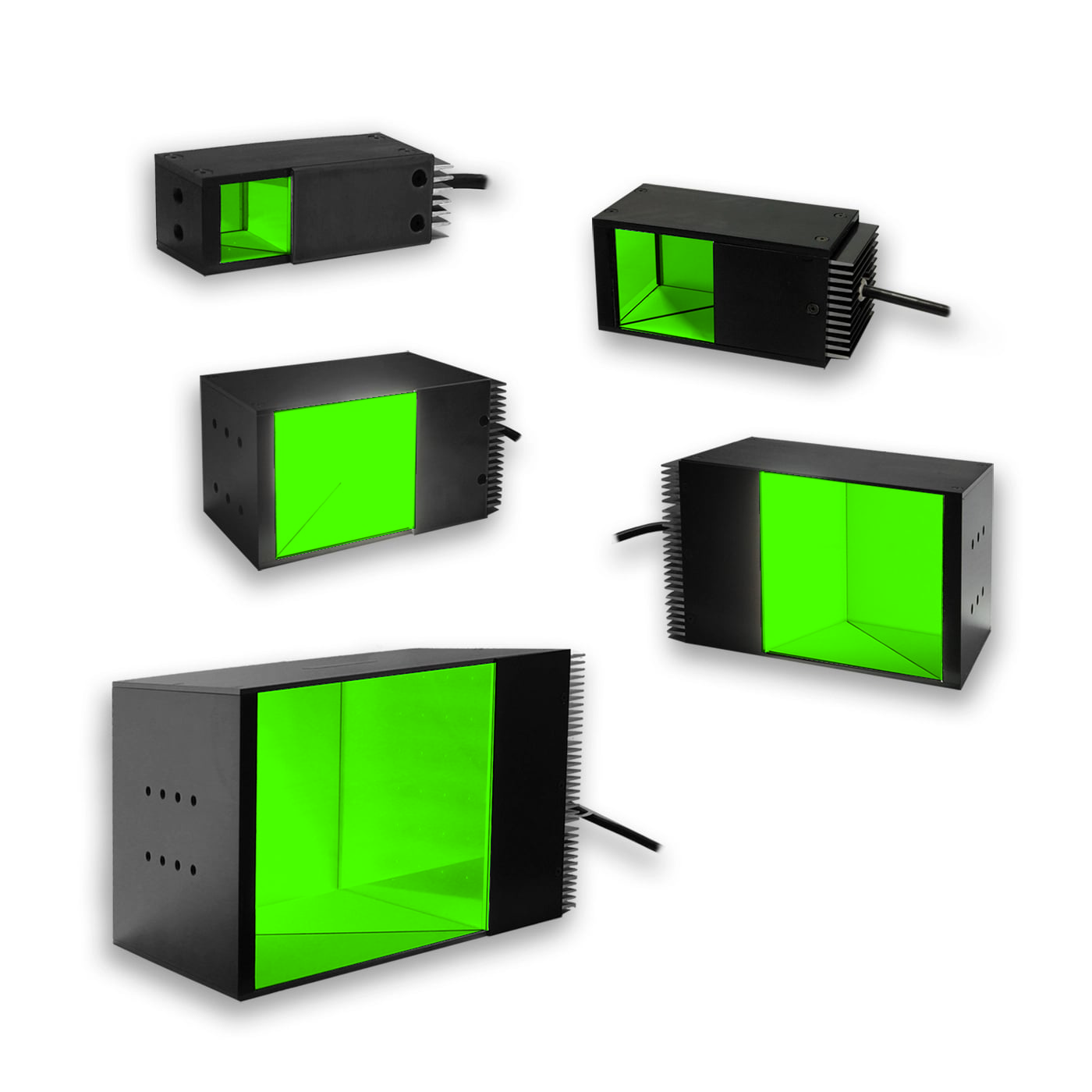

530
Advanced Illumination 530nm Green Light
530nm Green

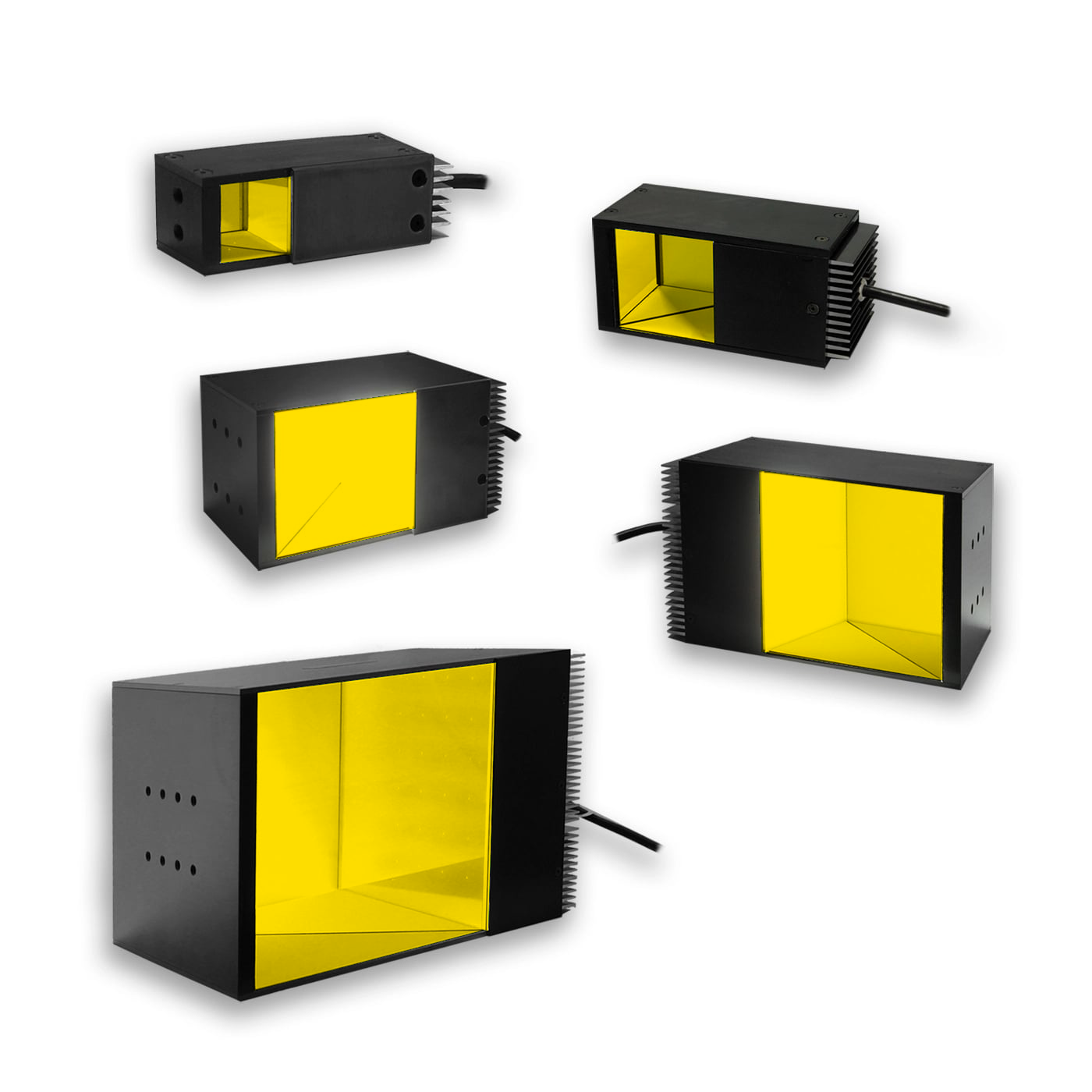

590
Advanced Illumination 590nm Amber Light
590nm Amber

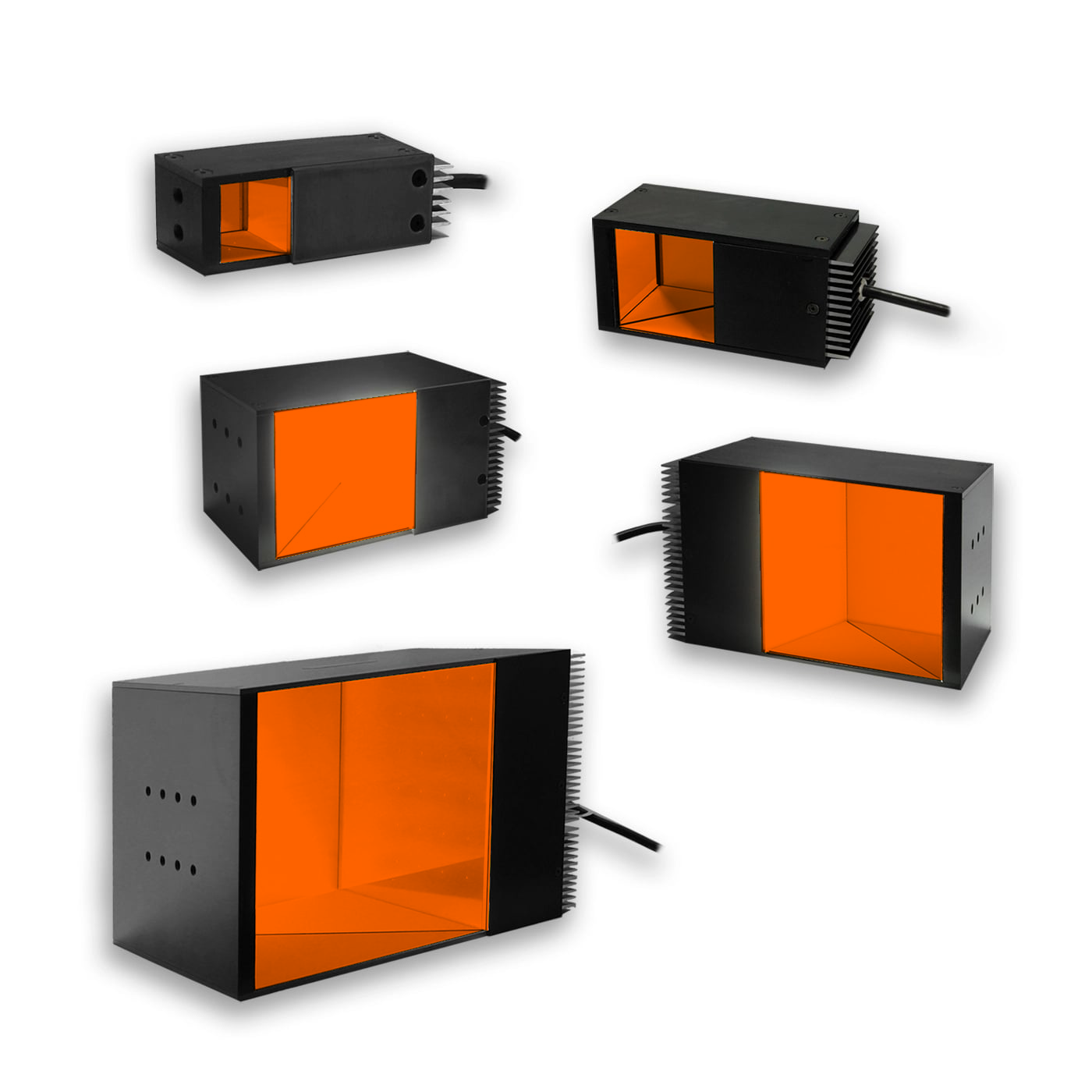

625
Advanced Illumination 625nm Red Orange Light
625nm Red Orange

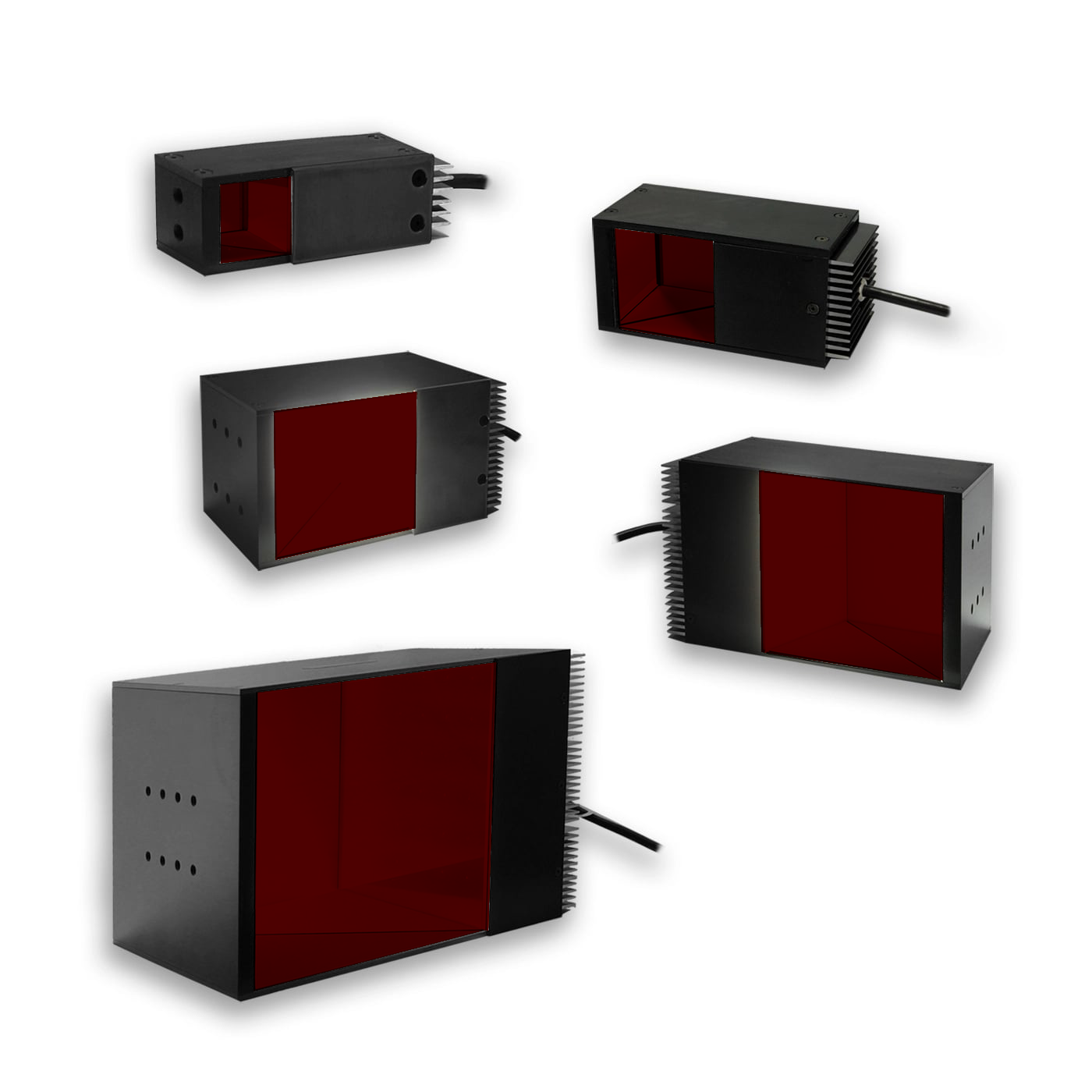

850
Advanced Illumination 850nm Infra-Red (IR) Light
850nm Infra-Red (IR)
940
Advanced Illumination 940nm Infra-Red (IR) Light
940nm Infra-Red (IR)

Additional Wavelengths are available upon request by contacting Machine Vision Direct.

Mechanical Specs

 DL225 Square Coaxial Lights Mechanical Specs | Advanced Illumination
DL225 Square Coaxial Lights Mechanical Specs | Advanced Illumination
DL225 Square Coaxial Lights Mechanical Specs | Advanced Illumination
DL225 Square Coaxial Lights Mechanical Specs | Advanced Illumination
DL225 Square Coaxial Lights Mechanical Specs | Advanced Illumination



 Optical Specs

 DL225 Square Coaxial Lights Optical Specs | Advanced Illumination
DL225 Square Coaxial Lights Optical Specs | Advanced Illumination
DL225 Square Coaxial Lights Optical Specs | Advanced Illumination
DL225 Square Coaxial Lights Optical Specs | Advanced Illumination
DL225 Square Coaxial Lights Optical Specs | Advanced Illumination


Electrical Specs

 DL225 Square Coaxial Lights Electrical Specs | Advanced Illumination



Control Specs

 DL225 Square Coaxial Lights Control Specs | Advanced Illumination



Part No Key

 DL225 Square Coaxial Lights Part No Key | Advanced Illumination

Advanced Illumination DL225-025 Downloads:

Advanced Illumination DL225-025 Datasheet | Machine Vision Direct
Advanced Illumination DL225-025 CAD PDF | Machine Vision Direct
Advanced Illumination DL225-025 CAD DXF | Machine Vision Direct
Advanced Illumination DL225-025 CAD STEP MODEL | Machine Vision Direct
