DL15128 Narrow Linear Diffuse Light, 28 in

Advanced IlluminationSKU: DL15128-45524
Lead Time: 2 Weeks

Color: Royal Blue (455nm)
Driver: 24 Volt
Price:
Sale price$2,432.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

Narrow Linear Diffuse Lights - DL Series

DL15128 Specifications:

Brand Advanced Illumination
Series DL151
Wavelength VARIES
Color VARIES
Driver 24
Ingress Protection Not Rated
Length 28 in
Weight 1074g
Can Be Strobed No
Can Be Overdrive Strobed No
Can Be Constantly On Yes
Can Be Dimmed Not Dimmable
Connection 2M Flying Lead

Full Description

The Narrow Linear Diffuse Light series is ideal for precision scanning of highly reflective materials.

The DL151 is available in a wide range of wavelengths and provides up to 28kLux at a 1� (25mm) standoff.

The extruded aluminum enclosure can be expanded in 2³ (51mm) increments from 2³ to 70³ (1778mm).

General Specs

Electrical Specifications 0.12A per 2"
Normal Operating Temperature

0 - 60°C

Weight 12" Unit = 421g (14.9oz)
Standard Cable Information 2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.
Photobiological Risk Factor Exempt Applicable Wavelengths: 850, 940
Group 1 (Low-Risk) Applicable Wavelengths: 455, 470, 530, 590, 625, WHI
Compliance CE, RoHS, IEC 62471
IP Rating Not Rated
Lumen Maintenance L70 = 50,000 Hours



Available Wavelengths

Wavelength
Color
Description

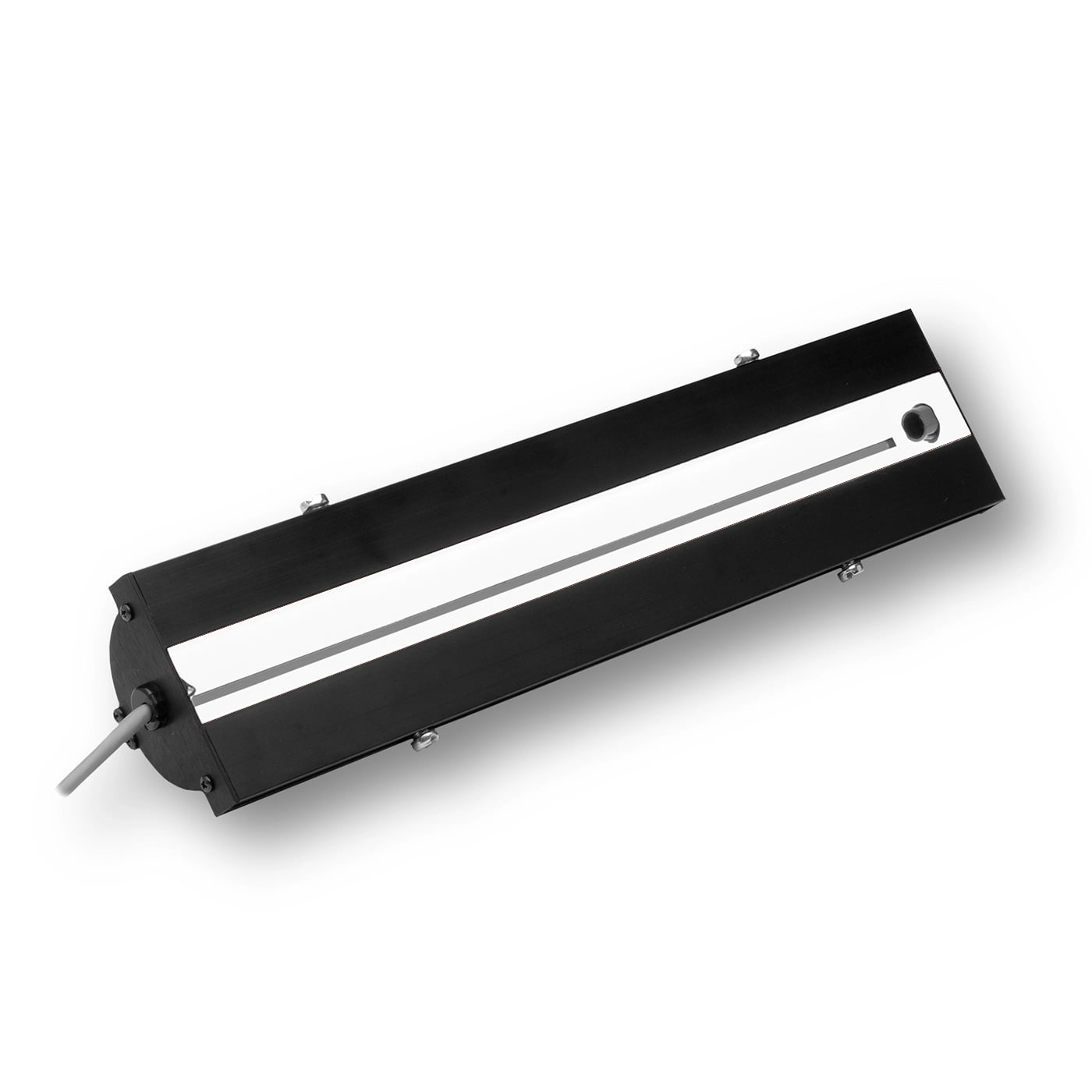

WHITE
Advanced Illumination White Lights
WHITE
455
455nm Royal Blue

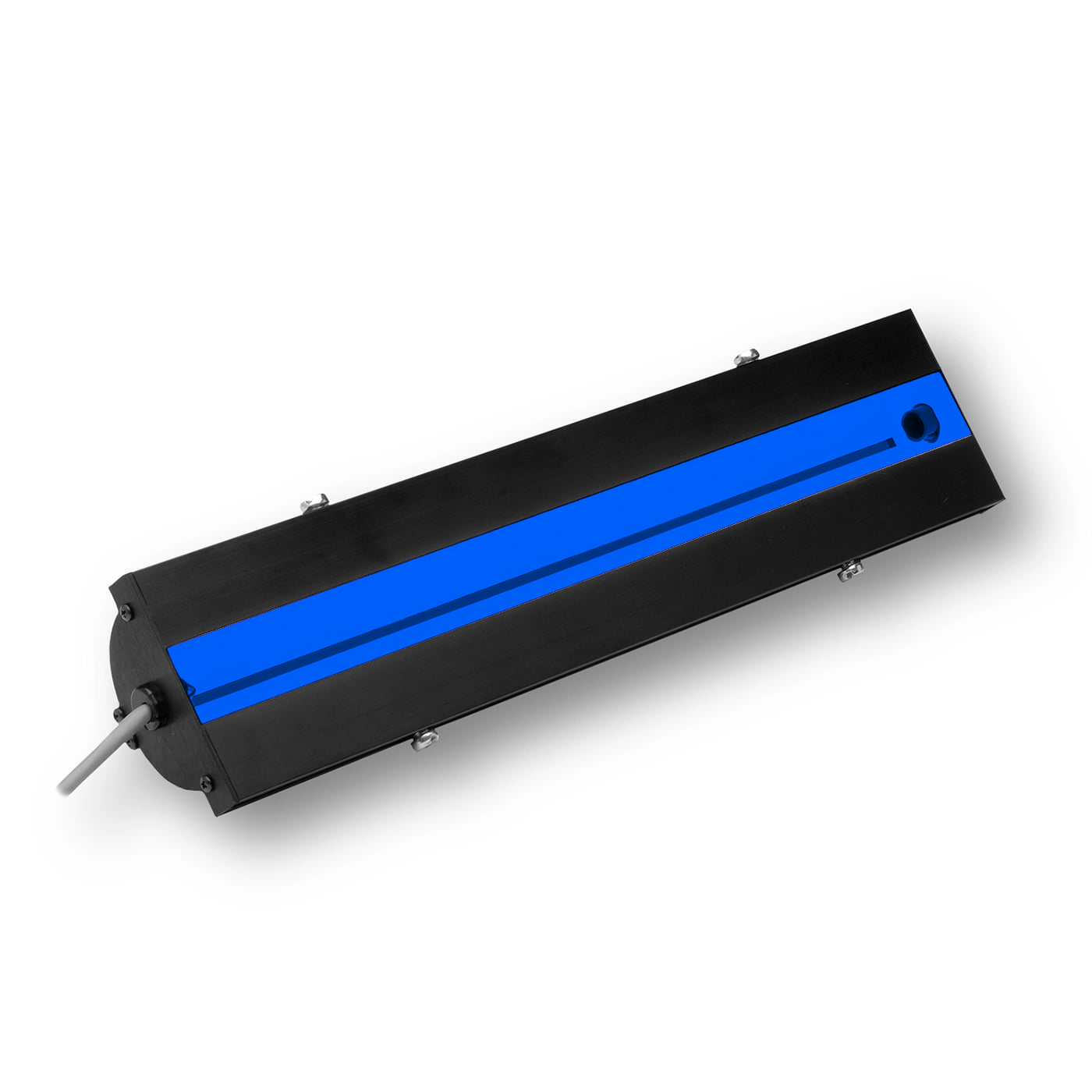

470
Advanced Illumination 470nm Blue Light
470nm Blue

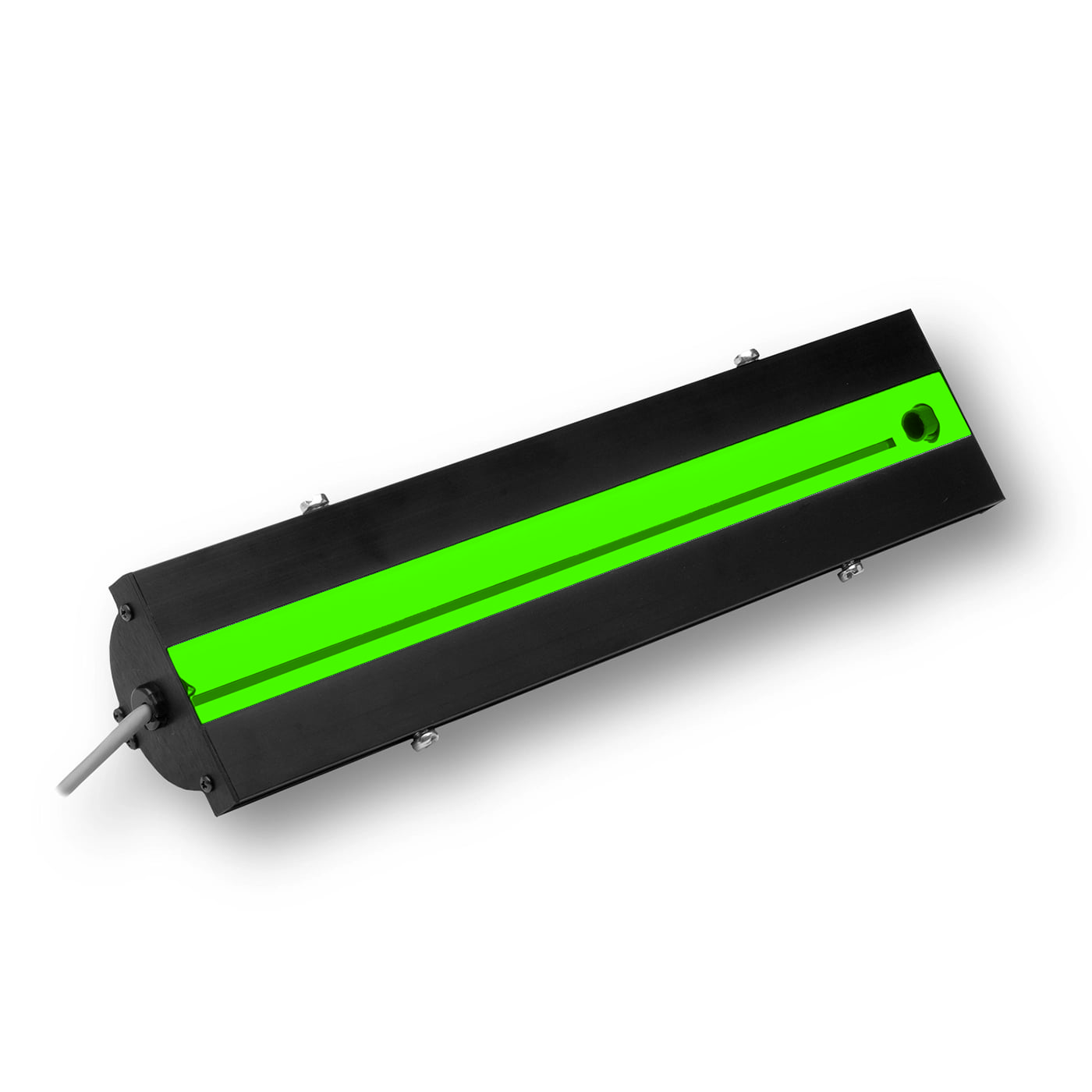

530
Advanced Illumination 530nm Green Light
530nm Green
590
Advanced Illumination 590nm Amber Light
590nm Amber
625
Advanced Illumination 625nm Red Orange Light
625nm Red Orange
850
Advanced Illumination 850nm Infra-Red (IR) Light
850nm Infra-Red (IR)
940
Advanced Illumination 940nm Infra-Red (IR) Light
940nm Infra-Red (IR)

Additional Wavelengths are available upon request by contacting Machine Vision Direct.

Mechanical Specs

 DL151 Narrow Linear Diffuse Lights Mechanical Specs | Advanced Illumination
DL151 Narrow Linear Diffuse Lights Mechanical Specs | Advanced Illumination



 Optical Specs

 DL151 Narrow Linear Diffuse Lights Optical Specs | Advanced Illumination
DL151 Narrow Linear Diffuse Lights Optical Specs | Advanced Illumination


Electrical Specs

 DL151 Narrow Linear Diffuse Lights Electrical Specs | Advanced Illumination


Control Specs

 DL151 Narrow Linear Diffuse Lights Control Specs | Advanced Illumination

Part No Key

 DL151 Narrow Linear Diffuse Lights Part No Key | Advanced Illumination

Advanced Illumination DL15128 Downloads:

Advanced Illumination DL15128 Datasheet | Machine Vision Direct
Advanced Illumination DL15128 CAD PDF | Machine Vision Direct
Advanced Illumination DL15128 CAD DXF | Machine Vision Direct
Advanced Illumination DL15128 CAD STEP MODEL | Machine Vision Direct
