DL110 Linear Coaxial Light, 12 in

Advanced IlluminationSKU: DL110-47024
Lead Time: 2 Weeks

Color: Blue (470nm)
Driver: 24 Volt
Sale price$3,240.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us


Linear Coaxial Lights - DL Series

DL110 Specifications:

Brand Advanced Illumination
Series DL110
Wavelength VARIES
Driver 24
Ingress Protection IP50
Length 12 in
Weight 680g
Can Be Strobed No
Can Be Overdrive Strobed No
Can Be Constantly On Yes
Can Be Dimmed Not Dimmable
Connection 2M Flying Lead

Full Description

The Linear Coaxial Light provides a type of diffuse illumination; diffuse light from an internal source is folded downwards along the camera™s imaging axis and onto the imaging plane.

High speed machine vision line scan applications receive greater image contrast with a Linear Coaxial Light.

The DL110 includes a high efficiency, coated, easy to clean dust cover to protect the beamsplitter.

General Specs

Electrical Specifications 1.2A
Normal Operating Temperature

0 - 60°C

Weight 576.1g (20.32oz)
Standard Cable Information 2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.
Photobiological Risk Factor Exempt Applicable Wavelengths: 850
Group 1 (Low-Risk) Applicable Wavelengths: 470, 530, 625, WHI
Compliance CE, RoHS, IEC 62471
IP Rating IP50
Lumen Maintenance L70 = 50,000 Hours


Available Wavelengths

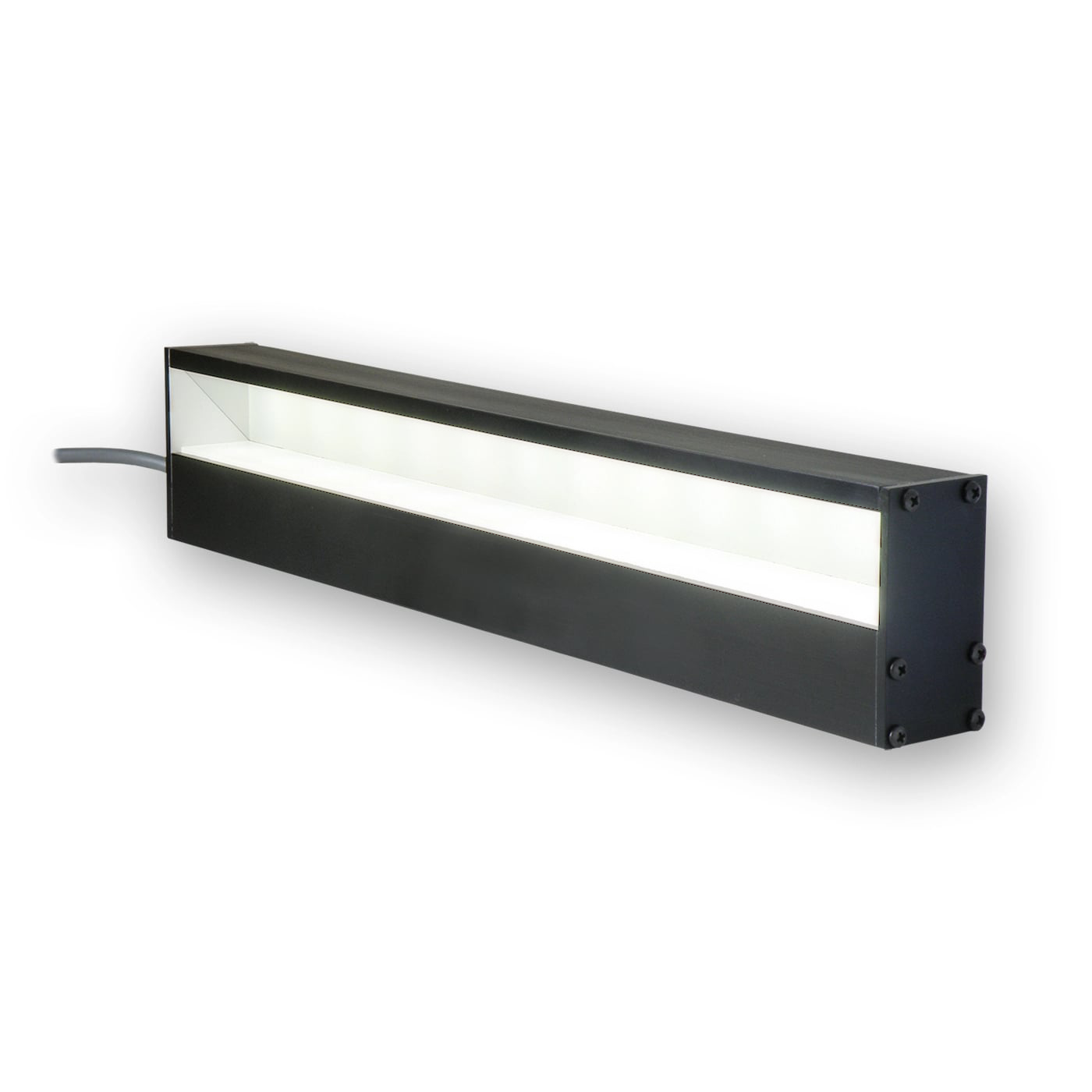

Advanced Illumination White Lights

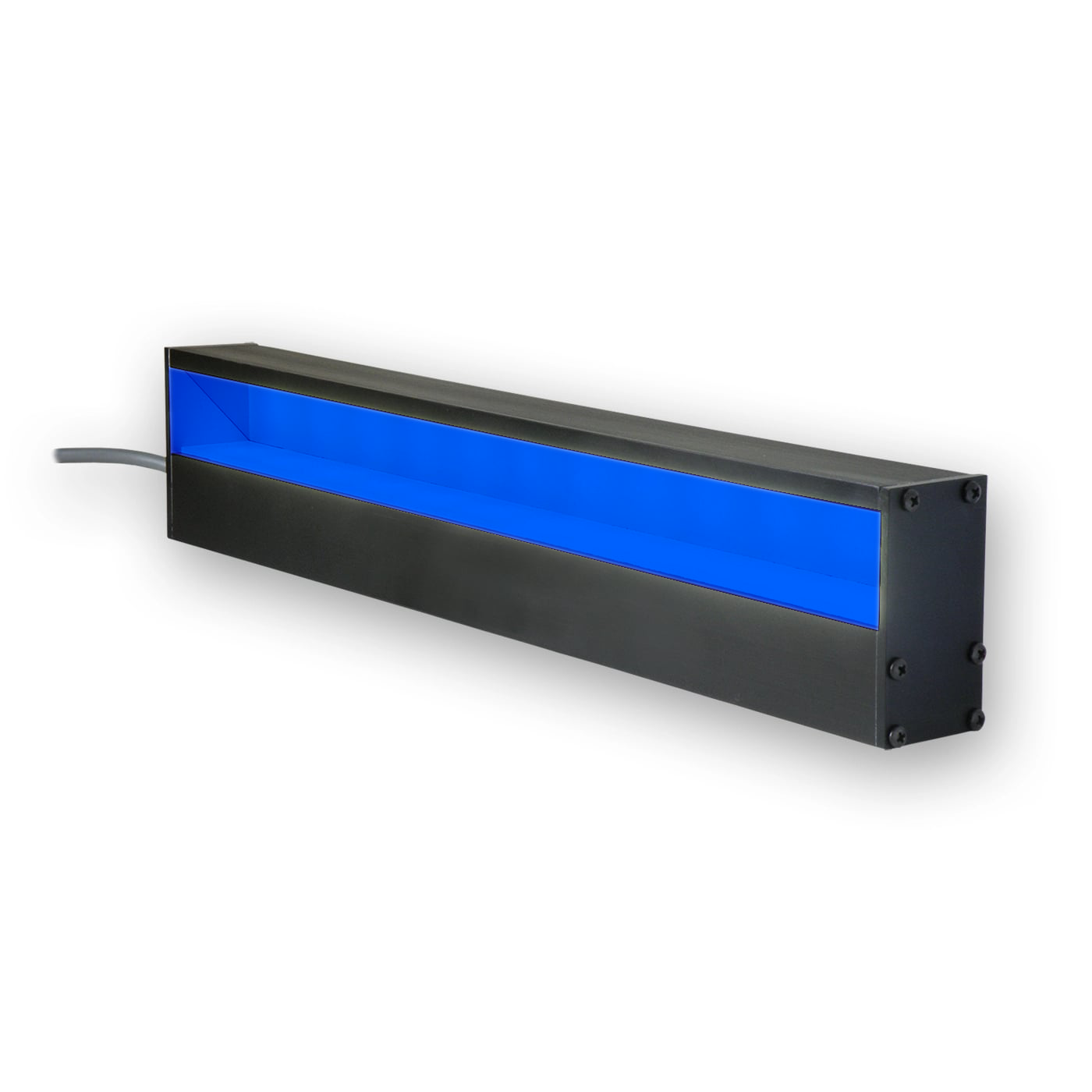

Advanced Illumination 470nm Blue Light
470nm Blue
Advanced Illumination 530nm Green Light
530nm Green

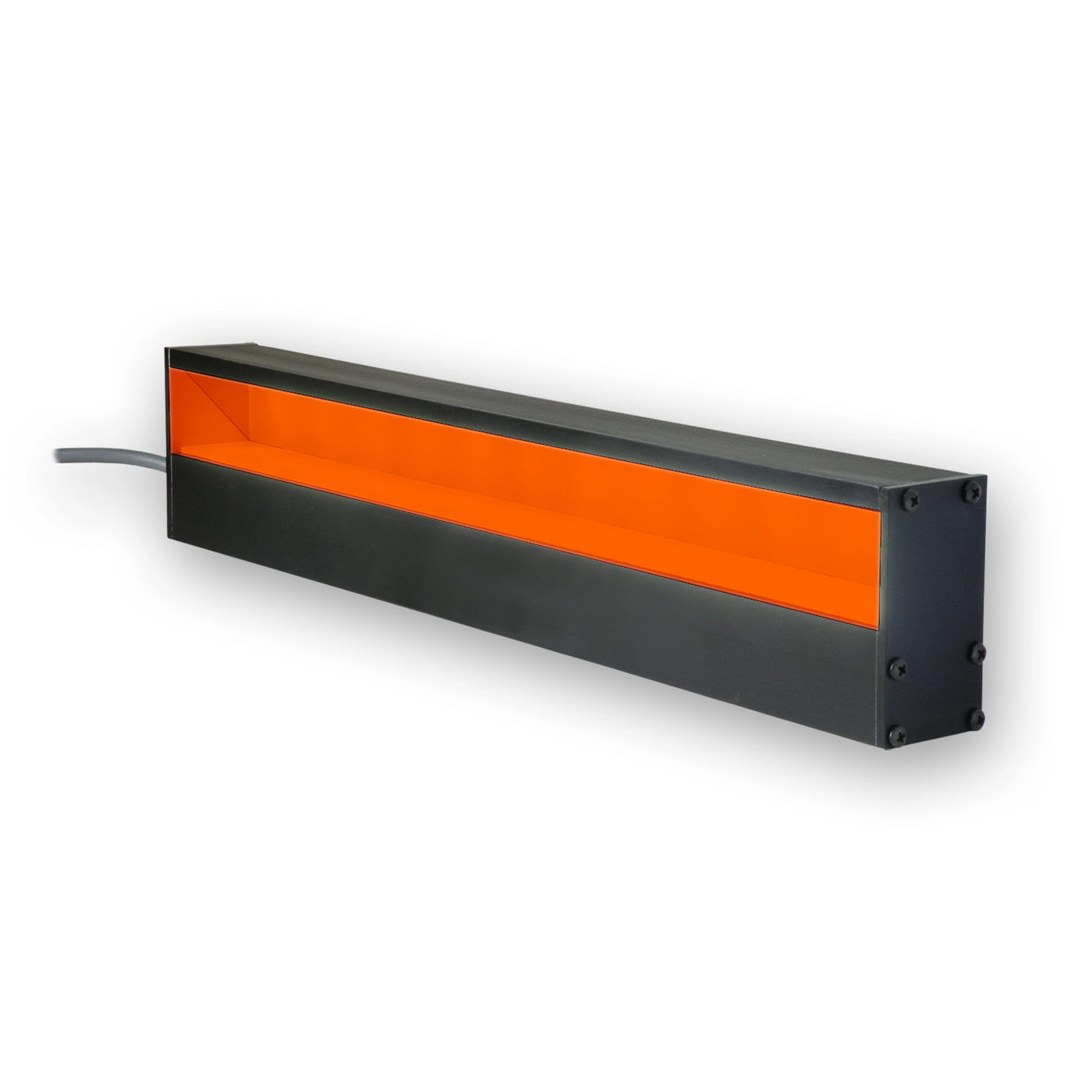

Advanced Illumination 625nm Red Orange Light
625nm Red Orange

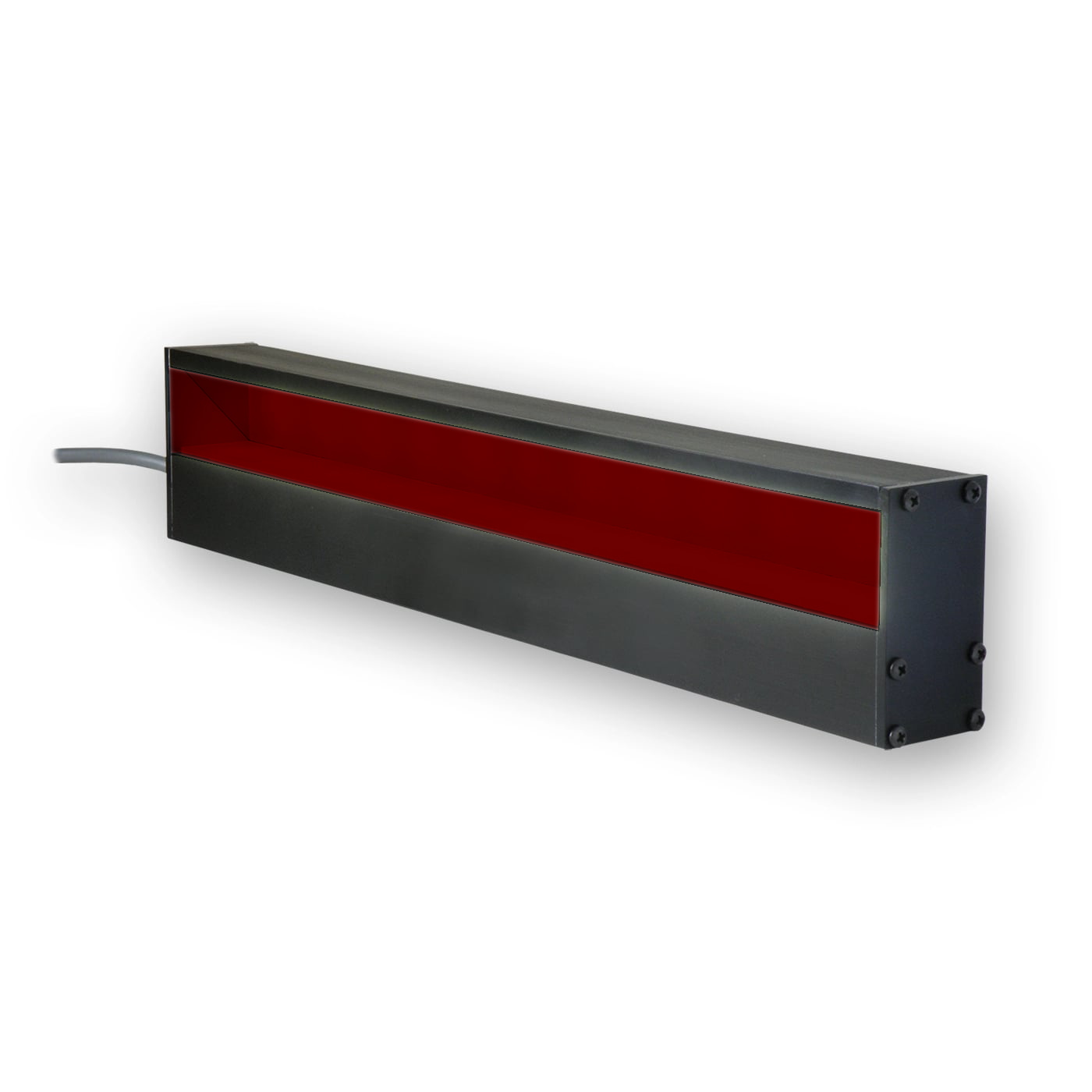

Advanced Illumination 850nm Infra-Red (IR) Light
850nm Infra-Red (IR)

Additional Wavelengths are available upon request by contacting Machine Vision Direct.

Mechanical Specs

 DL110 Linear Coaxial Lights Mechanical Specs | Advanced Illumination


 Optical Specs

 DL110 Linear Coaxial Lights Optical Specs | Advanced Illumination
DL110 Linear Coaxial Lights Optical Specs | Advanced Illumination

Electrical Specs

 DL110 Linear Coaxial Lights Electrical Specs | Advanced Illumination


Control Specs

 DL110 Linear Coaxial Lights Optical Specs | Advanced Illumination


Part No Key

 DL110 Linear Coaxial Lights Part No Key | Advanced Illumination

Advanced Illumination DL110 Downloads:

Advanced Illumination DL110 Datasheet | Machine Vision Direct
Advanced Illumination DL110 CAD PDF | Machine Vision Direct
Advanced Illumination DL110 CAD DXF | Machine Vision Direct
Advanced Illumination DL110 CAD STEP MODEL | Machine Vision Direct
