Description

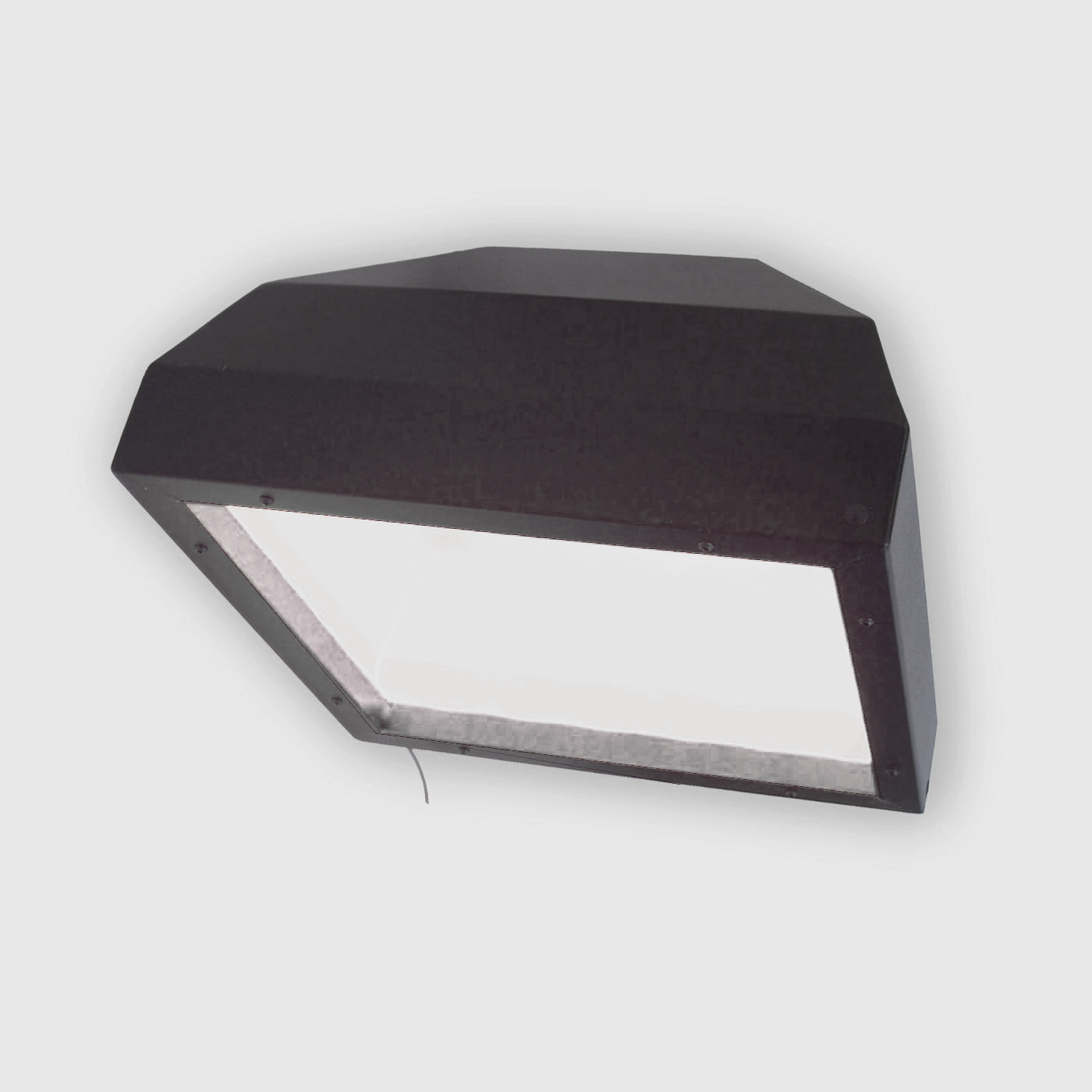

Large Area Diffuse Lights - DL Series
DL071-WHI24 Specifications:
Brand | Advanced Illumination |
Series | DL071 |
Wavelength | WHI |
Color | White |
Driver | 24 |
Ingress Protection | Not Rated |
Working Diameter | 457 mm |
Weight | 6161g |
Can Be Strobed | No |
Can Be Overdrive Strobed | No |
Can Be Constantly On | Yes |
Can Be Dimmed | Not Dimmable |
Connection | 2M Flying Lead |
Full Description
This Large Area Diffuse Light provides extremely diffuse illumination over an area of 18� square (457mm).
Available in a wide array of wavelengths, providing up to 7kLux at a 1� (25mm) standoff.
At 13.6 pounds (6.2 kilograms), the DL071 is both rugged and lightweight.
General Specs
Electrical Specifications |
0.5A 0.9A 1.0A |
Normal Operating Temperature |
0 - 60°C |
Weight | 6168.8g (217.6oz) (13.6lbs) |
Standard Cable Information | 2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain. |
Photobiological Risk Factor |
Exempt Applicable Wavelengths: 850, 940 Group 1 (Low-Risk) Applicable Wavelengths: 455, 470, 505, 530, 590, 625, 660, 730, WHI |
Compliance | CE, RoHS, IEC 62471 |
IP Rating | Not Rated |
Lumen Maintenance | L70 = 50,000 Hours |
Available Wavelengths
Wavelength |
Color |
Description |
WHITE |
![]() |
WHITE |
455 |
![]() |
455nm Royal Blue |
470 |
![]() |
470nm Blue |
505 |
![]() |
505nm Cyan |
530 |
![]() |
530nm Green |
590 |
![]() |
590nm Amber |
625 |
![]() |
625nm Red Orange |
660 |
![]() |
660nm Red |
730 |
![]() |
730nm Infra-Red (IR) |
850 |
![]() |
850nm Infra-Red (IR) |
940 |
![]() |
940nm Infra-Red (IR) |
Additional Wavelengths are available upon request by contacting Machine Vision Direct.
Mechanical Specs
![]() |
Optical Specs
![]() |
![]() |
Electrical Specs
![]() |
Control Specs
![]() |
Part No Key
|
