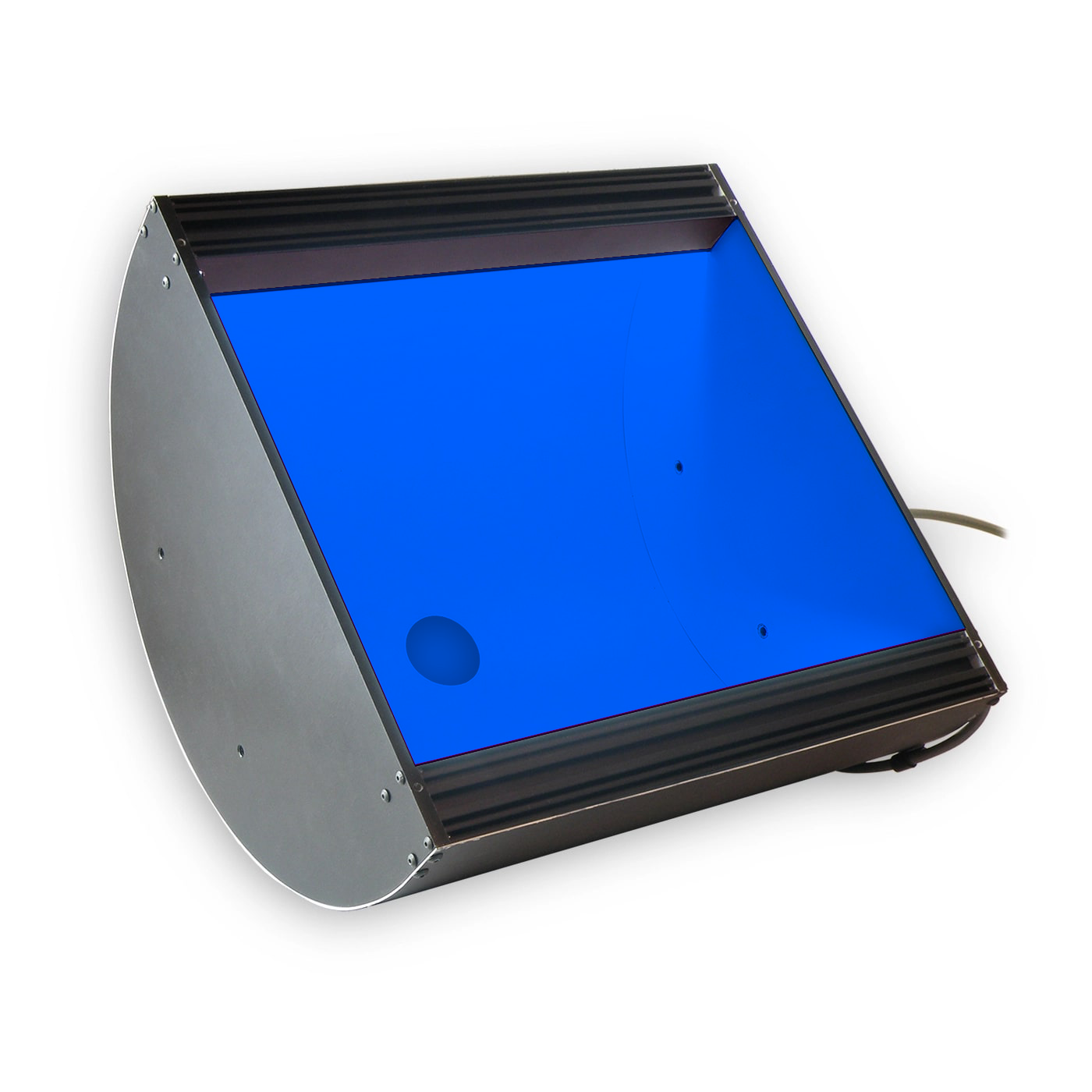

DL067A36 Wide Linear Diffuse Light, 36 in

Advanced IlluminationSKU: DL067A36-45524
Lead Time: 6 Weeks

Color: Royal Blue (455nm)
Driver: 24 Volt
Price:
Sale price$6,209.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

Wide Linear Diffuse Lights - DL Series

DL067A36 Specifications:

Brand Advanced Illumination
Series DL067
Wavelength VARIES
Color VARIES
Driver 24
Ingress Protection Not Rated
Length 36 in
Weight 5310g
Can Be Strobed No
Can Be Overdrive Strobed No
Can Be Constantly On Yes
Can Be Dimmed Not Dimmable
Connection 2M Flying Lead

Full Description

The Wide Linear Diffuse Light series is ideal for the inspection of elongated or cylindrical objects.

Perfect for inspections requiring a multi-camera setup.

Can be provided with up to 4 viewing ports.

Expandable lengths from 6� “ 36� (152 “ 194mm) in 6� increments.

General Specs

Electrical Specifications 0.65 A Per 6"
Normal Operating Temperature

0 - 60°C

Weight DL067X06: 1162g (41oz) (2.55lb)
DL067X12: 2608g (92oz) (5.75lb)
DL067X18: 4054g (143oz) (8.95lb)
DL067X24: 5500g (194oz) (12.15lb)
DL067X30: 6974g (246oz) (15.35lb)
DL067X36: 8420g (297oz) (18.55lb)
Standard Cable Information 2 m long -0/+150 mm (80" -0/+6") - 105°C RATED PVC JACKET, FOIL SHIELD WITH DRAIN.
Photobiological Risk Factor Exempt Applicable Wavelengths: 850, 940
Group 1 (Low Risk) Applicable Wavelengths: 455, 470, 505, 530, 590, 625, 660, 730, WHI
Compliance CE, RoHS, IEC 62471
IP Rating Not Rated
Lumen Maintenance L70 = 50,000 Hours



Available Wavelengths

Wavelength
Color
Description

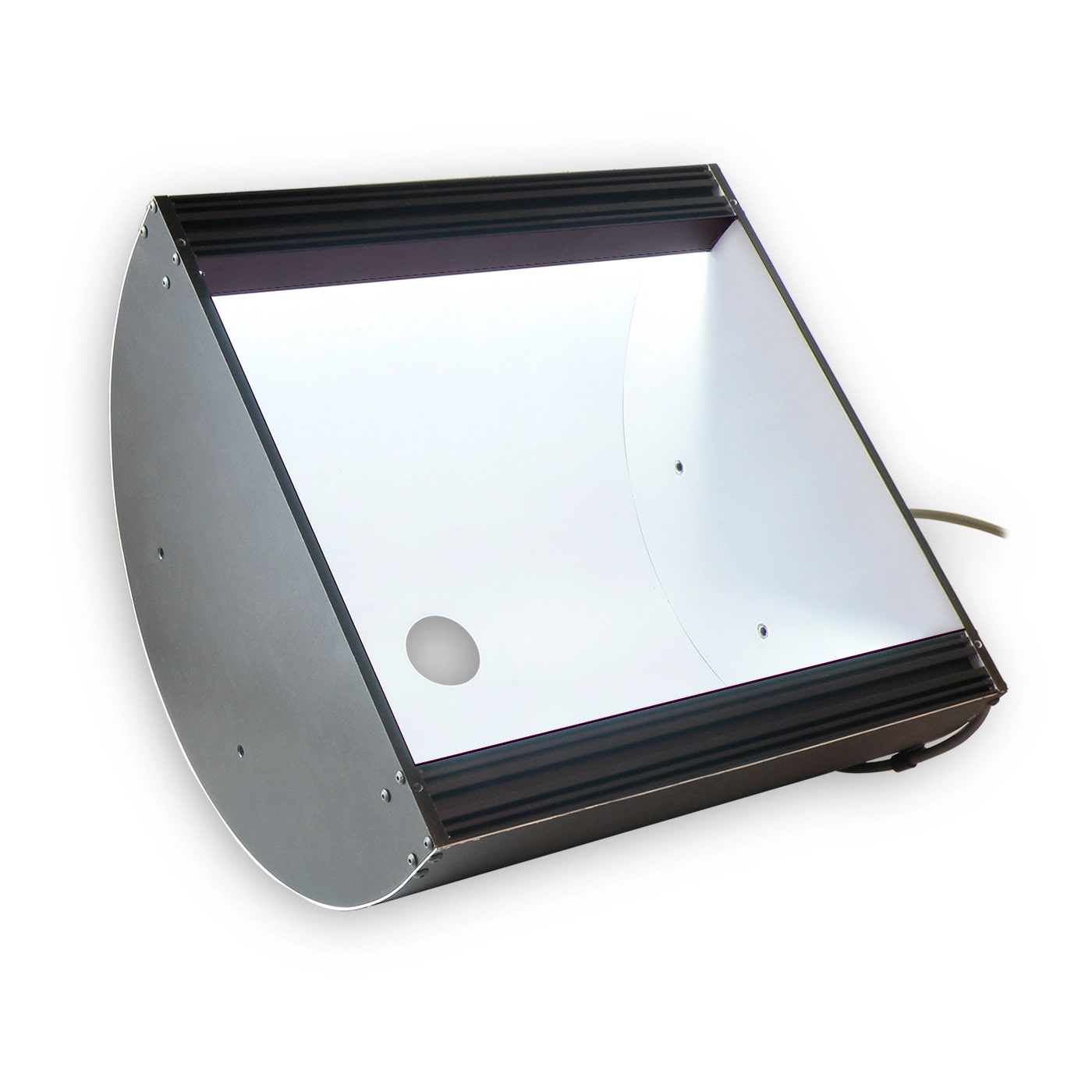

WHITE
Advanced Illumination White Lights
WHITE
455
455nm Royal Blue
470
Advanced Illumination 470nm Blue Light
470nm Blue
505
Advanced Illumination 505nm Cyan Light
505nm Cyan
530
Advanced Illumination 530nm Green Light
530nm Green
590

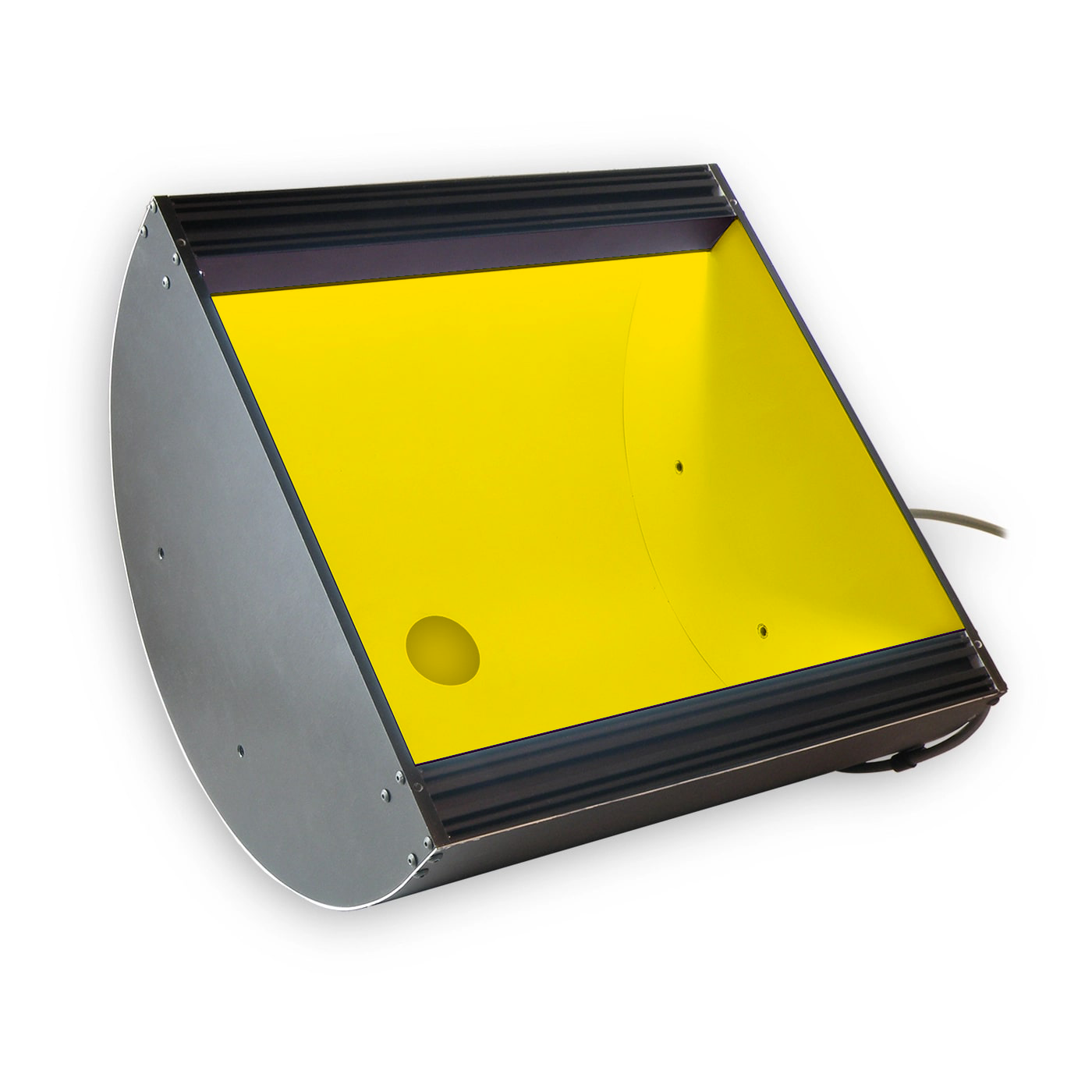

Advanced Illumination 590nm Amber Light
590nm Amber
625

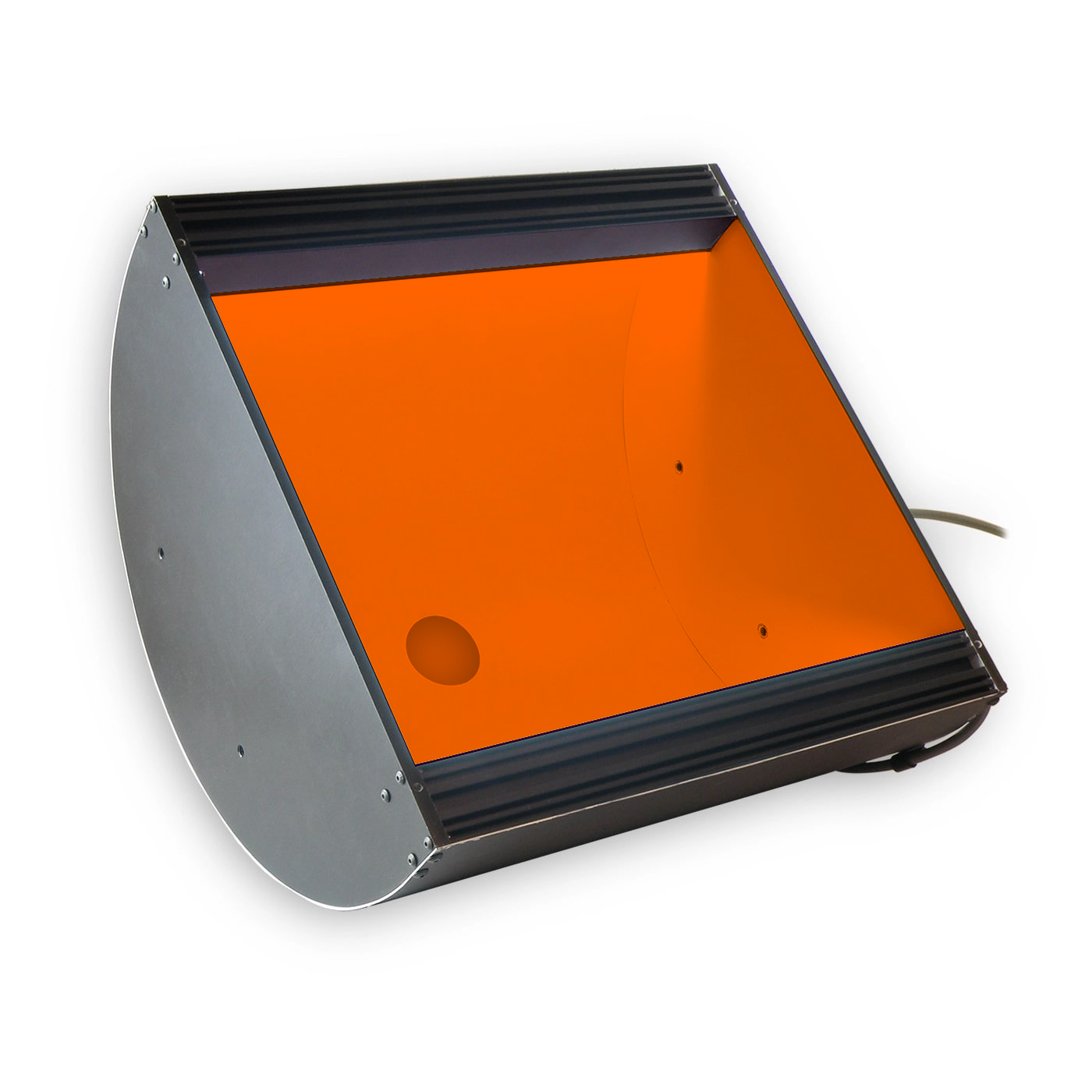

Advanced Illumination 625nm Red Orange Light
625nm Red Orange
660

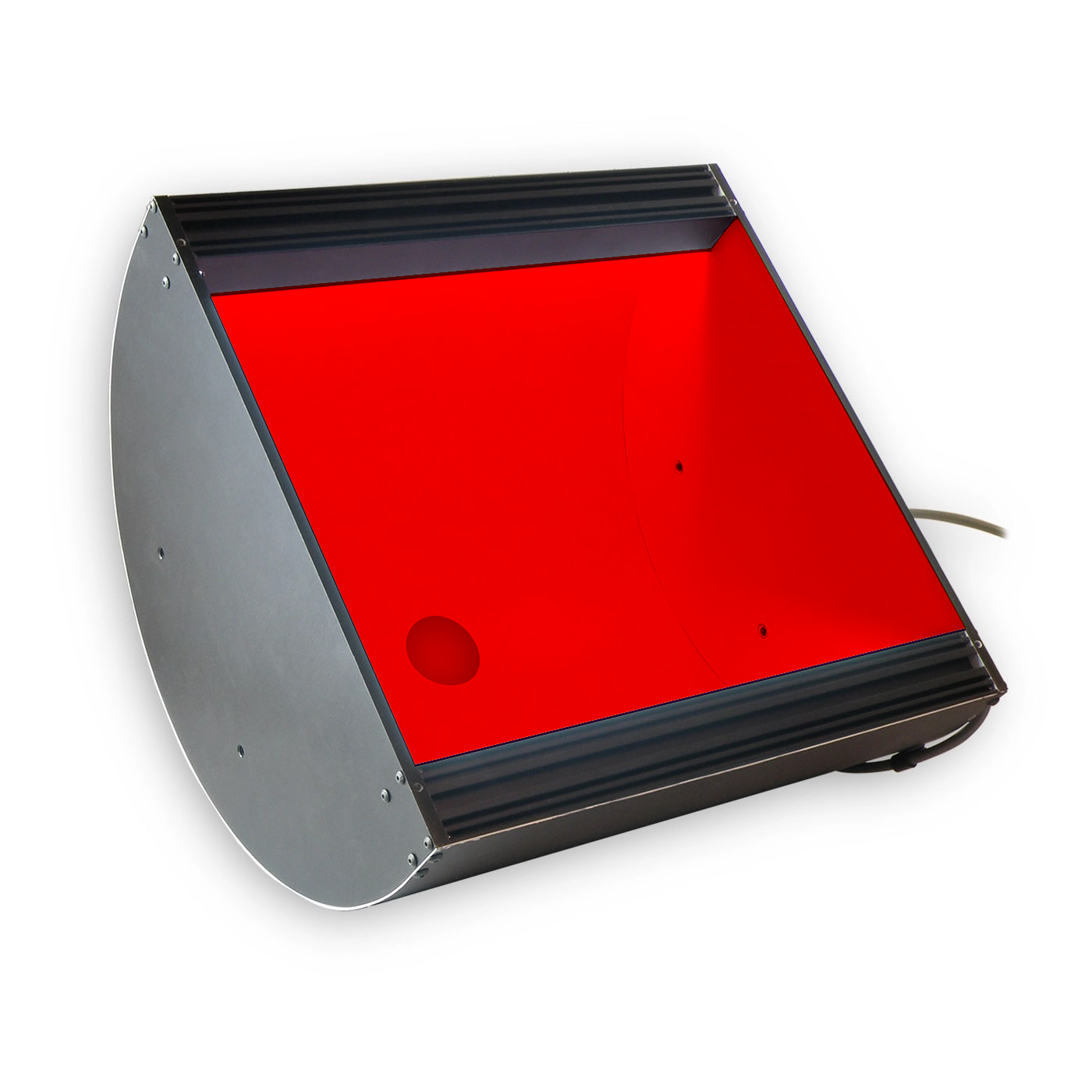

Advanced Illumination 660nm Red Light
660nm Red
730
Advanced Illumination 730nm Infra-Red (IR) Light
730nm Infra-Red (IR)
850

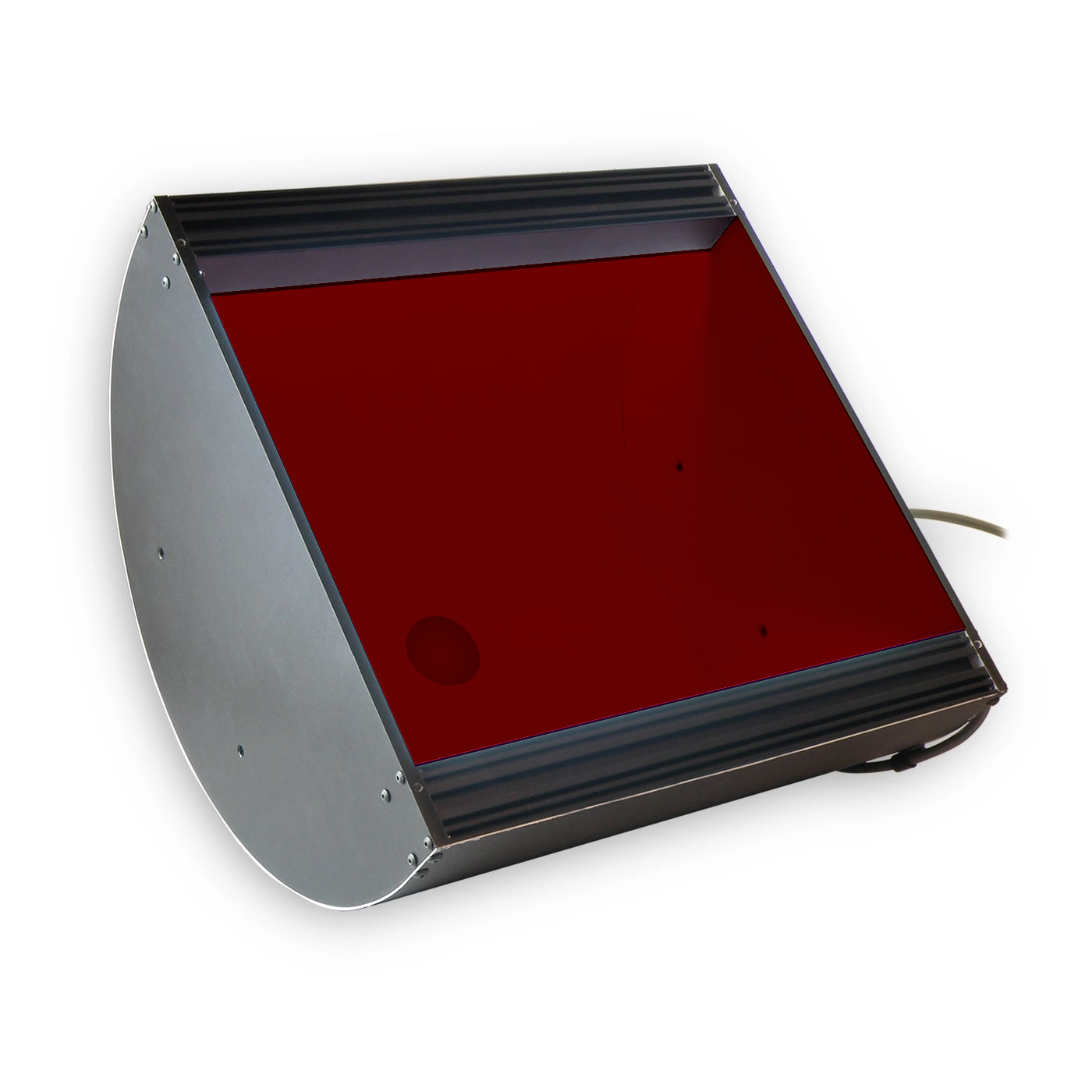

Advanced Illumination 850nm Infra-Red (IR) Light
850nm Infra-Red (IR)
940
Advanced Illumination 940nm Infra-Red (IR) Light
940nm Infra-Red (IR)

Additional Wavelengths are available upon request by contacting Machine Vision Direct.

Mechanical Specs

 DL067 Wide Linear Diffuse Lights | Advanced Illumination



 Optical Specs

 DL067 Wide Linear Diffuse Lights Optical Specs | Advanced Illumination
DL067 Wide Linear Diffuse Lights Optical Specs | Advanced Illumination


Electrical Specs

 DL067 Wide Linear Diffuse Lights Electrical Specs | Advanced Illumination


Control Specs

 DL067 Wide Linear Diffuse Lights Control Specs | Advanced Illumination

Part No Key

 DL067 Wide Linear Diffuse Lights Part No Key | Advanced Illumination

Advanced Illumination DL067A36 Downloads:

Advanced Illumination DL067A36 Datasheet | Machine Vision Direct
Advanced Illumination DL067A36 CAD PDF | Machine Vision Direct
Advanced Illumination DL067A36 CAD DXF | Machine Vision Direct
Advanced Illumination DL067A36 CAD STEP MODEL | Machine Vision Direct
