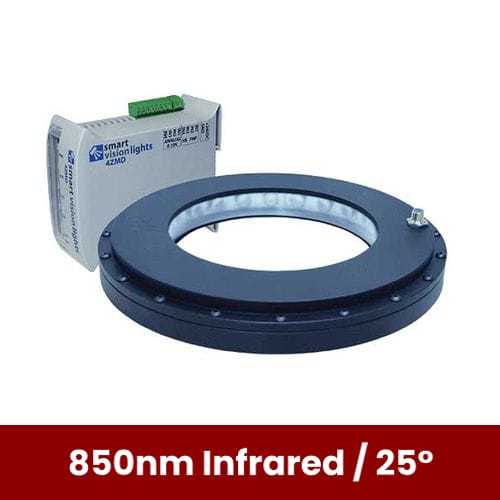

DFLW-200-4Z-850 | DFLW-200-4Z Dark Field Ring Light, 200mm, 850nm Infrared, 25 Degree Lens

Smart Vision LightsSKU: SVL DFLW-200-4Z-850
Lead Time: 3 Business Days

Price:
Sale price$1,950.00 USD

Shipping calculated at checkout

Downloads

Accessories

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us.

Description

The DFLW-200-4Z-850 photometric stereo dark field ring light from Smart Vision Lights is an IP68 rated Machine Vision Light appropriate for washdown applications such as food processing. With the integrated microlens film, it can be used at working distances of 25mm to 75mm with a uniform lighting pattern. This light includes SVL's 4ZMD external driver which allows for control of four individual sectors of the light, with individual operation in both constant-on and overcurrent strobe operation modes in one convenient light. This model has a 200mm aperture and is in the 850nm Infrared color. The DFLW series is available in White, 470nm Blue, 530nm Green, 625nm Red, 850nm IR, and 940nm IR color variants. Further customizations can be performed upon request from Machine Vision Direct.

The light features a 5 Pin M12 Male Connector on the end of the light. We recommend our 5PM12 series of cables (5PM12-5, 5PM12-10, or 5PM12-15).

The DFLW-200-4Z-850 can be mounted using the threaded holes on the back of the light.

Technical Specifications
