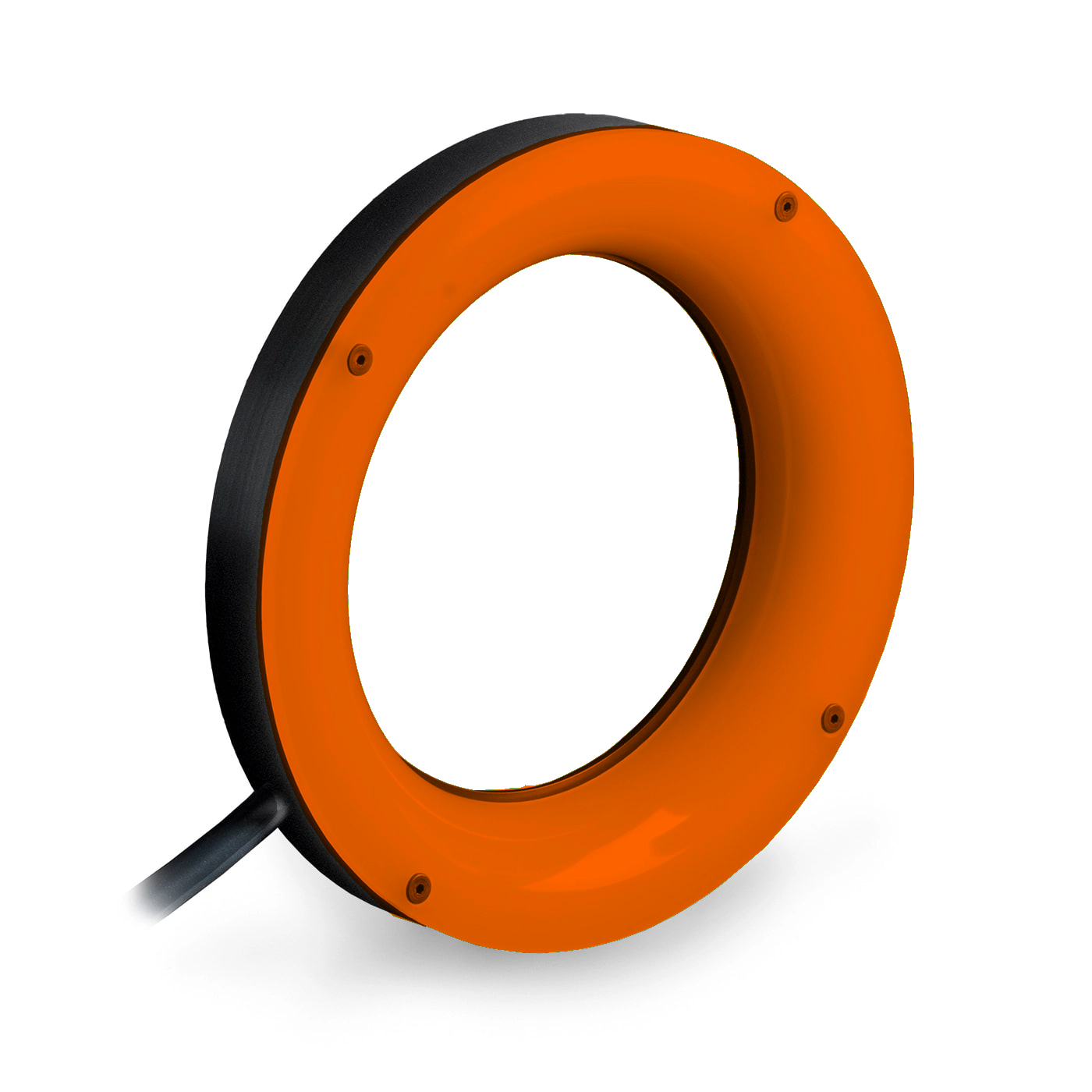

DF198-115625I3S MicroBrite Diffuse Ring Light, 625nm Red Orange, ICS 3S (I3S) Driver

Advanced IlluminationSKU: DF198-115625I3S
Lead Time: 2 Weeks

Price:
Sale price$1,098.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

MicroBrite Diffuse Ring Lights - DF Series

DF198-115625I3S Specifications:

Brand Advanced Illumination
Series DF198
Wavelength 625
Color Red Orange
Driver I3S
Ingress Protection IP40
Inner Diameter 74.8 mm
Outer Diameter 113.3 mm
Weight 249g
Can Be Strobed Yes
Can Be Overdrive Strobed Yes
Can Be Constantly On Yes
Can Be Dimmed Dimmable
Connection 2M Flying Lead

Full Description

Part of the MicroBrite„¢ family of high performance, compact machine vision lights.

Provides diffuse illumination at a low angle to cast shadows used to identify surface defects, embossed text, etc.

This ring light is more diffuse and less directional than the DF196.

Can be used to produce a bright field effect when the outer diameter is smaller than the working distance.

Available in 4 sizes with an intesity of 47klux (working distance of 64mm with DF198-180).

General Specs

Electrical Specifications 0.96A
Normal Operating Temperature

0 - 60°C

Weight DF198-050: 61.7g (2.18oz)
DF198-115: 128.8g (4.54oz)
DF198-180: 227.7g (8.03oz)
DF198-280: 358.3g (12.64oz)
Standard Cable Information 2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.
Photobiological Risk Factor Group 1 (Low-Risk) Applicable Wavelengths: 455, 530, 625, WHI, RGB
Compliance CE, RoHS, IEC 62471
IP Rating IP40
Lumen Maintenance L70 = 50,000 Hours



Available Wavelengths

Wavelength
Color
Description
WHITE
Advanced Illumination White Lights
WHITE
455
455nm Royal Blue
530
Advanced Illumination 530nm Green Light
530nm Green
625
Advanced Illumination 625nm Red Orange Light
625nm Red Orange

Additional Wavelengths are available upon request by contacting Machine Vision Direct.

Mechanical Specs

 DF198 MicroBrite Diffuse Ring Lights Mechanical Specs | Advanced IlluminationDF198 MicroBrite Diffuse Ring Lights Mechanical Specs | Advanced IlluminationDF198 MicroBrite Diffuse Ring Lights Mechanical Specs | Advanced IlluminationDF198 MicroBrite Diffuse Ring Lights Mechanical Specs | Advanced Illumination


 Optical Specs

 DF198 MicroBrite Diffuse Ring Lights Optical Specs | Advanced IlluminationDF198 MicroBrite Diffuse Ring Lights Optical Specs | Advanced Illumination

Electrical Specs

 DF198 MicroBrite Diffuse Ring Lights Electrical Specs | Advanced Illumination


Control Specs

 DF198 MicroBrite Diffuse Ring Lights Control Specs | Advanced Illumination

Part No Key

 DF198 MicroBrite Diffuse Ring Lights Part No Key | Advanced Illumination

Advanced Illumination DF198-115625I3S Downloads:

Advanced Illumination DF198-115625I3S Datasheet | Machine Vision Direct
Advanced Illumination DF198-115625I3S CAD PDF | Machine Vision Direct
Advanced Illumination DF198-115625I3S CAD DXF | Machine Vision Direct
Advanced Illumination DF198-115625I3S CAD STEP MODEL | Machine Vision Direct
