Description

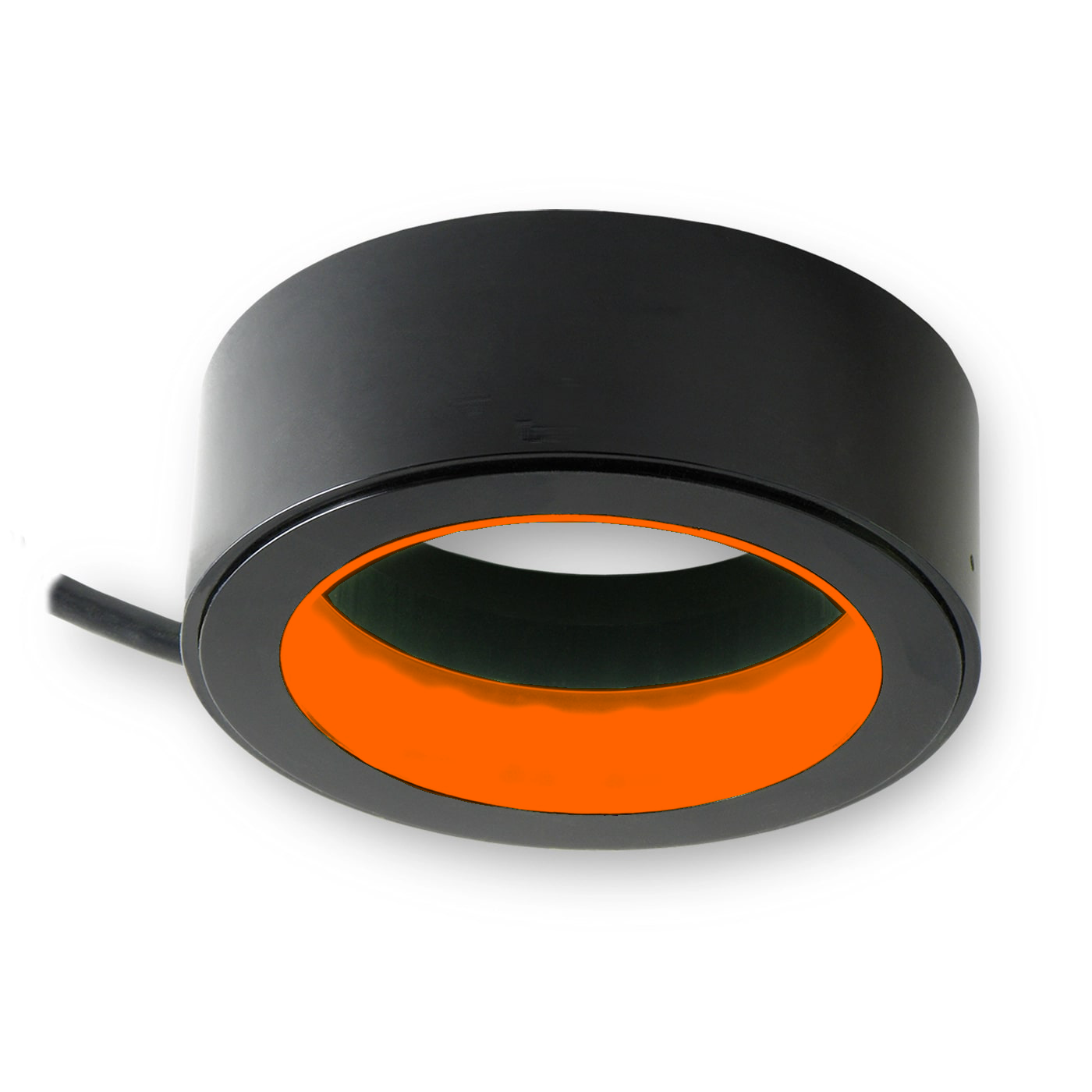

MicroBrite Direct Dark Field Lights - DF Series
DF196-10062524 Specifications:
Brand | Advanced Illumination |
Series | DF196 |
Wavelength | 625 |
Color | Red Orange |
Driver | 24 |
Ingress Protection | IP40 |
Inner Diameter | 73.0 mm |
Outer Diameter | 100.0 mm |
Weight | 392g |
Can Be Strobed | No |
Can Be Overdrive Strobed | No |
Can Be Constantly On | Yes |
Can Be Dimmed | Not Dimmable |
Connection | 2M Flying Lead |
Full Description
Part of the MicroBrite„¢ family of high performance, compact machine vision lights.
Our DF196 Series delivers direct illumination at a low angle to cast shadows used to identify surface defects, embossed text, etc.
This dark field ring light is more directional and less diffuse than the DF198.
Available in 4 sizes with an intesity of 72kLux (working distance of 25mm with DF196-100)
General Specs
Electrical Specifications | 1.25 A |
Normal Operating Temperature |
0 - 60°C |
Weight |
DF196-050: 83.9g (2.96oz) DF196-100: 263.1g (9.3oz) DF196-180: 521.6g (18.4oz) DF196-280: 780.2g (27.5oz) |
Standard Cable Information | 2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain. |
Photobiological Risk Factor | Group 1 (Low Risk) Applicable Wavelengths: 455, 530, 625, RGB, WHI |
Compliance | CE, RoHS, IEC 62471 |
IP Rating | IP40 |
Lumen Maintenance | L70 = 50,000 Hours |
Available Wavelengths
Wavelength |
Color |
Description |
WHITE |
WHITE |
|
455 |
455nm Blue |
|
530 |
530nm Green |
|
625 |
625nm Red |
Mechanical Specs
Optical Specs
Electrical Specs
Control Specs
Part No Key
