DF196-100 MicroBrite Direct Dark Field Light

Advanced IlluminationSKU: DF196-10045524
Lead Time: 2 Weeks

Color: Royal Blue (455nm)
Driver: 24 Volt
Price:
Sale price$1,249.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

MicroBrite Direct Dark Field Lights - DF Series

DF196-100 Specifications:

Brand Advanced Illumination
Series DF196
Wavelength VARIES
Color VARIES
Driver 24
Ingress Protection IP40
Inner Diameter 73.0 mm
Outer Diameter 100.0 mm
Weight 392g
Can Be Strobed No
Can Be Overdrive Strobed No
Can Be Constantly On Yes
Can Be Dimmed Not Dimmable
Connection 2M Flying Lead

Full Description

Part of the MicroBrite„¢ family of high performance, compact machine vision lights.

Our DF196 Series delivers direct illumination at a low angle to cast shadows used to identify surface defects, embossed text, etc.

This dark field ring light is more directional and less diffuse than the DF198.

Available in 4 sizes with an intesity of 72kLux (working distance of 25mm with DF196-100)

General Specs

Electrical Specifications 1.25 A
Normal Operating Temperature

0 - 60°C

Weight DF196-050: 83.9g (2.96oz)
DF196-100: 263.1g (9.3oz)
DF196-180: 521.6g (18.4oz)
DF196-280: 780.2g (27.5oz)
Standard Cable Information 2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.
Photobiological Risk Factor Group 1 (Low Risk) Applicable Wavelengths: 455, 530, 625, RGB, WHI
Compliance CE, RoHS, IEC 62471
IP Rating IP40
Lumen Maintenance L70 = 50,000 Hours



Available Wavelengths

Wavelength
Color
Description

WHITE

EFFILUX 000nm White Machine Vision Light Color

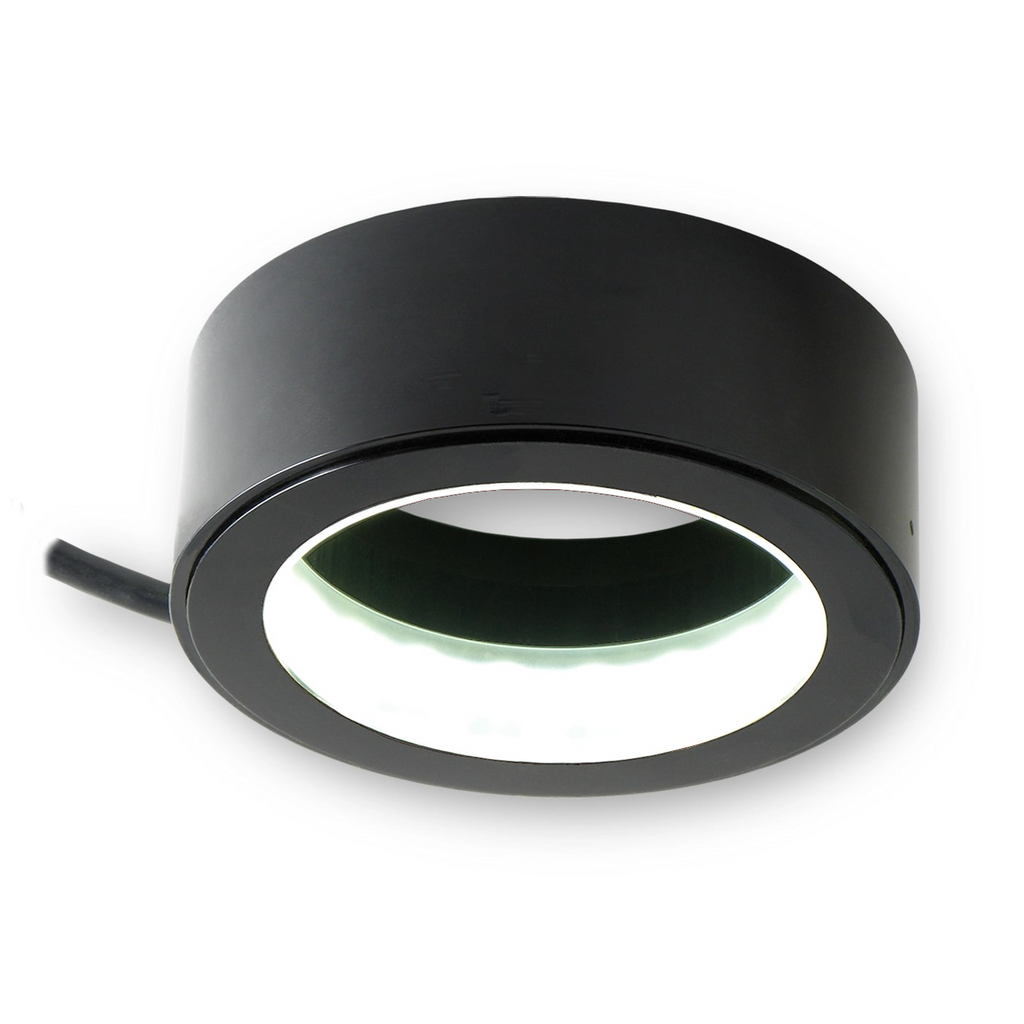

WHITE

455

EFFILUX 465nm Blue Machine Vision Light Color

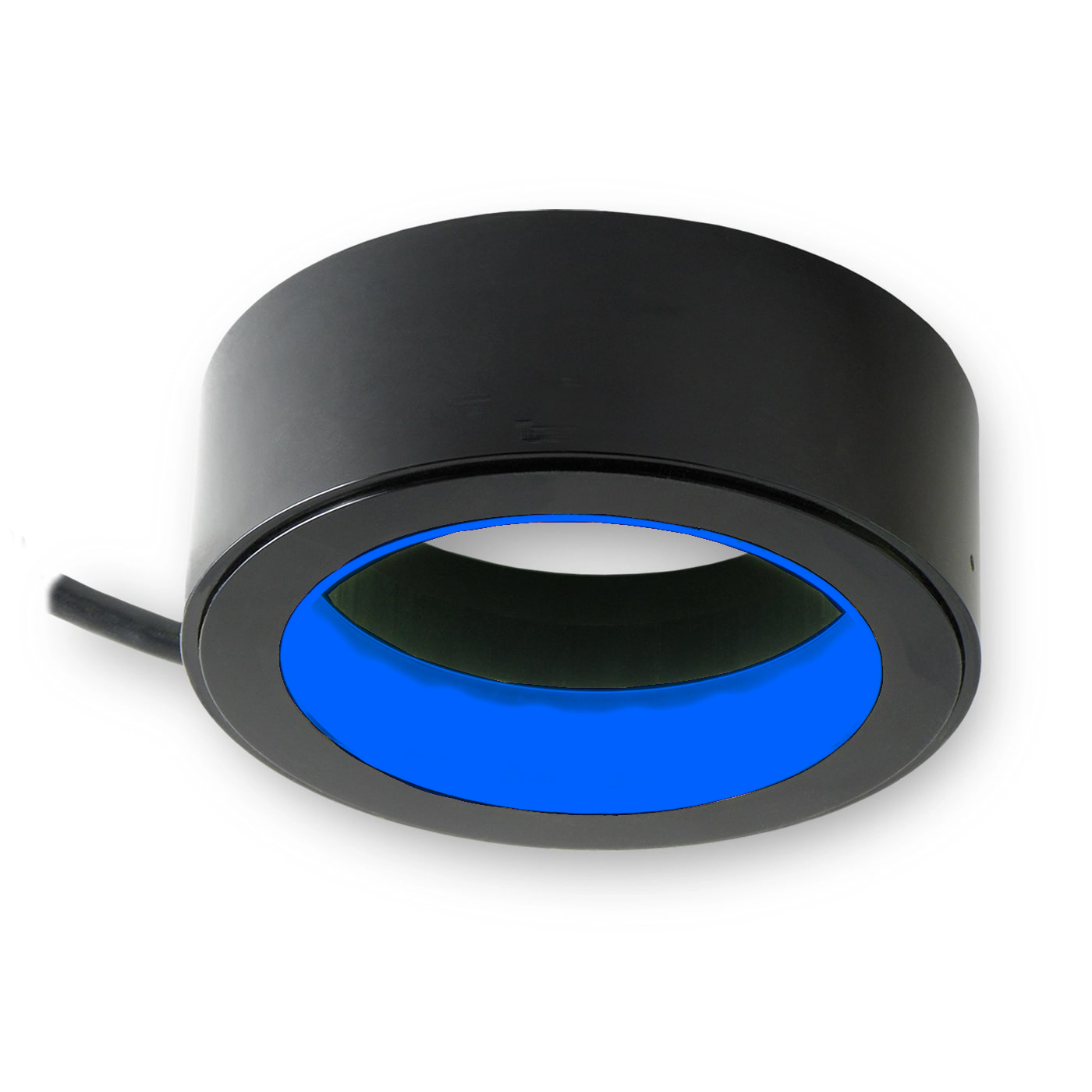

455nm Blue

530

EFFILUX 525nm Green Machine Vision Light Color

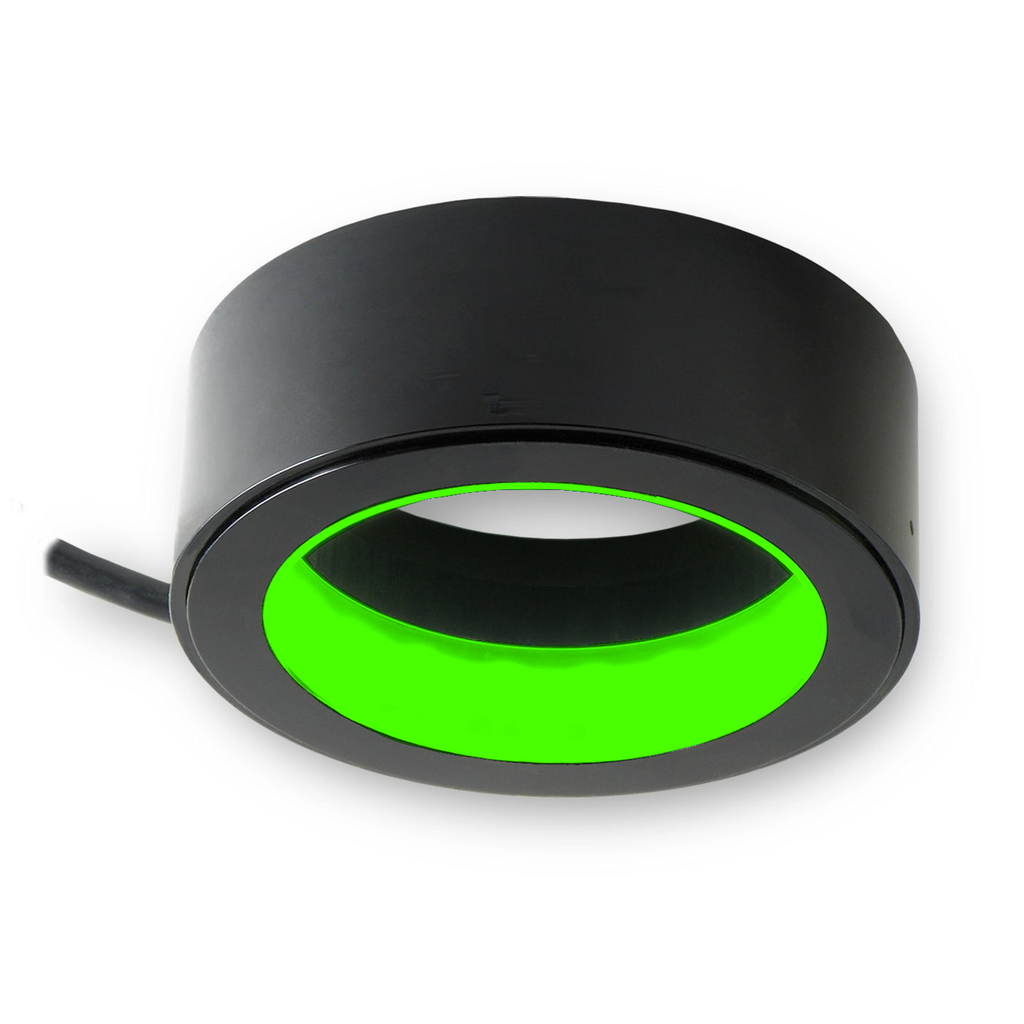

530nm Green

625

EFFILUX 625nm Red Machine Vision Light Color

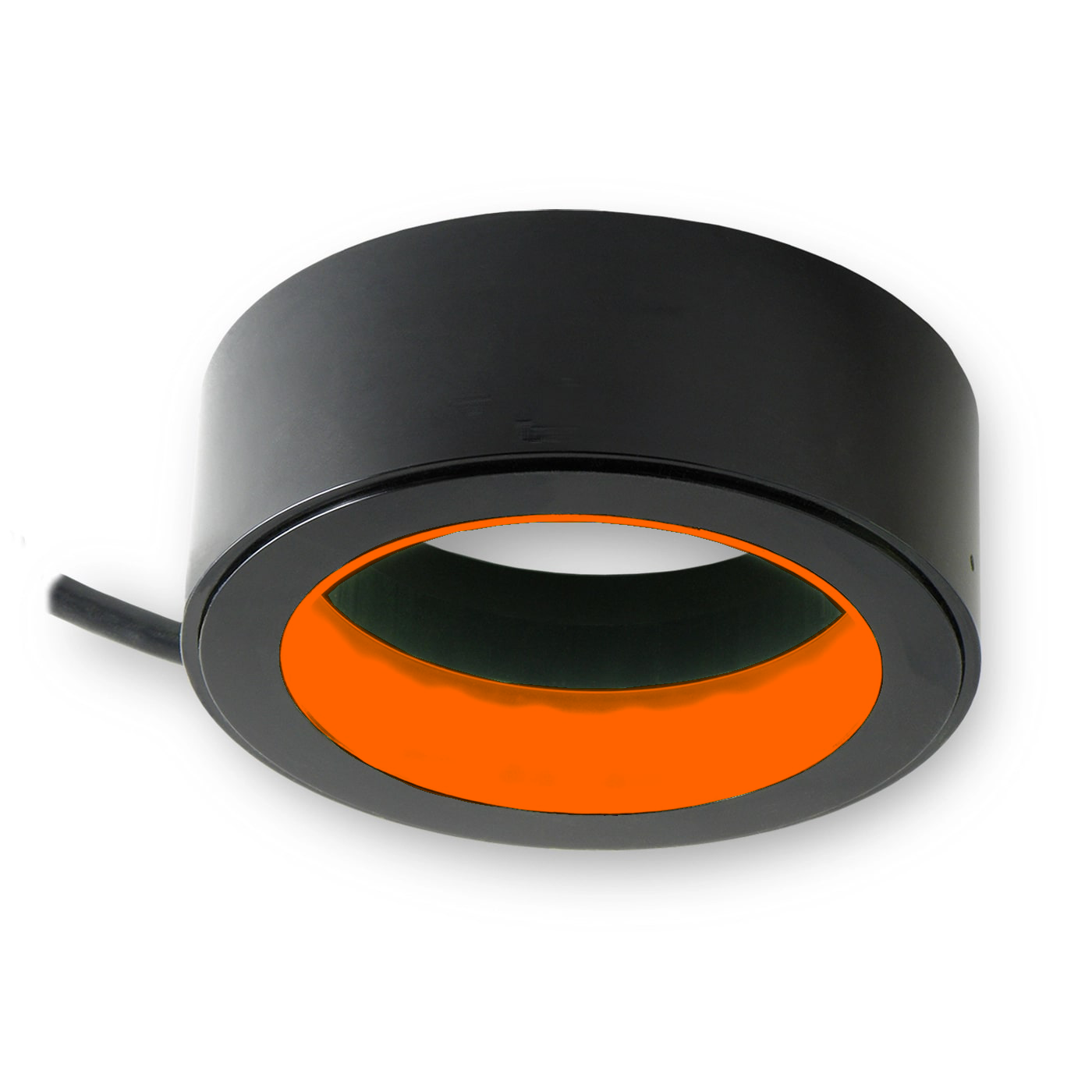

625nm Red



Mechanical Specs

 DF196 MicroBrite Direct Dark Field Light Mechanical Specs | Advanced IlluminationDF196 MicroBrite Direct Dark Field Light Mechanical Specs | Advanced IlluminationDF196 MicroBrite Direct Dark Field Light Mechanical Specs | Advanced IlluminationDF196 MicroBrite Direct Dark Field Light Mechanical Specs | Advanced Illumination


 Optical Specs

 DF196 MicroBrite Direct Dark Field Light Optical Specs | Advanced IlluminationDF196 MicroBrite Direct Dark Field Light Optical Specs | Advanced Illumination

Electrical Specs

 DF196 MicroBrite Direct Dark Field Light Electrical Specs | Advanced Illumination


Control Specs

 DF196 MicroBrite Direct Dark Field Light Control Specs | Advanced Illumination

Part No Key

 DF196 MicroBrite Direct Dark Field Light Part No Key | Advanced Illumination

Advanced Illumination DF196-100 Downloads:

Advanced Illumination DF196-100 Datasheet | Machine Vision Direct
Advanced Illumination DF196-100 CAD PDF | Machine Vision Direct
Advanced Illumination DF196-100 CAD DXF | Machine Vision Direct
Advanced Illumination DF196-100 CAD STEP MODEL | Machine Vision Direct
