Triple Output Controller - DCS Series

Full Description

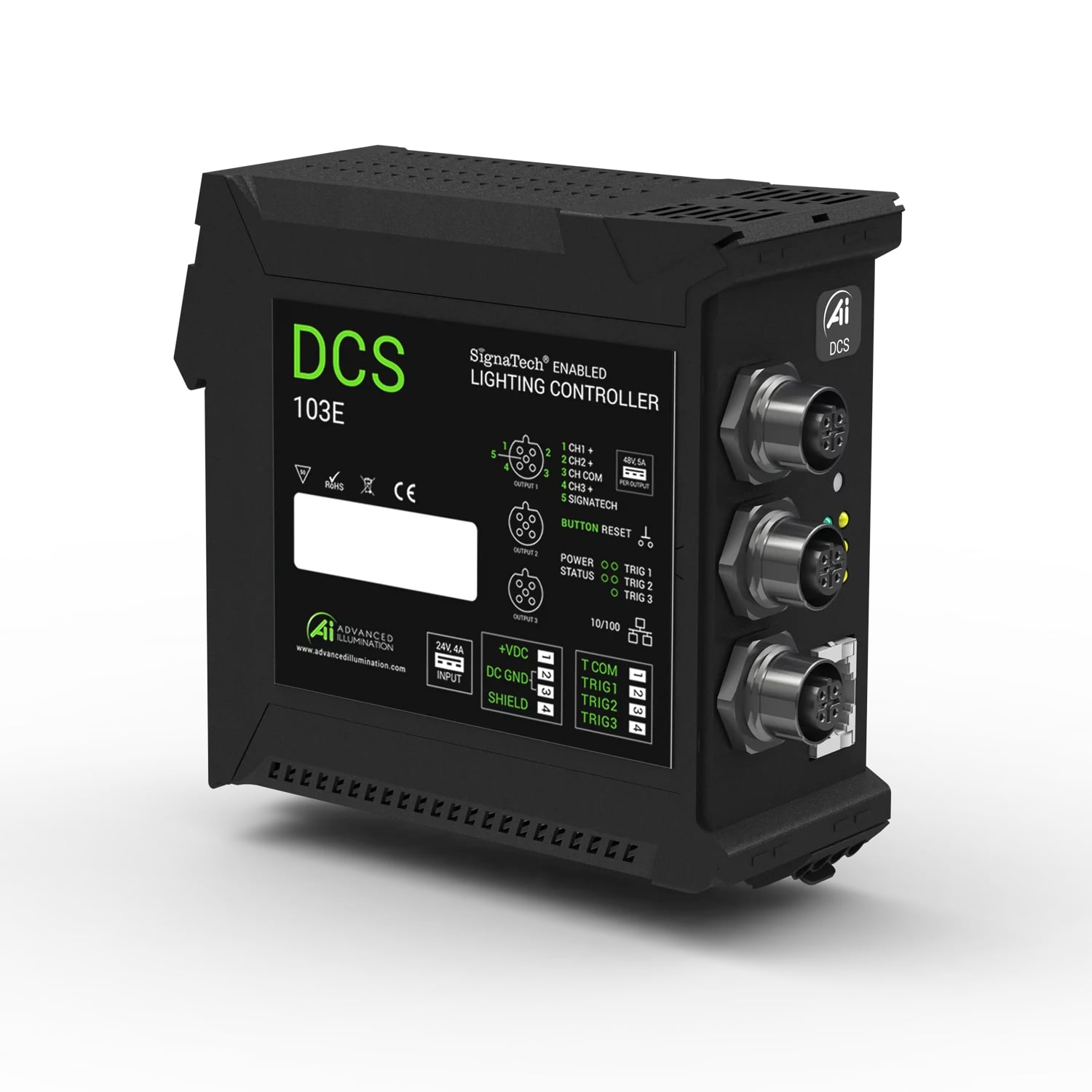

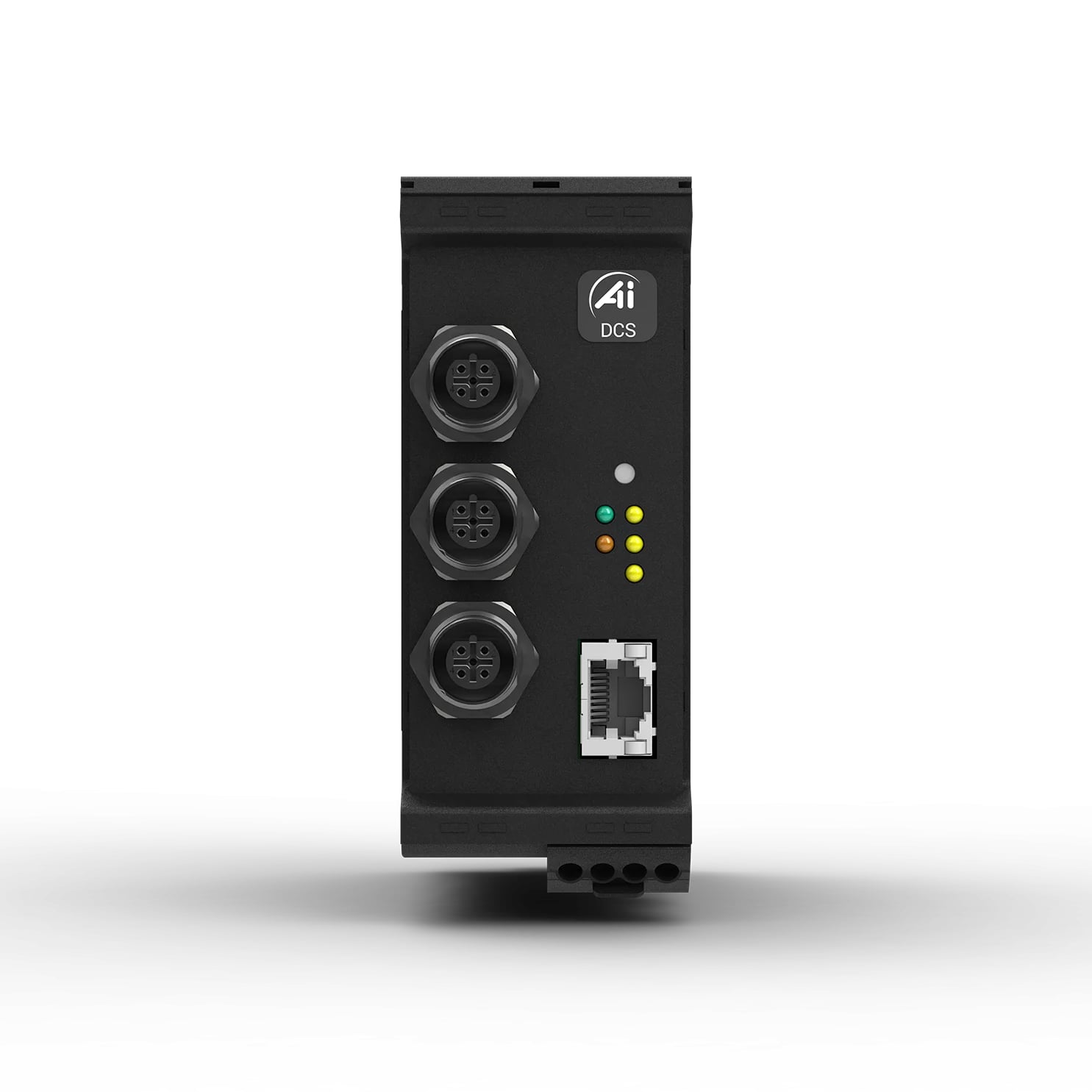

This DCS Series Controller provides Lighting Control Flexibility in a compact 112 mm x 124 mm x 46 mm package.

Plug-n-Play compatibility with Ai lighting Products, featuring SignaTech™ technology.

Seamless switching from continuous-on to gated on/off and strobe overdrive; 3 independently configurable trigger inputs.

Din-rail mount, UL 508a Panel listed and GUI, Web Browser or command line setup and control tools, SDK.

3 Independent Outputs – designed to up to 3 lights, synchronously or asynchronously.

General Specs

Controller Style
Discrete Control System (External, Detachable)

User Interface

Software GUI, Web Browser

Operating Modes Sequence, Pulse (Overdrive Strobe), Continuous
Light Head Connection Via B-coded 5-pin Male M12 with Embedded EEPROM on Light Head Cable (C1)

Input Supply Requirements

24V DC Nominal, 4.5A Recommended
21V Min - 48V Max; Power Inputs Reverse-Polarity Protected
Output Channels Number of Outputs: 3
Number of Channels per Output: 1
Output Power Continuous: 90W Max Total, 30W per Channel*
Pulsed: 540W Peak Total, 180W Peak per Channel*
Output Current Continuous: 4.5A Max Total, 1.5A per Channel*
Pulsed: 15A Max Total, 5A per Channel*
Output Voltage Continuous: Vin - 1V, Channel Independent
Pulsed: 36V Max*, Channel Independent
Trigger Signal 5V Min - 30V Max, <=5mA
Trigger Protection Opto-Isolated Inputs, 30V Max
Trigger Delay 20μs + 10us LED rise-time
Trigger Frequency Limit

2KHz

Pulse Width Range 30μs - 65ms
Programmable Pulse Delay

1μs - 10ms

Duty Cycle Range

Typical <1% for high current overdrive, up to 15%
Dependent on the limitations of the connected light.
Dimming Range 0% - 100%, 1mA Increments via Software Settings
Status Indicator LEDs Green: Power
Yellow: Communication
Red: Error
Communication 10/100 Ethernet Standard TCP-IP, UDP
.NET Library Compatible w/ C#, F# and VB
Operating System Software Support

GUI: Windows 7+ (requires .NET Framework 4.5+)

Operating Temperature Range

0°C to +40 °C

Storage Temperature Range

-25°C to +85 °C

IP Rating Not Rated
Dimensions 4.86" x 0.89" x 4.41" (123.3mm x 22.5mm x 111.2mm)
Weight 0.612lb (278g)
Mounting DIN Rail
Case Material Polyamide
Warranty 5 Years
Compliance CE, RoHS


Mechanical Specs

 DCS-103E Triple Output Controller Mechanical Specs | Advanced IlluminationDCS-103E Triple Output Controller Mechanical Specs | Advanced Illumination


Electrical Specs

 DCS-103E Triple Output Controller Electrical Specs | Advanced Illumination

Part No Key

 DCS-103E Triple Output Controller Part No Key | Advanced Illumination
