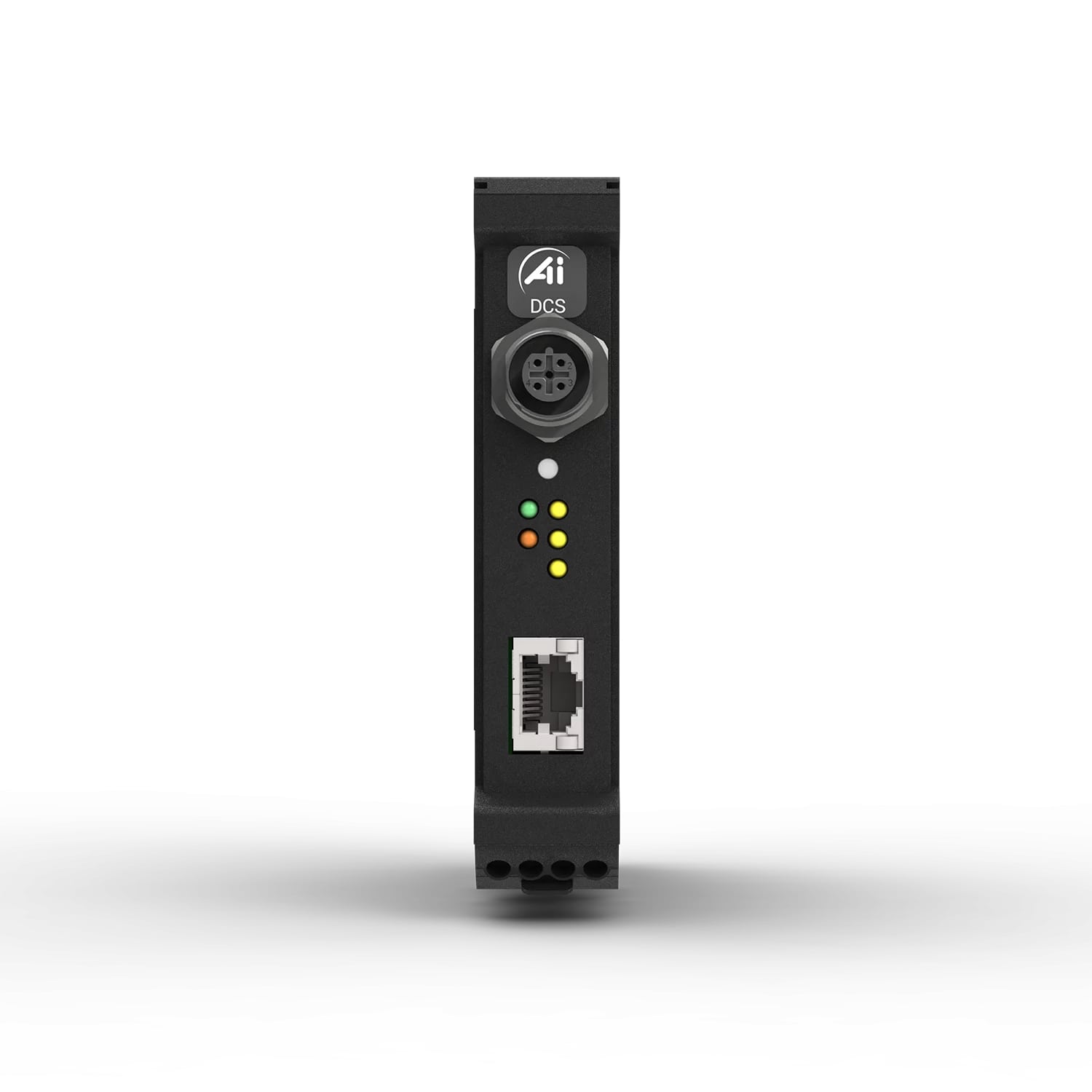

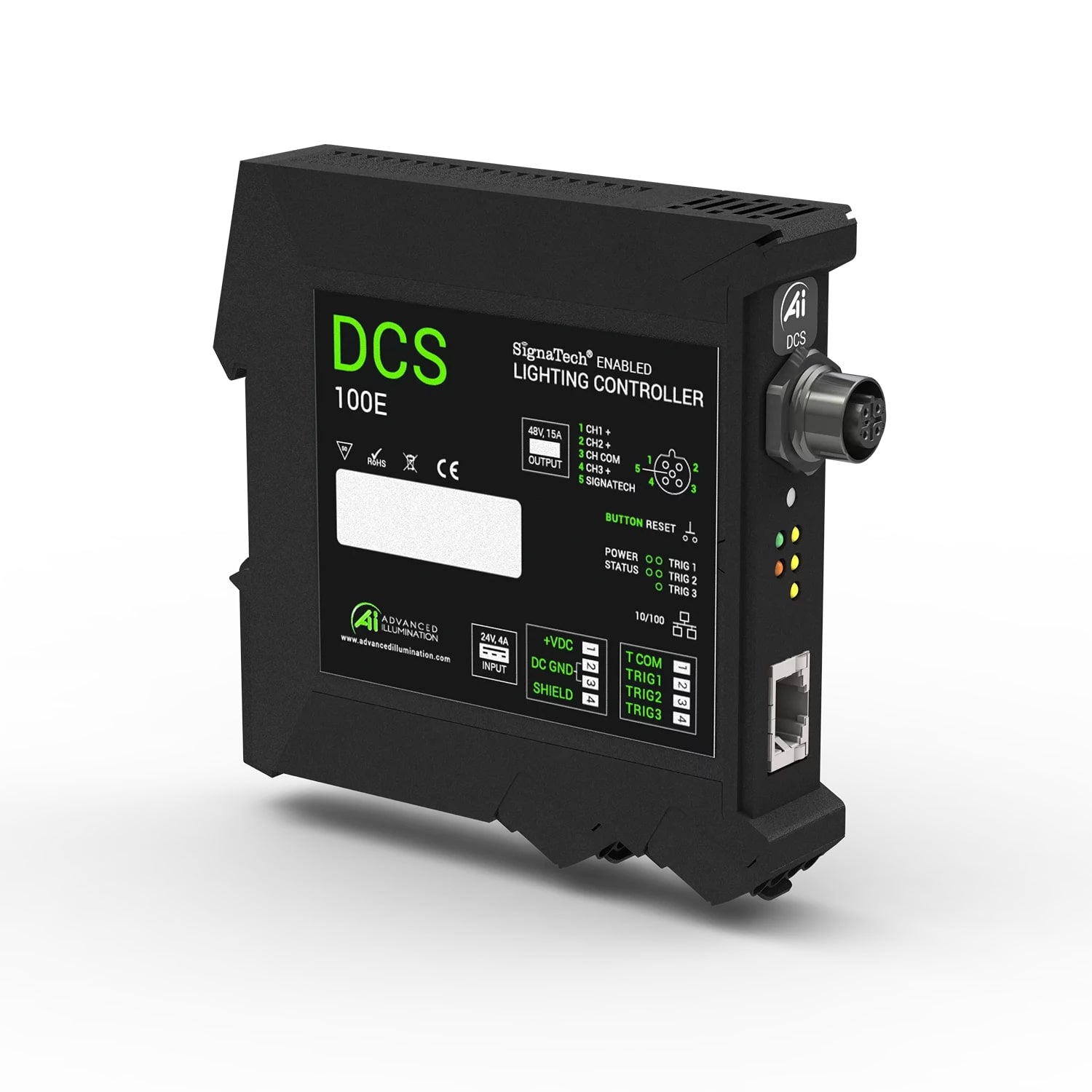

Single Output Controller - DCS Series

Full Description

This DCS Series Controller provides Lighting Control Flexibility in a slim 112 mm x 124 mm x 23 mm package.

Plug-n-Play compatibility with Ai lighting Products, featuring SignaTech™ technology.

Seamless switching from continuous-on to gated on/off and strobe overdrive; 3 independently configurable trigger inputs.

Din-rail mount, UL 508a Panel listed and GUI, Web Browser or command line setup and control tools, SDK.

1 output, 3 channels – designed to drive multi-channel RGB / segment lights, as well as single higher current draw lights.

General Specs

Controller Style
Discrete Control System (External, Detachable)

User Interface

Software GUI, Web Browser

Operating Modes Sequence, Pulse (Overdrive Strobe), Continuous
Light Head Connection Via Proprietary 2 x 8-Post Header Blocks with Embedded EEPROM on Light Head Cable (Q1 or Q4)**

Input Supply Requirements

24V DC Nominal, 4.5A Recommended
21V Min - 48V Max; Power Inputs Reverse-Polarity Protected
Output Channels Number of Outputs: 1
Number of Channels per Output: 3
Output Power Continuous: 90W Max Total, 30W per Channel*
Pulsed: 540W Peak Total, 180W Peak per Channel*
Output Current Continuous: 4.5A Max Total, 1.5A per Channel*
Pulsed: 15A Max Total, 5A per Channel*
Output Voltage Continuous: Vin - 1V, Channel Independent
Pulsed: 36V Max*, Channel Independent
Trigger Signal TTL Compatible
3.7V Min - 30V Max, <=5mA
Trigger Protection Opto-Isolated Inputs, 30V Max
Trigger Delay 20μs + 10us LED rise-time
Trigger Frequency Limit

2KHz

Pulse Width Range 30μs - 65ms
Programmable Pulse Delay

1μs - 10ms

Duty Cycle Range

Typical <1% for high current overdrive, up to 15%
Dependent on the limitations of the connected light.
Dimming Range 0% - 100%, 1mA Increments via Software Settings
Status Indicator LEDs Green: Power
Yellow: Communication
Red: Error
Communication 10/100 Ethernet Standard TCP-IP, UDP
.NET Library Compatible w/ C#, F# and VB
Operating System Software Support

GUI: Windows 7+ (requires .NET Framework 4.5+)

Operating Temperature Range

0°C to +55 °C

Storage Temperature Range

-25°C to +85 °C

IP Rating Not Rated
Dimensions 4.86" x 0.89" x 4.41" (123.3mm x 22.5mm x 111.2mm)
Weight 0.612lb (278g)
Mounting DIN Rail
Case Material Polyamide
Warranty 5 Years
Compliance CE, RoHS


Mechanical Specs

 DCS-100E Single Output Controller Mechanical Specs | Advanced IlluminationDCS-100E Single Output Controller Mechanical Specs | Advanced Illumination


Electrical Specs

 DCS-100E Single Output Controller Electrical Specs | Advanced Illumination

Part No Key

 DCS-100E Single Output Controller Part No Key | Advanced Illumination
